suitable boards - ESP32-S3-board-VCC-dat - ESP32-S3-board-WV-dat - ESP32-S3-board-dat

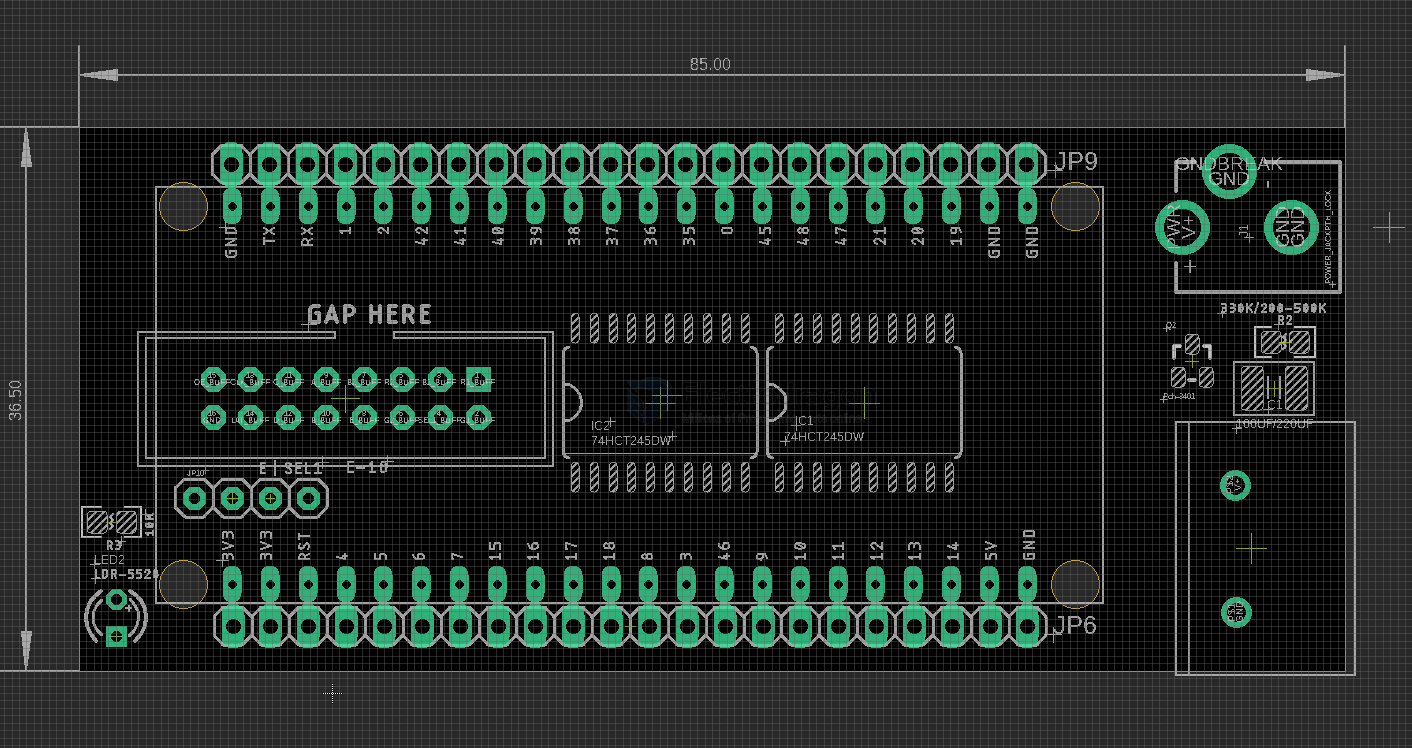

board map

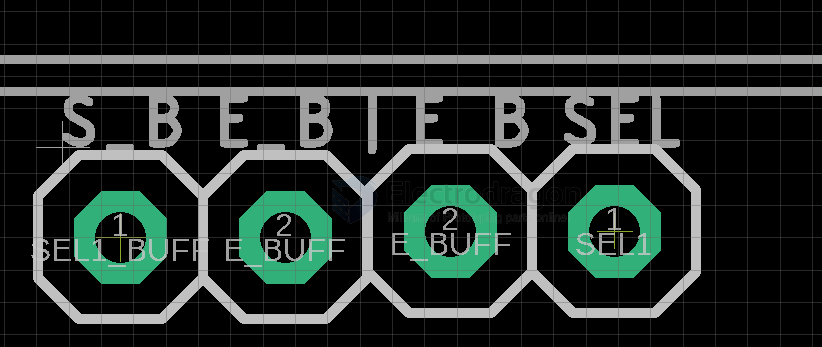

E_BUFF(mid two pins) to SEL1_BUFF or SEL1

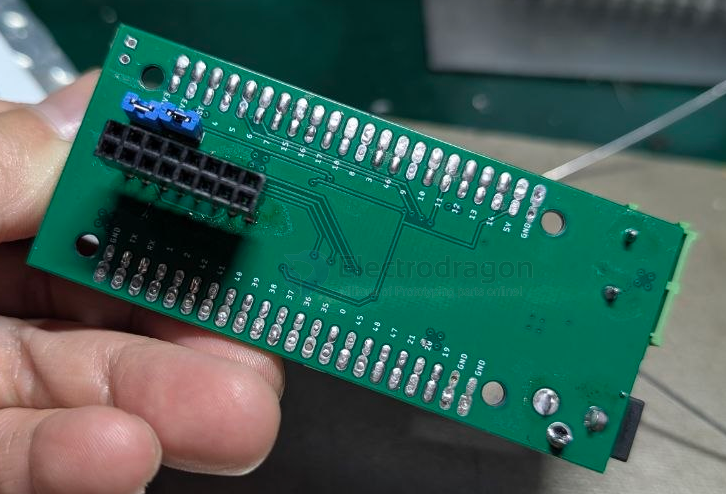

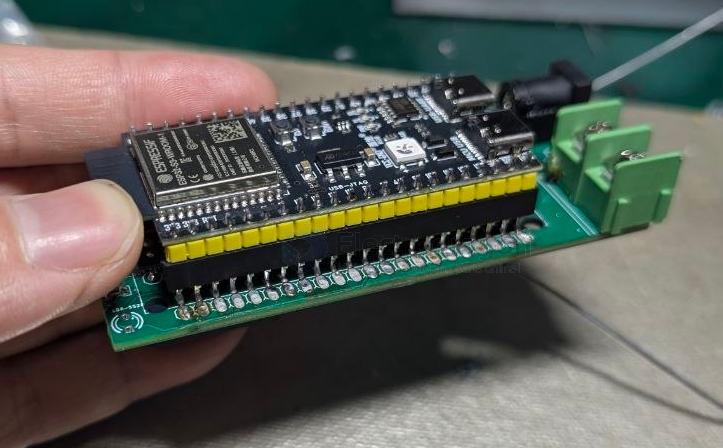

prototype board
default pin for ESP32-S3
https://github.com/mrfaptastic/ESP32-HUB75-MatrixPanel-I2S-DMA
#include <ESP32-HUB75-MatrixPanel-I2S-DMA.h>
use default pin definitions from - libraries\ESP32_HUB75_LED_MATRIX_PANEL_DMA_Display\esp32s3-default-pins.hpp
#define R1_PIN_DEFAULT 4
#define G1_PIN_DEFAULT 5
#define B1_PIN_DEFAULT 6
#define R2_PIN_DEFAULT 7
#define G2_PIN_DEFAULT 15
#define B2_PIN_DEFAULT 16
#define A_PIN_DEFAULT 18
#define B_PIN_DEFAULT 8
#define C_PIN_DEFAULT 3
#define D_PIN_DEFAULT 42
#define E_PIN_DEFAULT -1 // required for 1/32 scan panels, like 64x64. Any available pin would do, i.e. IO32
#define LAT_PIN_DEFAULT 40
#define OE_PIN_DEFAULT 2
#define CLK_PIN_DEFAULT 41
in which E_PIN_DEFAULT optionally connect by 3-way-jumper to IO17 or IO46

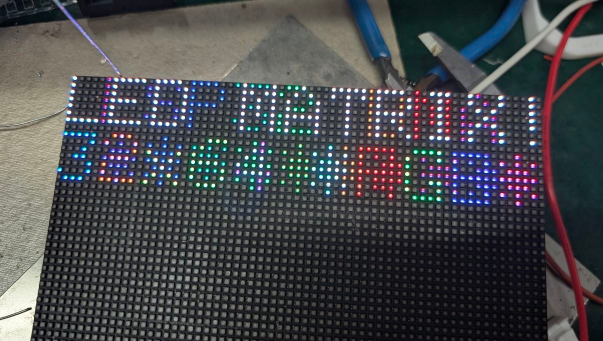

64x64 test
test chip DP5125 / MV245B

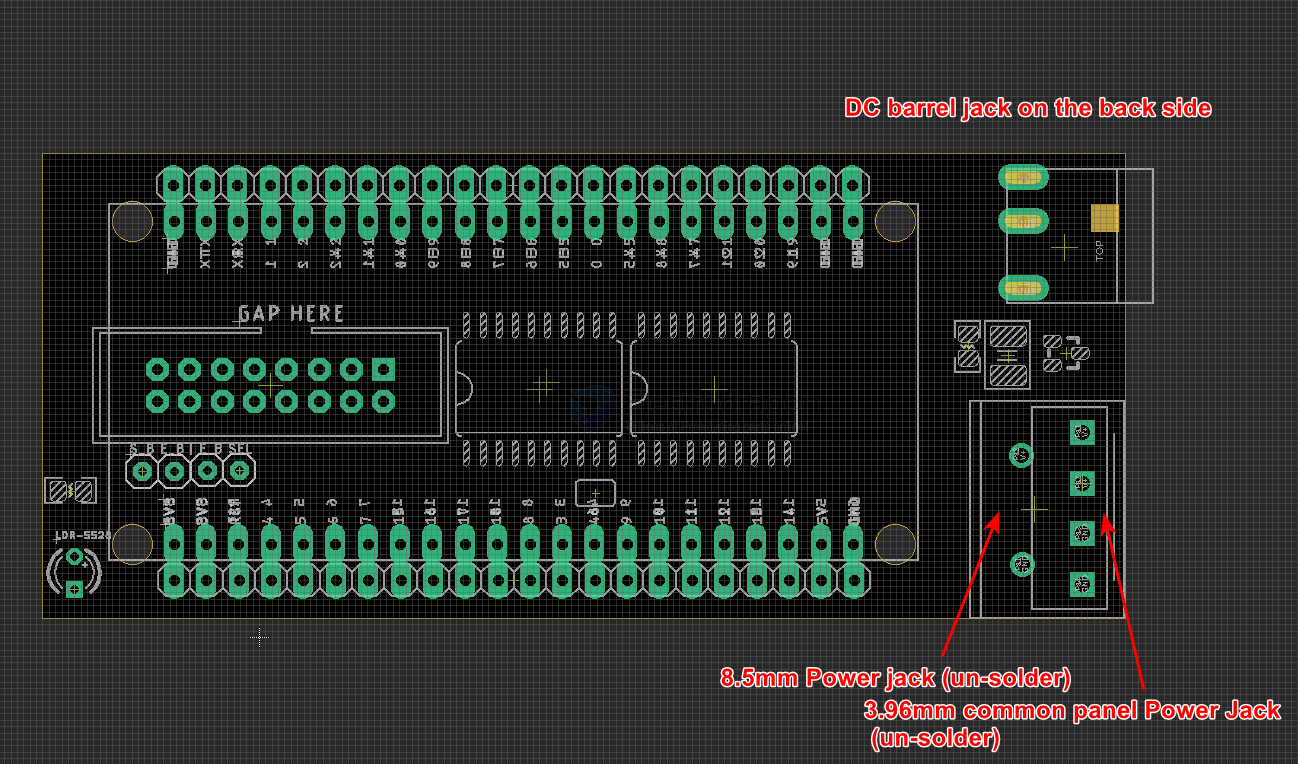

update log
v1.1
- conn-pin-header-dat user higher 8.5mm pin header instead of 5.8mm header
- CONN-DC-barrel-jack-dat = use lower version to fit on the back side
- 8.5mm power connector, leave to un-solder
- add 3.96mm power connector, leave to un-solder (undefined yet)
