dupont pin headers
MX1.25 = 1.25mm pitch
- ZH1.5 = 1.5mm pitch
- PH2.0 = 2.0mm pitch
- XH2.54 = 2.54mm pitch
Connector_PinHeader_2.54mm:PinHeader_2x20_P2.54mm_Vertical
common height == plastic part
- 8.5mm
- 5.7mm
- 5.0mm
- 3.5mm
Common Pin headers
| name | SKU | type | male/female | breakable | pin material | full length |
|---|---|---|---|---|---|---|
| CCO3612-dat | round-pin | F | yes | |||
| CCO3611-dat | round-pin | M | yes | |||
| CCO3588-dat | common | F | not, need cut | |||
| CCO3587-dat | common | M | yes | 11 mm | ||
| CCO3590-dat | common | M | yes | |||
| CCO3515-dat | common | M | yes |

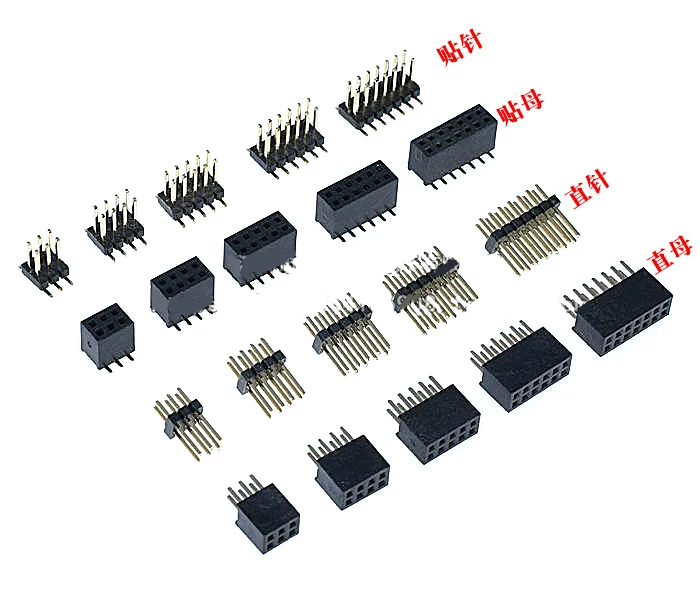

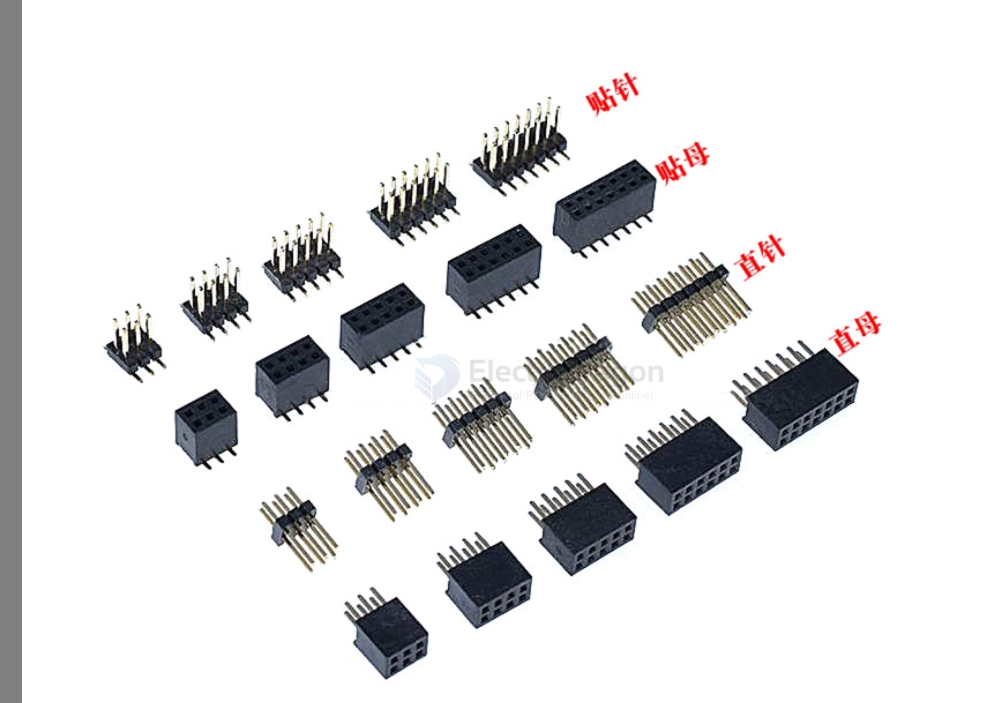

1.27mm pre-build pin header kits
straight pin header

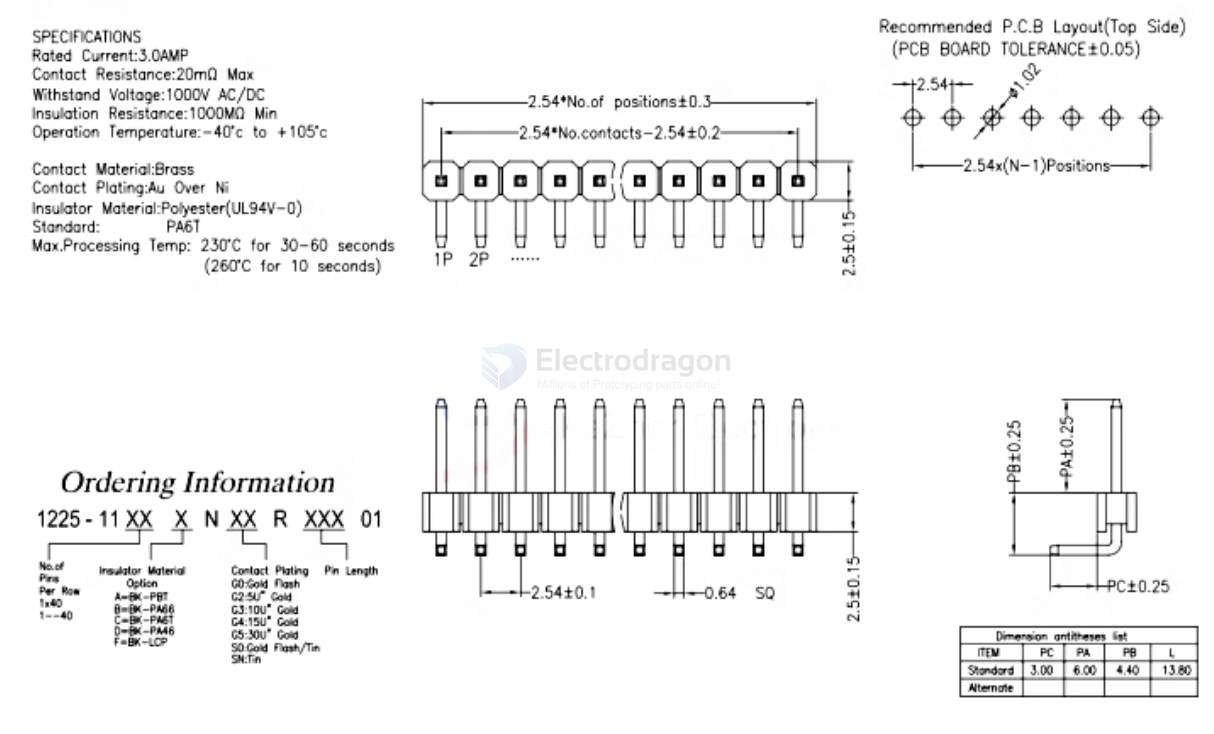

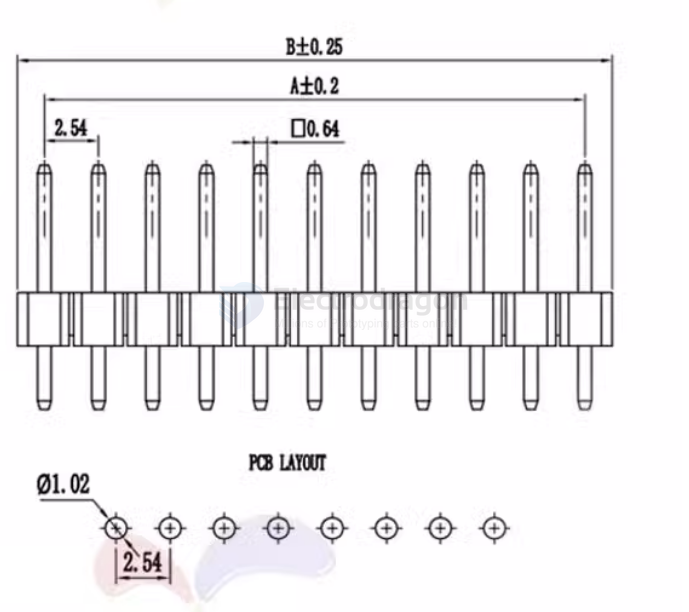

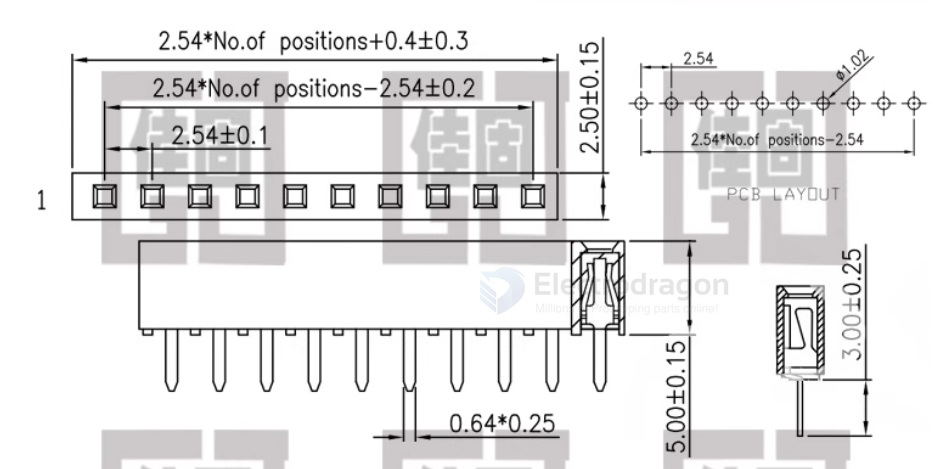

dimension

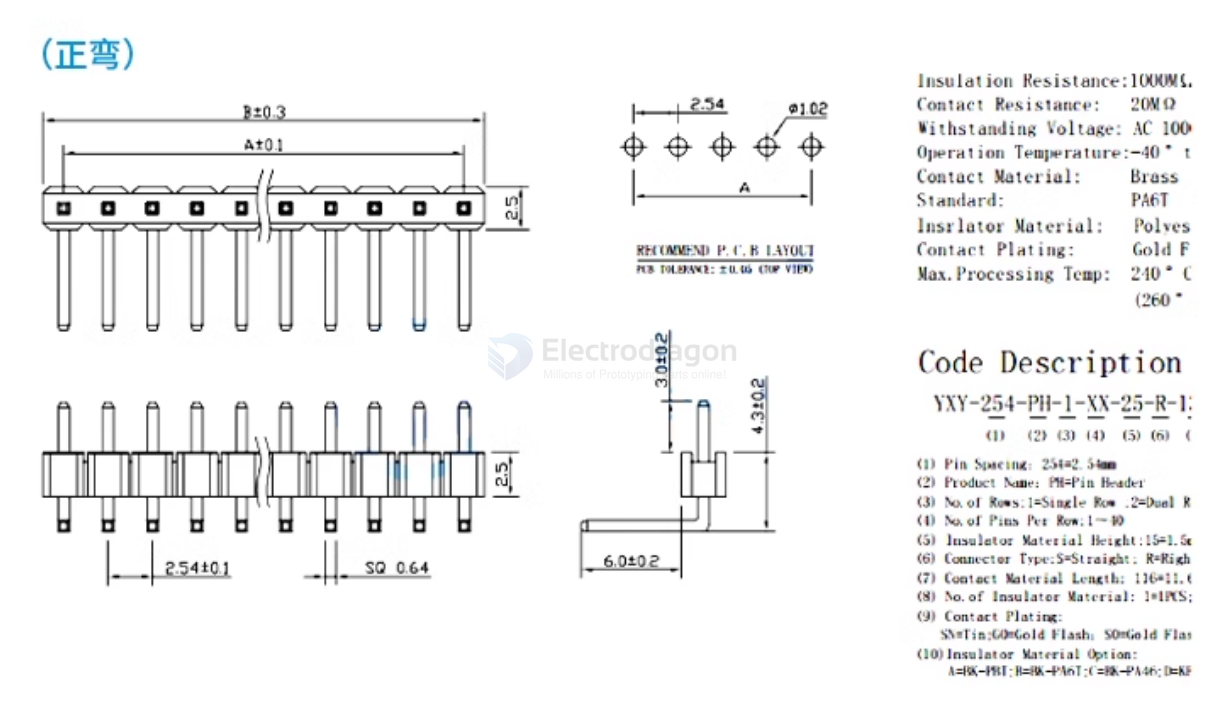

bended 90-degree pin header
material version:
- Iron needle (nickel-plated)
- Copper needle (nickel-plated)
- Gold-plated (0.8U)

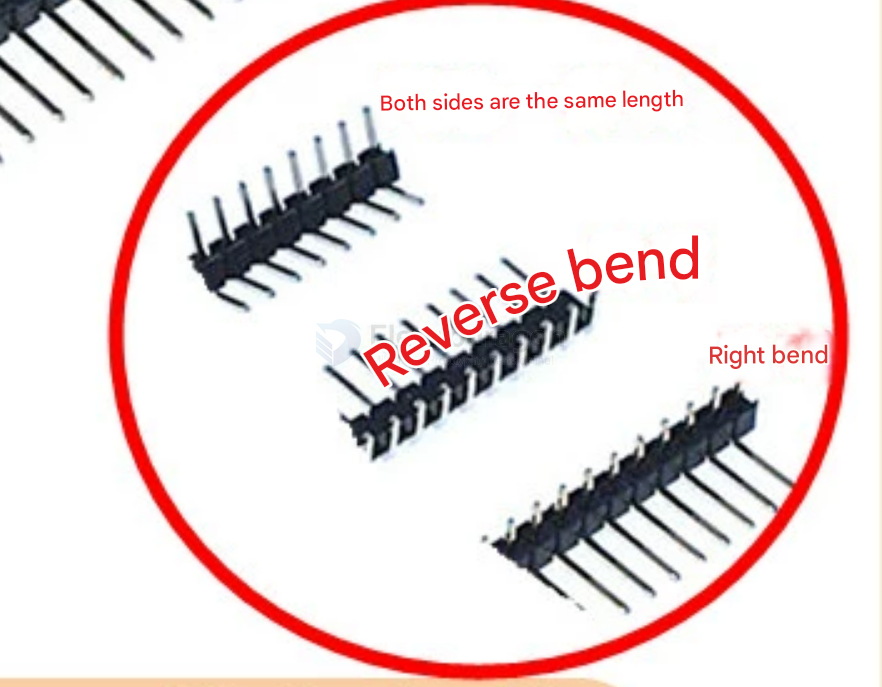

note below three version available, we only sell "right-bend" version here CCO3515-dat
reversed bend
right bend

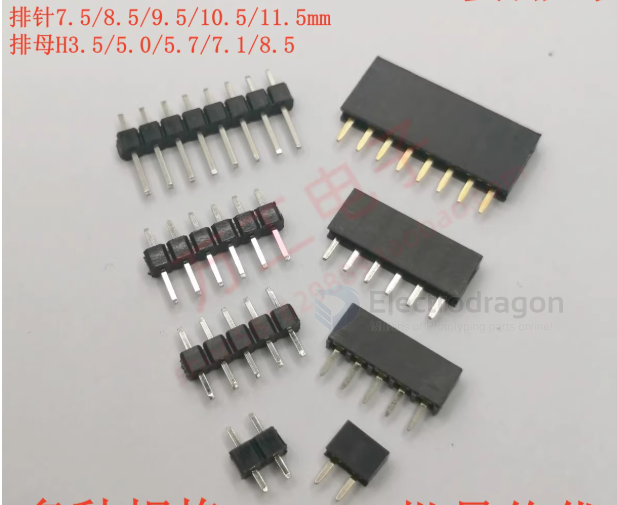

male pin header height
[] 7.5mm
- [] 8.5mm
- [] 9.5mm
- [] 10.5mm
- [] 11.5mm
female pin socket height
[] 3.5mm
- [] 5.0mm
- [] 5.7mm
- [] 7.1mm
- [] 8.5mm
| pins | price/pcs | height | type | price |
|---|---|---|---|---|
| 40P | 1 | 7.1 | F | 0.5 |
| 40P | 1 | 5 | F | 0.5 |
| 10P | 10 | 7.1 | F | 1.5 |
- plastic part height == mm

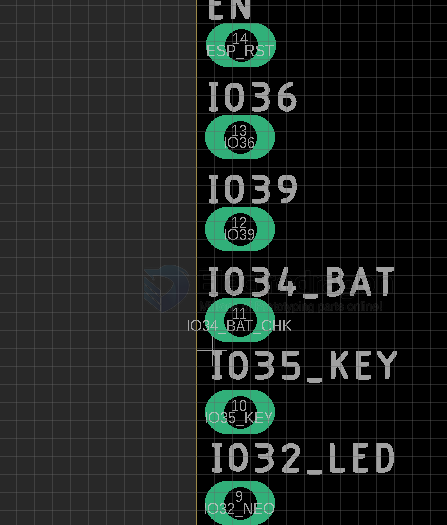

CAD

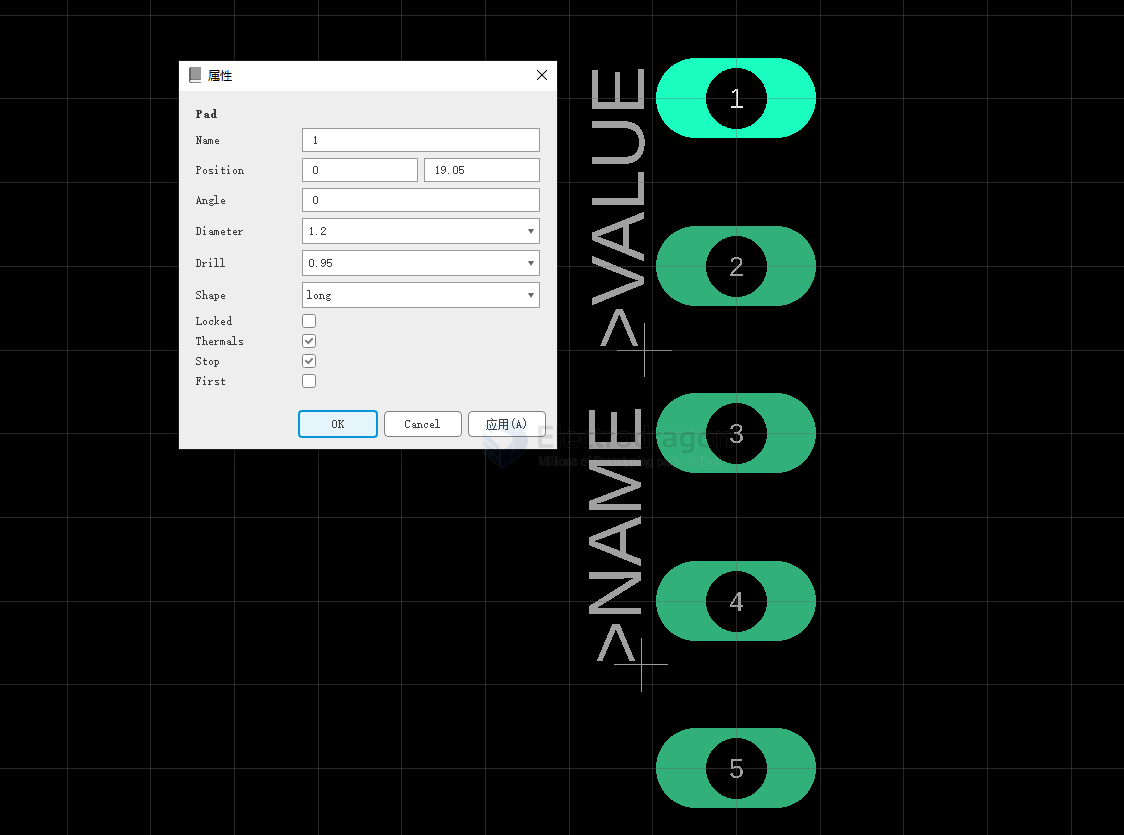

CAD design
