cable-ribbon-dat

• CONN-Box-header-dat

• cable-ribbon-dat - PCA1009-dat - PCA1011-dat - PCA1012-dat

• board - IDD1016-dat

2-row 2*8 pins

• hub75-dat

made for same direction

install methods 6 types

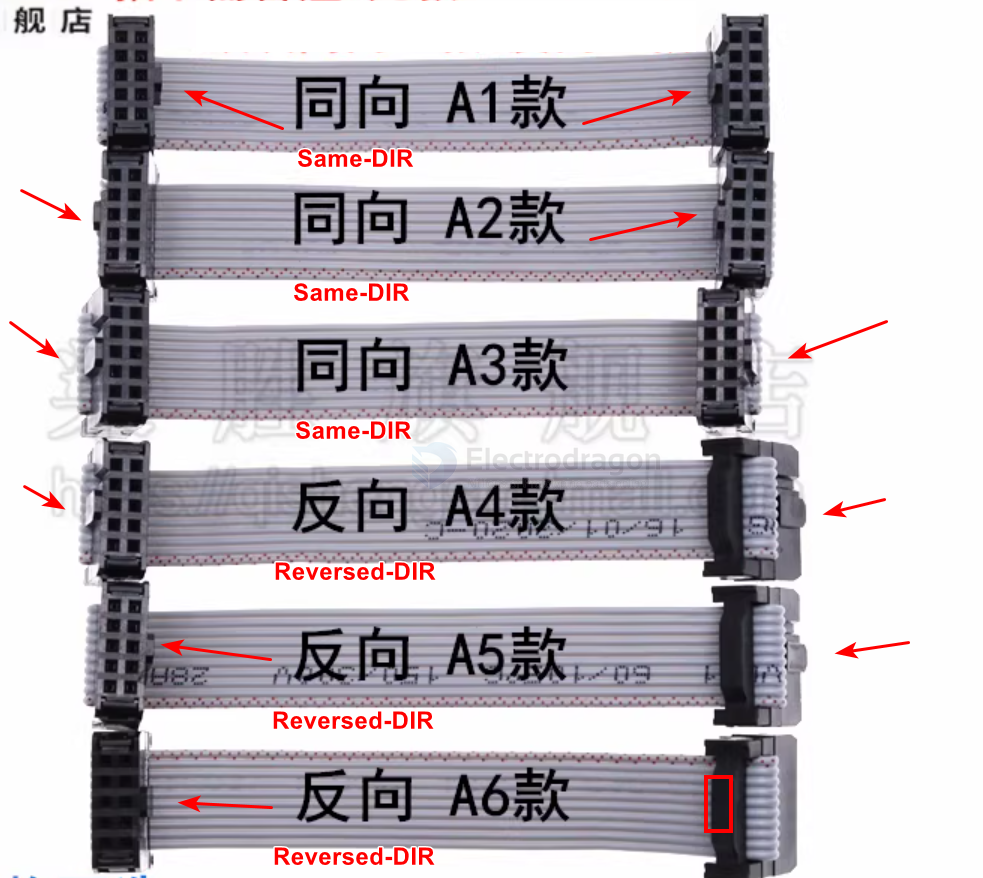

cable types from A1~A6

the result is always the same that mapping same pins from PCB to PCB, no matter the cable directions

see how it mapped here HUB75-dat, either horizontally flipped or horizontally + vertically flipped
