We sell the highly reliable, high quality panels. Probably the top quality from local top factory.
https://www.electrodragon.com/product/rgb-full-color-led-matrix-panel/
Panel Specifications
| type | dots | size CM |
|---|---|---|
| P3 | 64x64 | 19x19 |
| P6 | 32x32 | 19x19 |
| P8 | 32x16 | 25.6x12.8 |
| Type | LED SPECs | XY LEDs | subtotal | Dimension | spec | Usage | Scan | Power | Status | SKU |
|---|---|---|---|---|---|---|---|---|---|---|

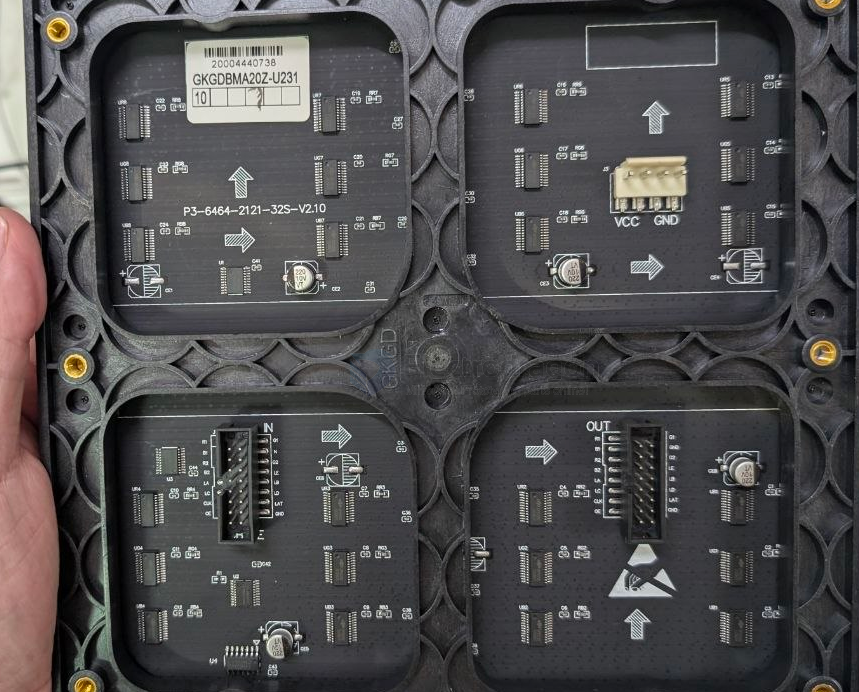

| P3 | 3mm | 64 x 64 | 4096 | 19 x 19 CM | 1919_6464_3 | Indoor Display | 1/32 | ~20W | selling | ILE1060-dat |
| P4 | 4mm | 64 x 32 | 2048 | 25.6 x 12.8 CM | 2613_6432_4 | Indoor Display | N/A | |||
| P6 | 6mm 3535 | 32 x 32 | 1024 | 19 x 19 CM | 1919_3232_6 | Outdoor, wateproof | 1/8 | ~30W | selling | ILE1059-dat |
| P8 | 8mm 3535 | 32 x 16 | 512 | 25.6 x 12.8 CM | 2613_3216_8 | Outdoor, wateproof | 1/4 | ~30W | selling | ILE1058-dat |
| P10 | 10mm 3535 | 32 x 16 | 512 | 32 x 16 CM | 3216_3216_10 |
-
type = LED pitch
- Life time 1000,000,000 hours.
- Drive constant current, dynamic
- Flash rate 2000Hz
Code Documentation
- Demo code supported for Raspberry Pi, code revised from here https://github.com/hzeller/rpi-rgb-led-matrix, compatible and mostly same except transfomer part, original code can not well support our this type.
- https://www.electrodragon.com/w/RPI_Matrix
- Demo video available here. - https://www.youtube.com/watch?v=wN-cqQ_2kNs
- Raspberry Pi adapter board is available here. https://www.electrodragon.com/product/rgb-matrix-panel-drive-board-raspberry-pi/
Accessories Included
- power cable –> 2-to-2, 4pin 3.96mm to "Y" connector power cable.

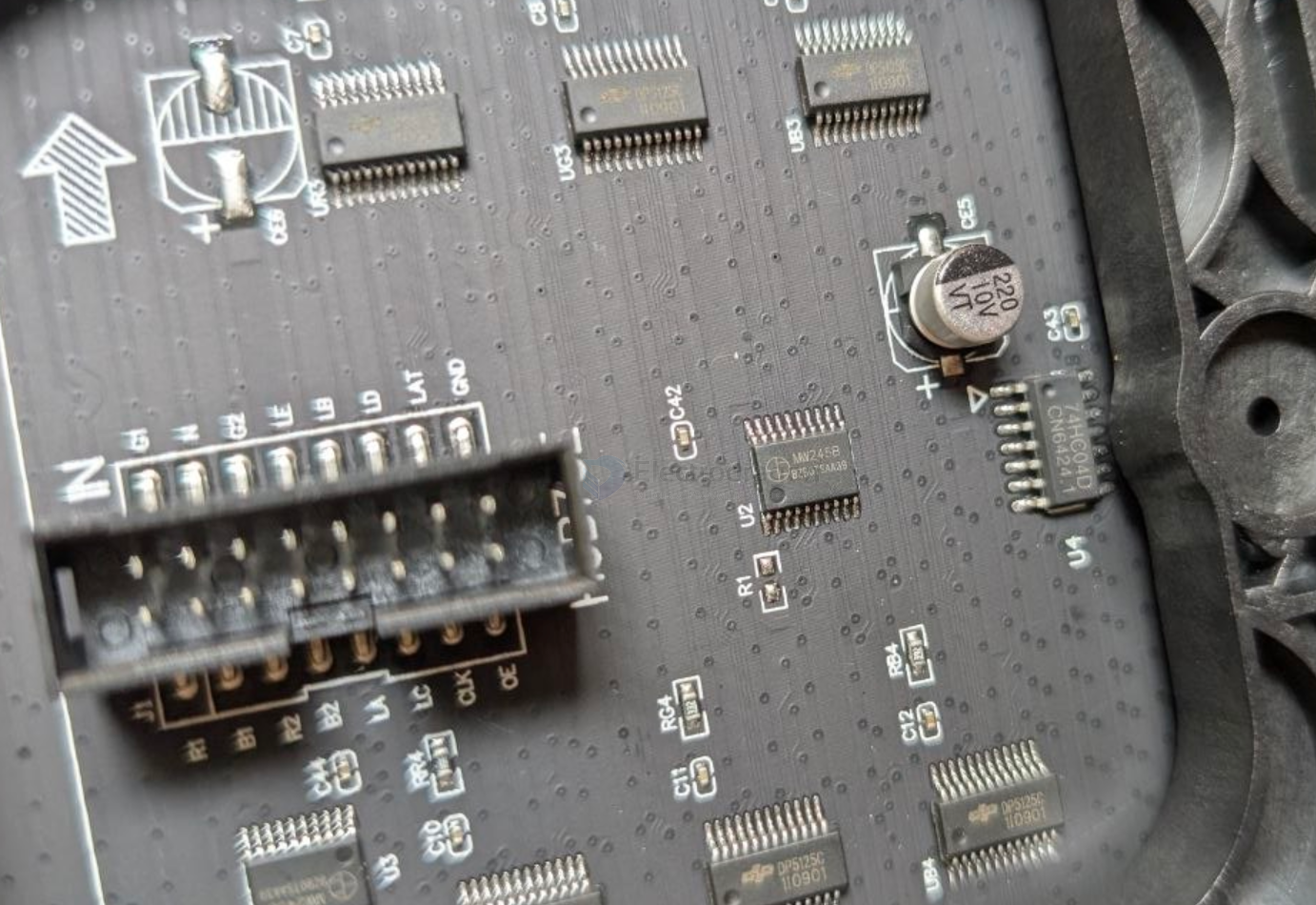

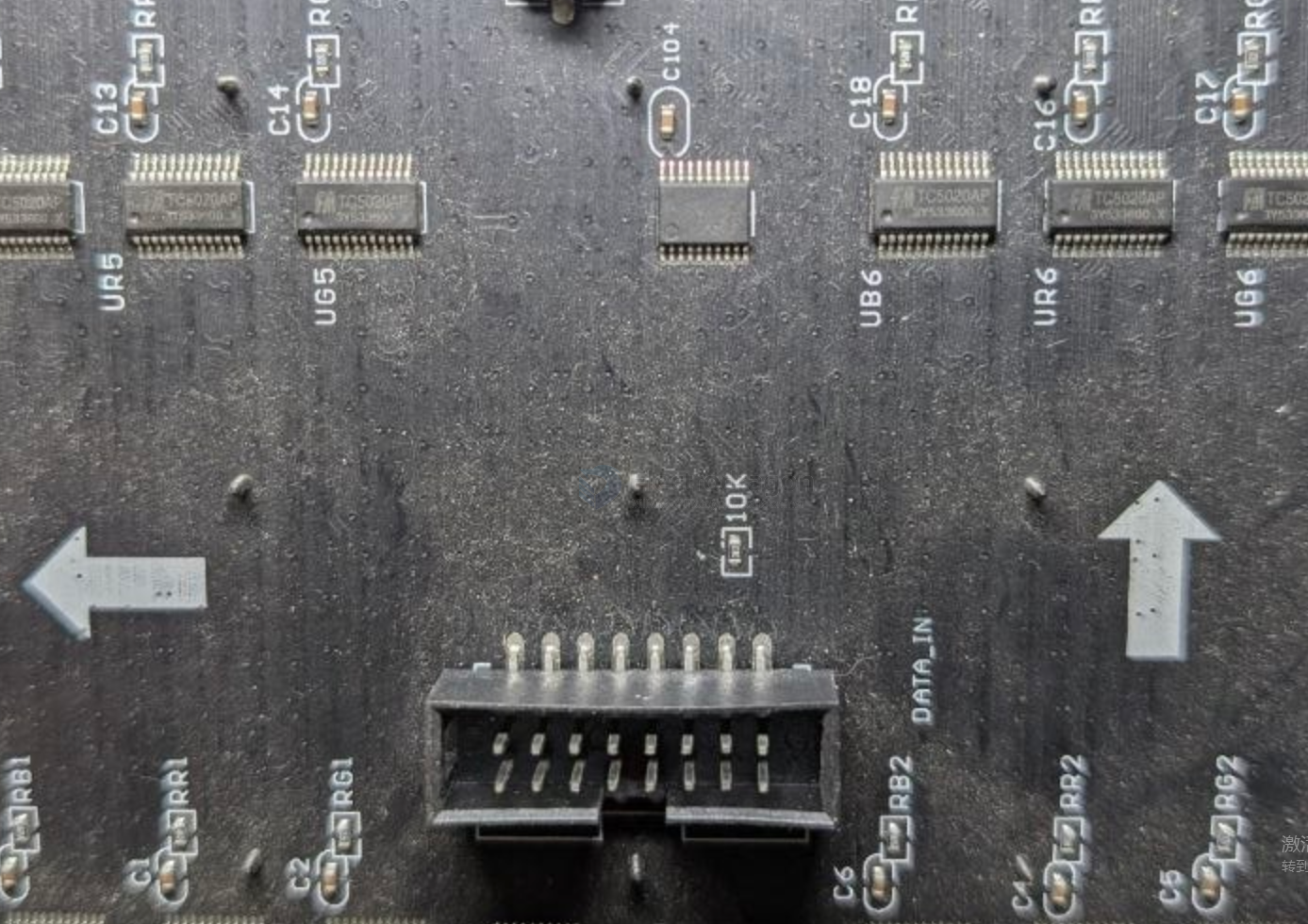

- data cable HUB75 –> Include 16P ribbon cable for HUB75 connector to drive board.
for outdoor ONLY P6 and P8
- 4pcs magnetic snap screw, can be snapped on you metal frame. Screw specs is M3, Dia. 13mm, L 12mm.
- waterproof rubber seal ring
