  • libraries\ESP32_HUB75_LED_MATRIX_PANEL_DMA_Display\
  • - lib: https://github.com/mrfaptastic/ESP32-HUB75-MatrixPanel-I2S-DMA
  • - old setup file: #include <ESP32-HUB75-MatrixPanel-I2S-DMA.h>
  • you're encountering a compatibility issue between the ESP32-HUB75-MatrixPanel-DMA library and the newer ESP32 board package (version 3.2.1). The error shows that i2s_dev_t type is not recognized because ESP-IDF v5.4 has deprecated the old I2S APIs.
  • Option 1: Update the Library == ESP32 HUB75 LED MATRIX PANEL DMA Display >>> 3.0.12
  • Downgrade your ESP32 board package to version 2.0.17 which is compatible with the ESP32-HUB75-MatrixPanel-DMA library version 3.0.5 you're using:
  • - [[ESP32-hub75]]
  • 0 - 7  board-series-dat/led-rgb-panel-dat/led-rgb-panel-dat.md
  • - [[HUB75-dat]] - [[HUB08-dat]] - [[HUB30-dat]] - [[led-rgb-panel-dat]]
  • https://github.com/mrcodetastic/ESP32-HUB75-MatrixPanel-DMA/issues/645

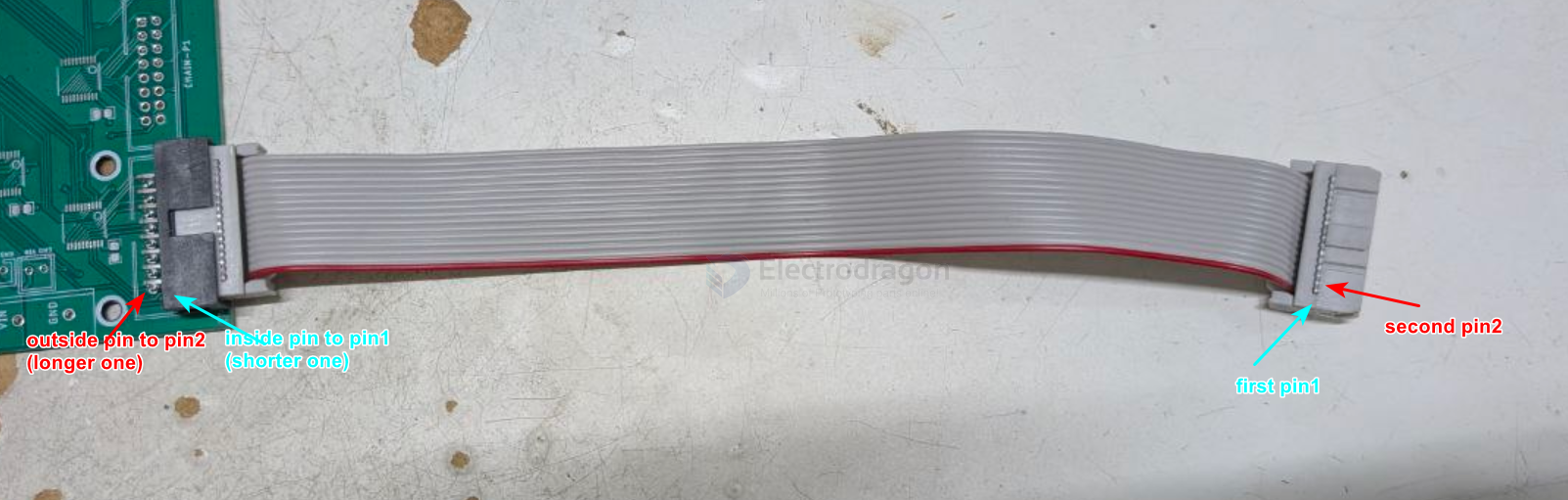

  • - data cable for [[HUB75-dat]] --> Include 16P ribbon cable for HUB75 connector to drive board.
  • - [[cable-ribbon-dat]] - [[HUB75-dat]] == 26P
  • Gen-1: Basic HUB75 panels using 4–5 address lines, simple driver chips (ICN2037BP, FM6124), and separate row decoder chips (like 74HC138 or FM6124A). These panels are compatible with the Adafruit MatrixPortal S3, RP2040, and Adafruit libraries.
  • - [[HUB75-dat]]
  • 0 - 6  Board-dat/IDD/IDD1027-dat/IDD1027-dat.md
  • - [[IDD1013-dat]] - [[HUB75-dat]] - [[IDD1027-dat]]
  • - [[CONN-cable-Box-header-dat]] - [[HUB75-DAT]] - [[cable-ribbon-dat]]
  • https://github.com/mrfaptastic/ESP32-HUB75-MatrixPanel-I2S-DMA
  • #include <ESP32-HUB75-MatrixPanel-I2S-DMA.h>
  • https://github.com/mrcodetastic/ESP32-HUB75-MatrixPanel-DMA/blob/master/src/platforms/esp32s3/esp32s3-default-pins.hpp
  • use default pin definitions from - libraries\ESP32_HUB75_LED_MATRIX_PANEL_DMA_Display\esp32s3-default-pins.hpp
  • 0 - 5  board-series-dat/RMP-driver-dat/RMP-driver-dat.md
  • - [[HUB75-dat]] - [[MPC1120-dat]]
  • - https://github.com/mrcodetastic/ESP32-HUB75-MatrixPanel-DMA
  • - plug board into the INPUT port of [[HUB75-dat]], not the OUTPUT port
  • - [[IDD1013-dat]] - https://github.com/mrfaptastic/ESP32-HUB75-MatrixPanel-I2S-DMA
  • - [[hub75-dat]]
  • 0 - 4  Board-dat/MPC/MPC1120-dat/MPC1120-dat.md
  • if you want to customized the connector to the bottom side, please see why does it not work here: [[HUB75-dat]]
  • - [[CONN-cable-Box-header-dat]] - [[HUB75-DAT]] - [[cable-ribbon-dat]]
  • - refer to [[HUB75-dat]]
  • - [[HUB75-dat]]
  • 0 - 4  Board-dat/IDD/IDD1016-DAT/IDD1016-DAT.md
  • - [[CONN-cable-Box-header-dat]] - [[HUB75-DAT]] - [[cable-ribbon-dat]]
  • - SEL1 pin is the SEL-PIN4 in [[HUB75-dat]]

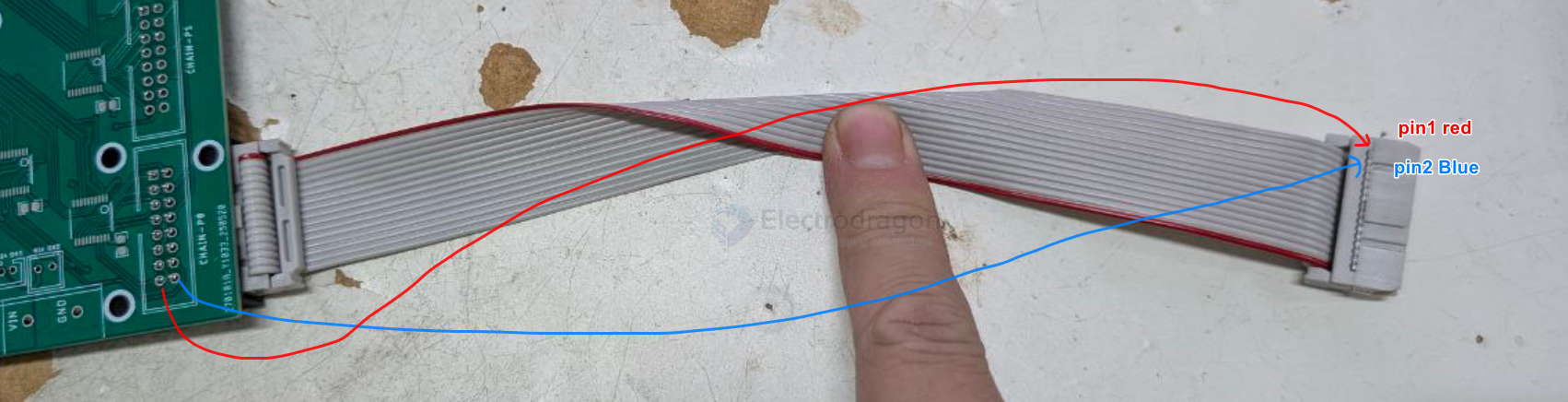

  • Note to connect the input HUB75 to input of the panel, and the output HUB75 to output of the panel by cable.
