board - NWI1100-dat - NWI1101-dat - NWI1102-dat - NWI1103-dat
product url - ESP32 Mini Core Dev. Board, ESP32-DevKitC, V4 [Ver.]
Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.
module - ESP32-wroom-dat == ESP32-WROOM-32E
pin definitions, dimensions refer to general genius board - NWI1100-dat
-
N8R2 （8M flash / 2M PSRAM）== default option - N8R8 （8M flash / 8M PSRAM）
- N16R8 （16M flash / 8M PSRAM）
AIIOT / dual Type-C USB port / W2812gb == WS2812-dat / high-speed USB-serial == CH340-dat or CH343-dat

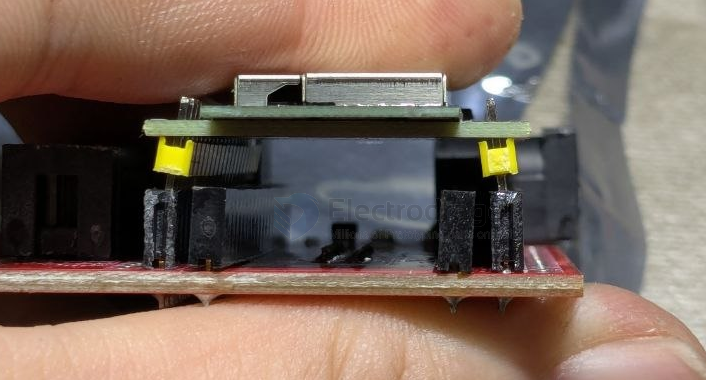

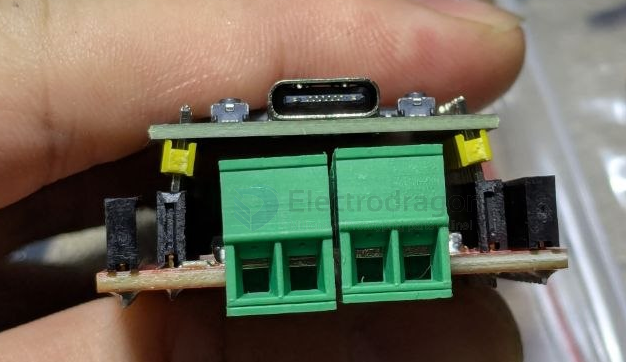

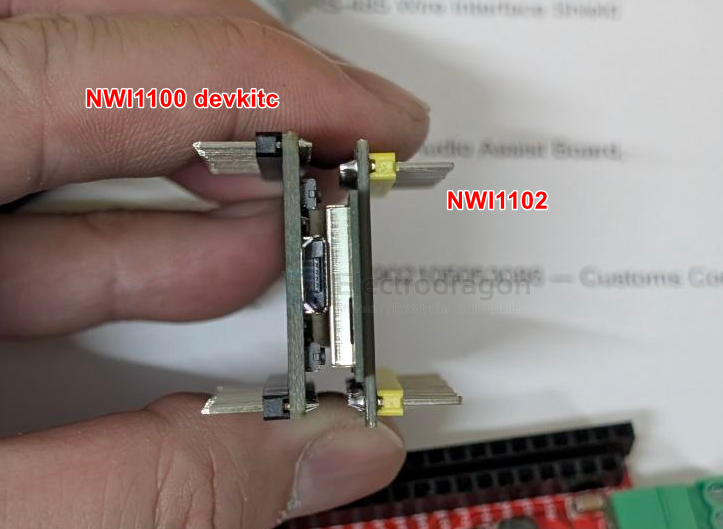

dimension differencs

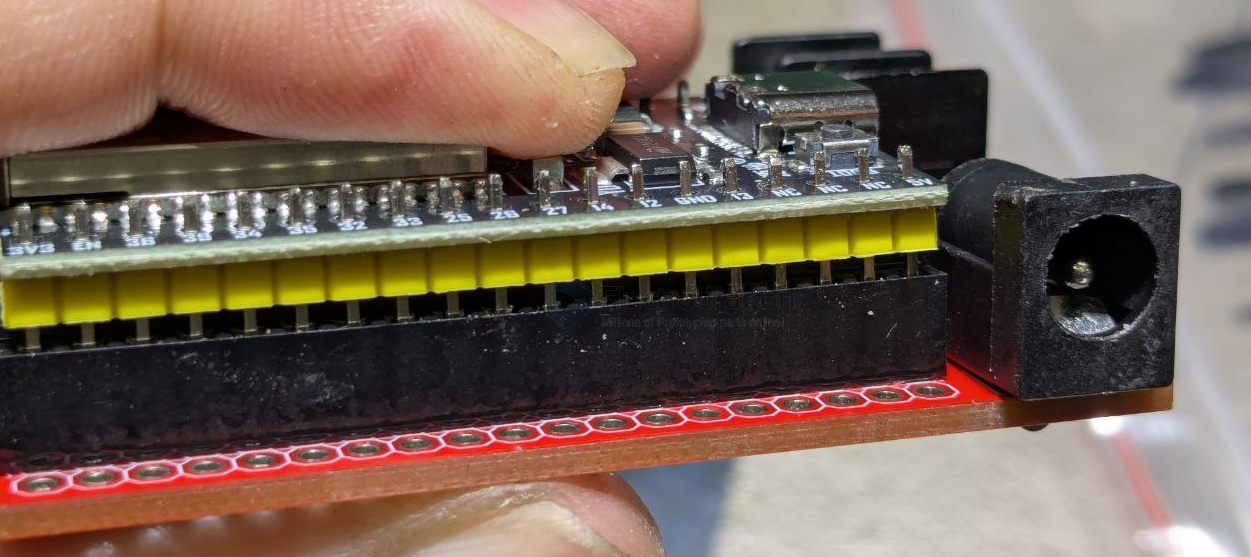

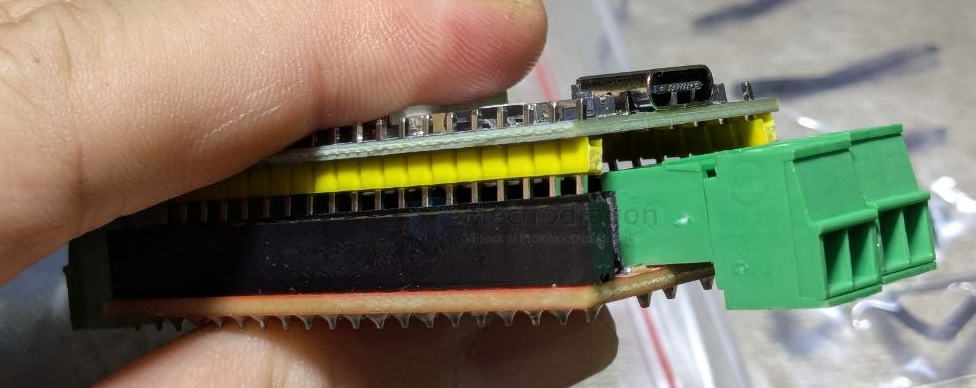

The board can be soldered in an angle to fix the gap differences as below:
We will leave the pin headers unsolder for your own decision.
This is for NWI1245-dat
This is for IDD1016-dat
