Open Split Core Current Transformer

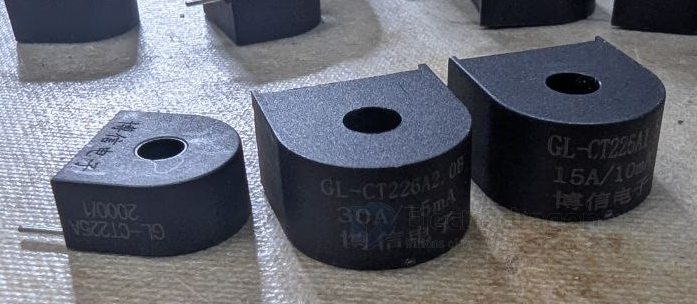

BX-CT Specifications
| left | middle | right |
|---|---|---|
| 5A | 15A | 30A |
| 2000:1 | 2000:1 | 1500: |

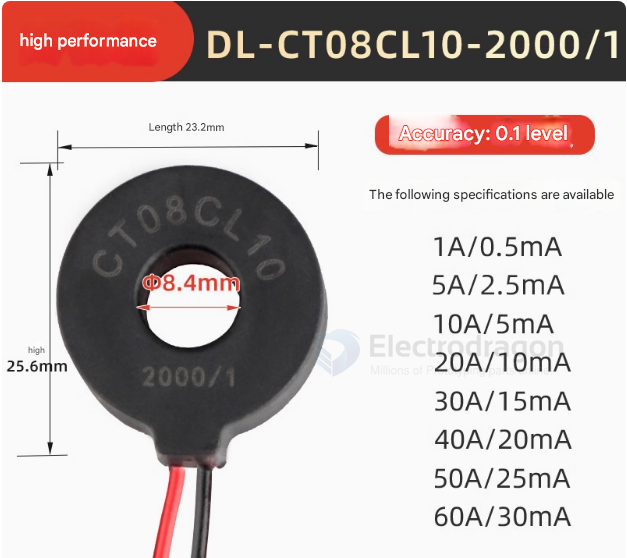

DL-CT08CL10-2000/1 = Specifications
"Miniature current transformer, small AC through-core type, class 0.1 precision, high-frequency transformer, lead type, 1000:1"
Here's a breakdown:
微型电流互感器: miniature current transformer
小型交流穿心式: small AC through-core type
0.1级精密: class 0.1 precision
高频互感器: high-frequency transformer
引线式: lead type (with wire leads)
1000:1: transformation ratio
Other Form
ZHT103U

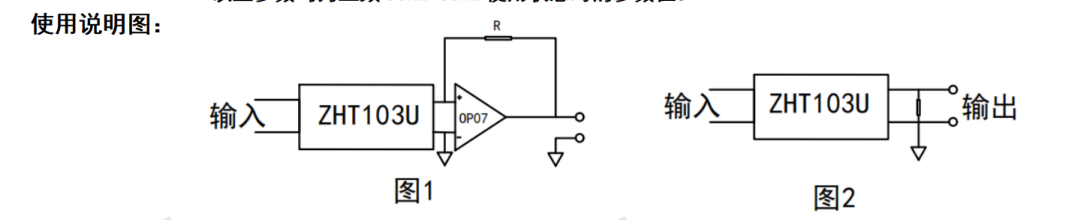

ZHT103U series, current output type, with wire leads
Specifications:
- Accuracy class: 0.5
- Case material: Engineering plastic, flame retardant
- Dielectric strength: MQ / V/min
- Features: Fully potted, strong environmental resistance, high accuracy, good consistency, flexible installation, wide linear range
- Frequency range: KHz
- Input type: Single pass-through input, secondary wire output
- Insulation resistance: ≤35'32001000MQ / 500V/min
- Linear range: 0~10A
- Load resistance: 100Ω
- Operating temperature: -35℃~+75℃
- Output current (rated): 5mA
- Output type: Lead wire
- Rated input current: 5A
- Storage temperature: -40℃~+80℃
- Transformation ratio: 1000:1
- Typical applications: Power network meters, power transmitters, ammeters, measurement and control devices, etc.
