SVC1038-dat

This is an upgradion board from the old board SVC1035-dat

tech

• ZMCT103-dat == 1000:1 current-dat - current-transformer-dat

• ZMPT107-dat == 1000:1000 voltage-dat - ac-voltage-transformer-dat

boards

• SVC1038-dat - SVC1042-dat - SVC1035-dat

Info

product url - VAC Energy Meter Power Sensor Board, HLW8032 Isolated V2 [Amp]

Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.

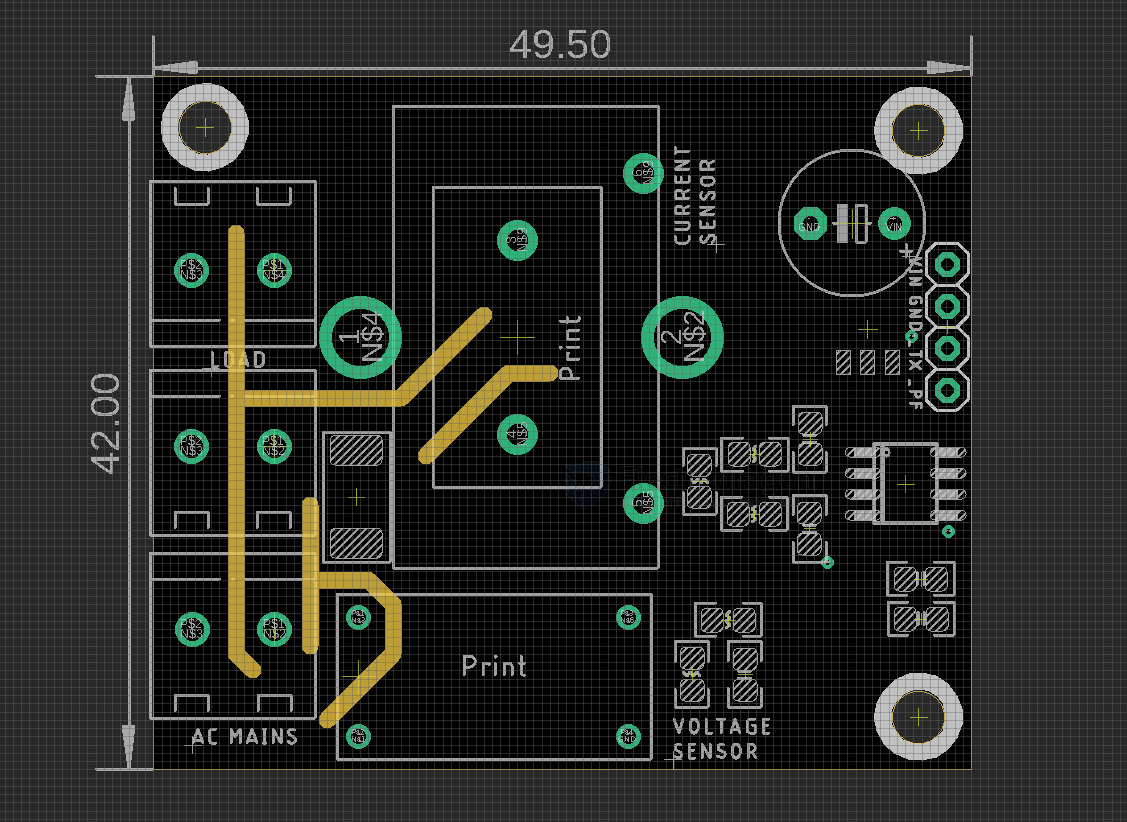

Board map

• note the current-transformer-dat (section BX-CT) sensor has two types footprint, bigger and smaller, to compatible with more types of sensors

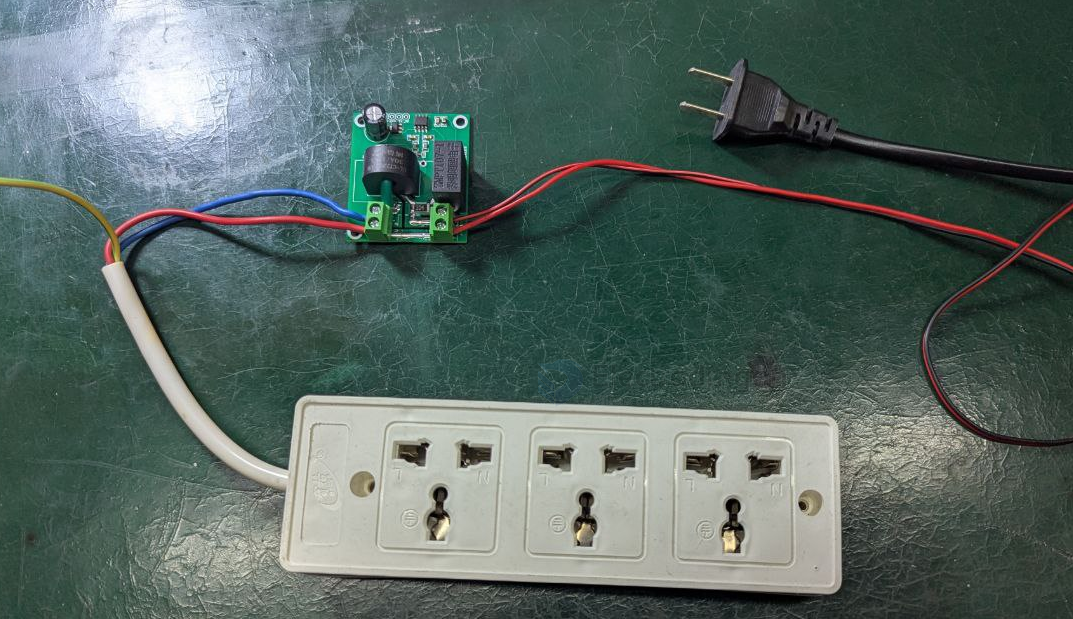

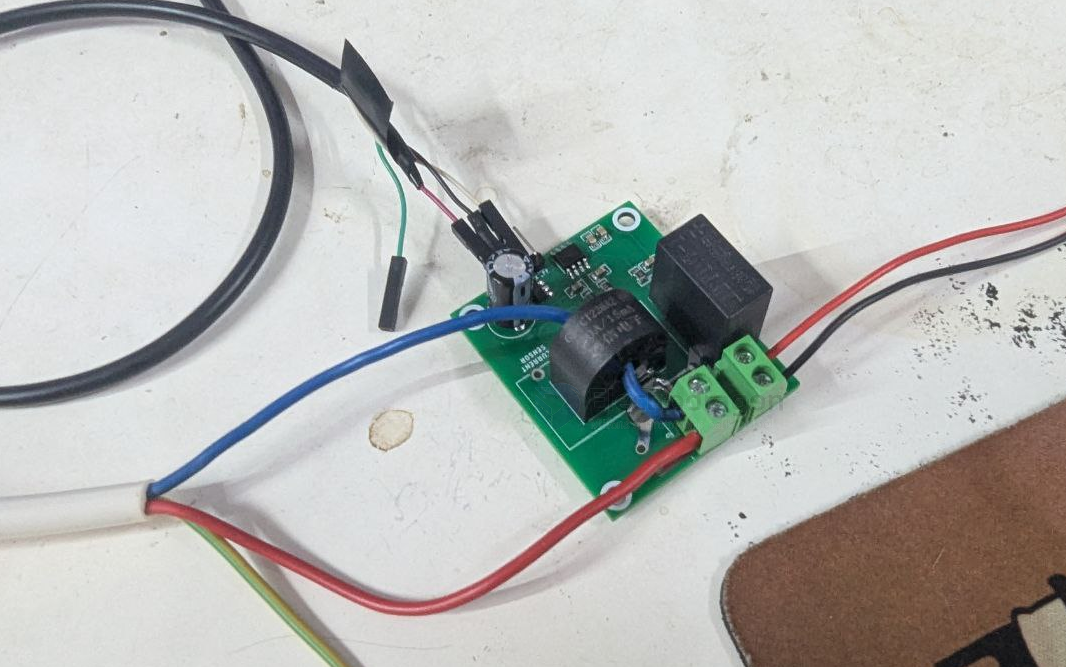

New Wiring (default)

• connnect AC-mains-dat input from the bottom blue and red wire
• connect the load to the top blue and red wire

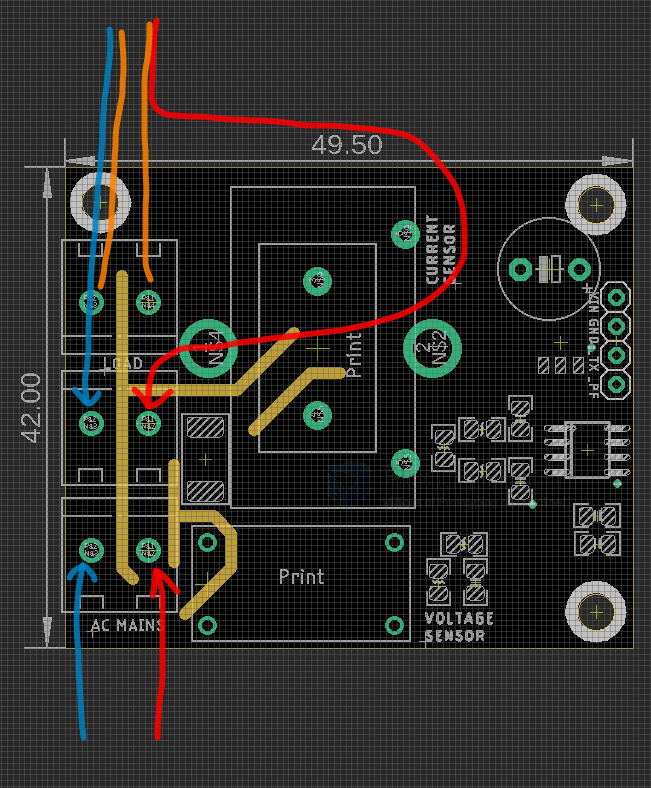

Old Wiring

• The orange wires are the old wiring method, only use when the current-transformer-dat has wire inside

Applications, category, tags, etc.

Demo Code and Video

• HLW8032-dat

ref

• SVC1038-dat - SVC1042-dat

• SVC1038

• legacy wiki page
