Chip and solutions

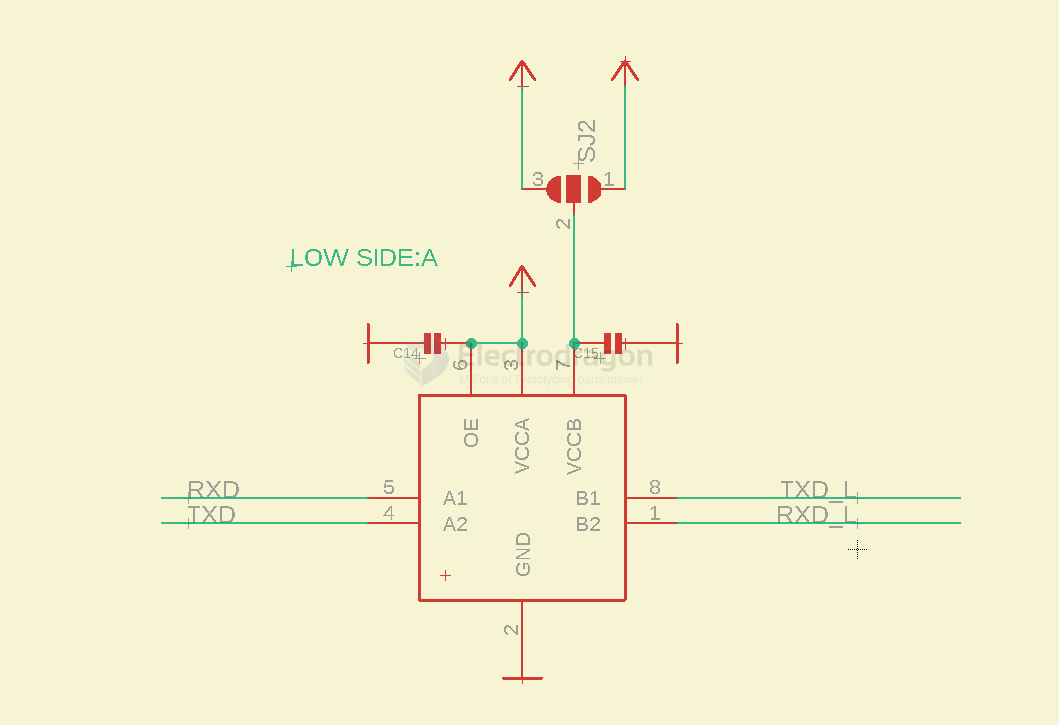

bidirection logic shifter
Surface Mount TXS0102DCUR VSSOP-8 2-bit Bidirectional Voltage Level Shifter Chip
one-direction logic shifter
TXB010x VS TXS010x
For the same reason, the TXB0108 should not be used in applications such as I2C or 1-Wire where an open-drain driver is connected on the bidirectional data I/O. For these applications, use a device from the TI TXS01xx series of level translators.
| Type | Open-Drive | Push-pull | Examples |
|---|---|---|---|
| TXB 010x | × | ||
| TXS 010x | ✔ | ✔ | I2C, 1-Wire |
Make sure the VCCA ≤VCCB.
Simple logic shifter for VBAT

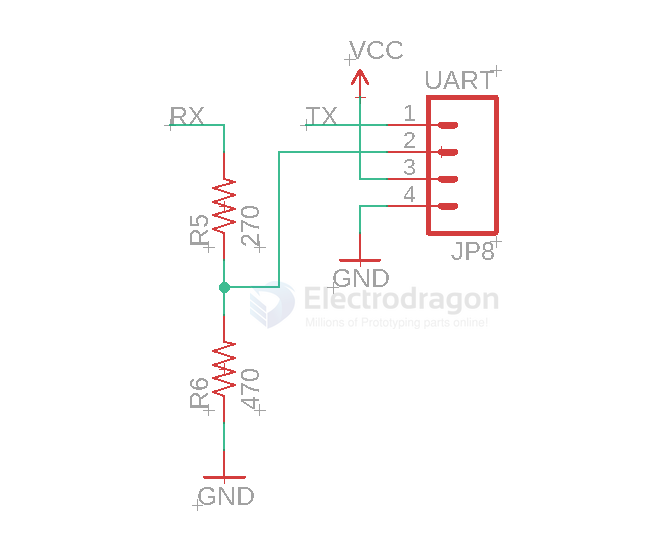

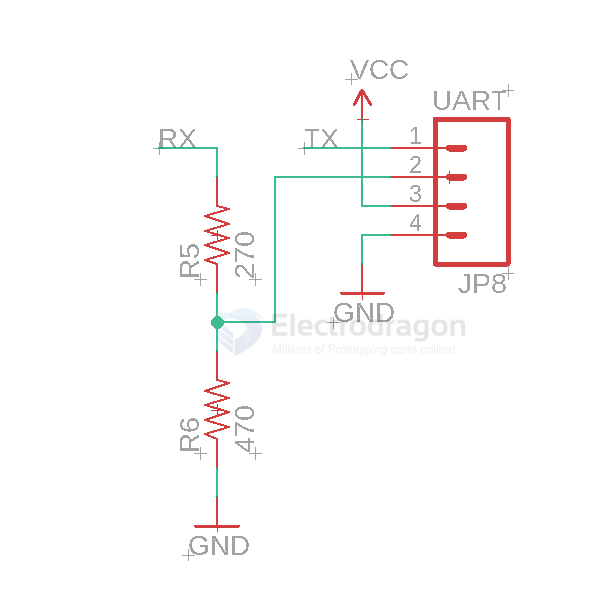

logic level shifter for UART
simple passive solutions
via chip

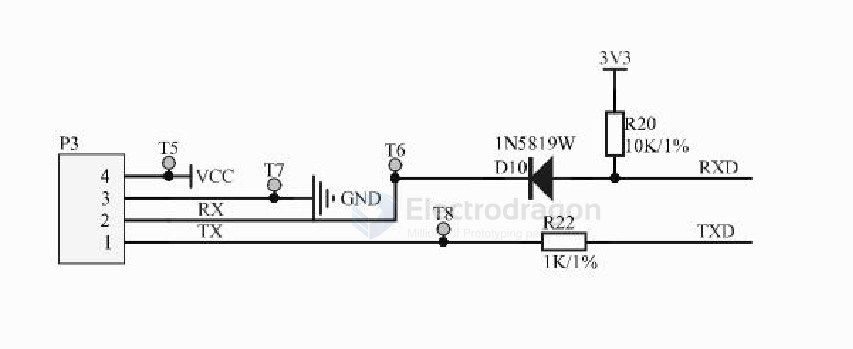

- Diode + pull-up resistor on RXD

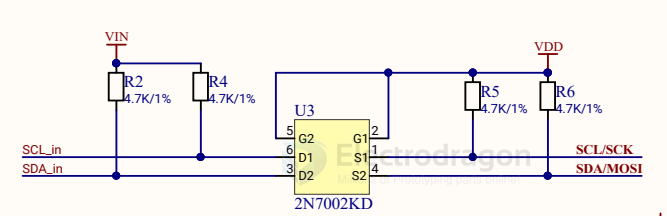

Simple I2C shifter

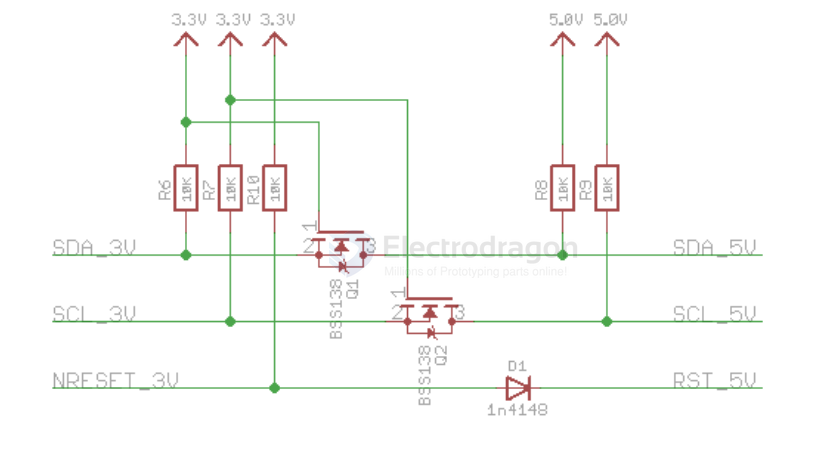

5V-3.3V

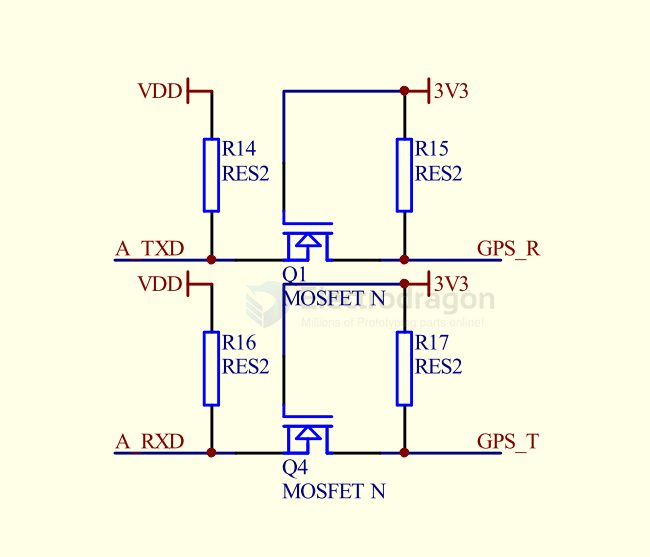

- arduino-dat to 3.3V location-dat == serial-dat

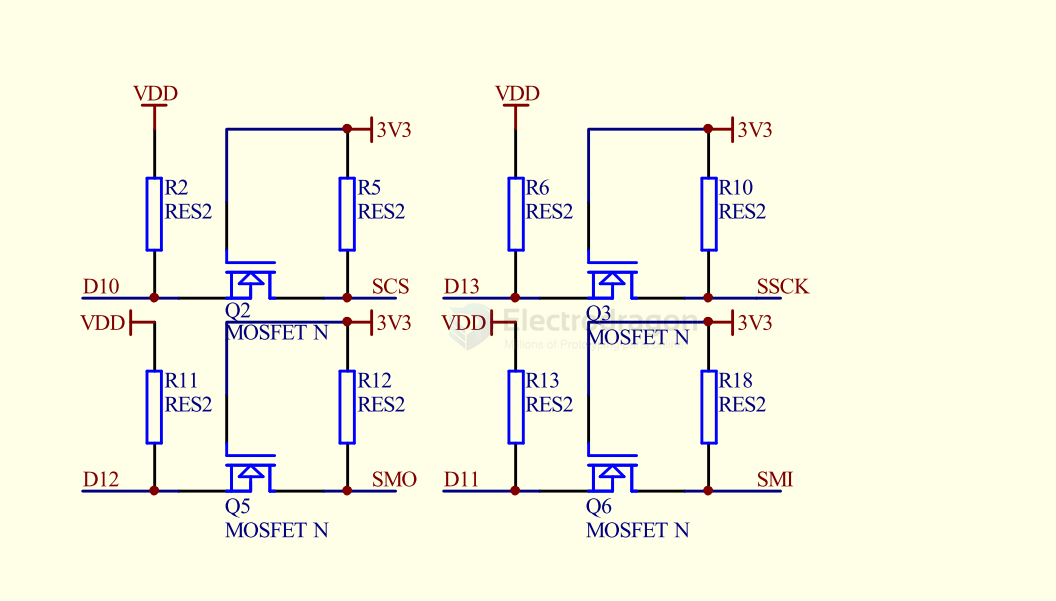

general 5V-3V3 logic
- arduino-dat to 3.3V location-dat == SPI-dat
3.3V tolerant to RPI-SBC-dat
unsort
- MAX3372E–MAX3379E/MAX3390E–MAX3393E - ±15kV ESD-Protected, 1μA, 16Mbps, Dual/Quad Low-Voltage Level Translators in UCSP
EOF
IP4856CX25 - The device is an SD 3.0-compliant 6-bit bidirectional dual voltage level translator. It is designed to interface between a memory card operating at 1.8 V or 2.9 V signal levels and a host with a fixed nominal supply voltage of 1.7 V to 3.6 V. The device supports SD 3.0, SDR104, SDR50, DDR50, SDR25, SDR12 and SD 2.0 high-speed (50 MHz) and default-speed (25 MHz) modes. The device has an integrated voltage selectable low dropout regulator to supply the card-side I/Os, built-in EMI filters and robust ESD protections (IEC 61000-4-2, level 4).
