The SW6106 is a highly integrated power management IC for fast charge power bank application. It integrates 4A switching charger, 18W synchronous boost, PD/QC/AFC/FCP/PE/SFCP fast charge protocol, fuel gauge and power controller. With simple external components, The SW6106 provides a turn-key high efficiency solution for fast charge battery management.

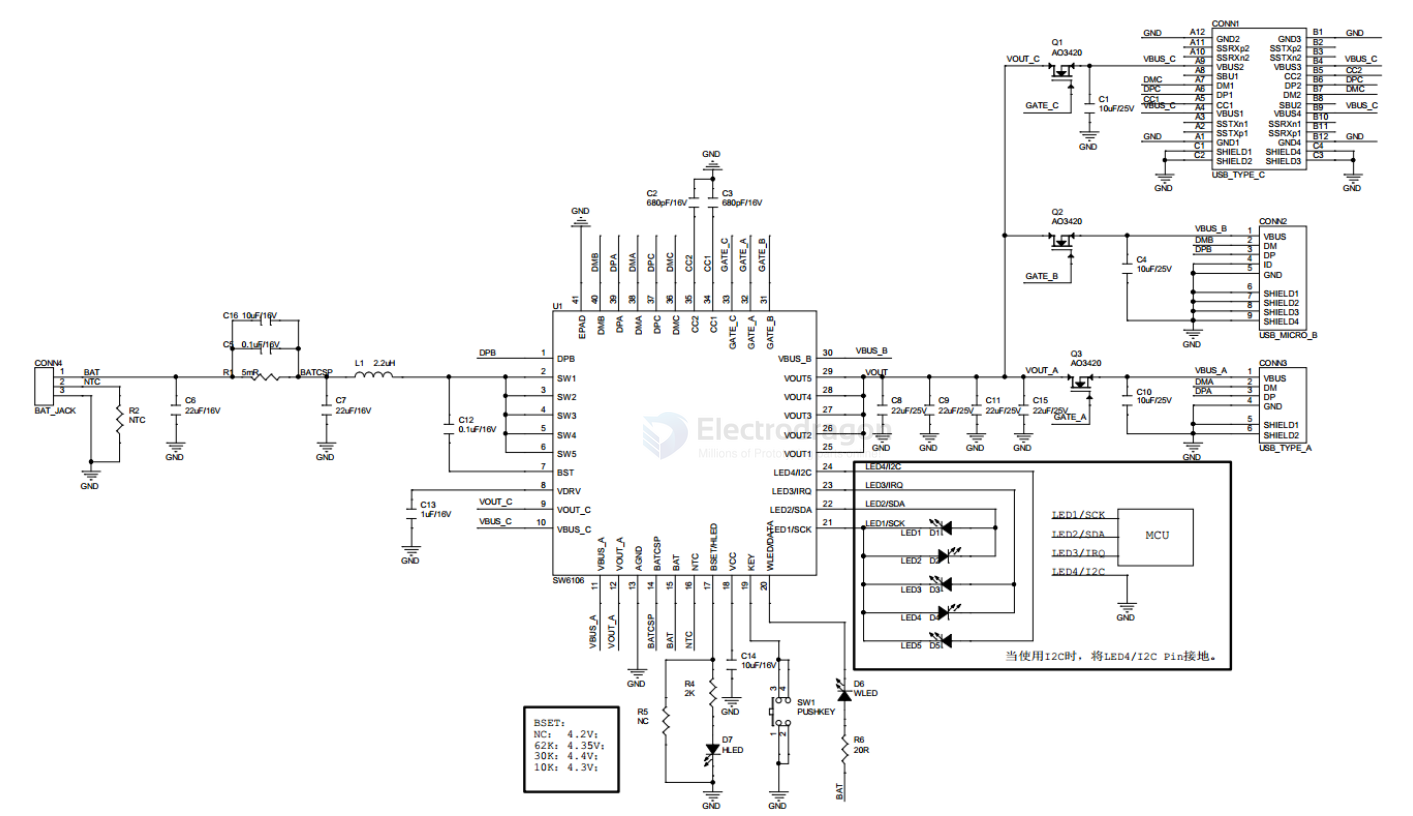

  1. Applications • Power Bank • Battery Powered Device
  2. Features • Switching Charger ➢ Current up to 4A , Efficiency up to 96% ➢ Support 4.2/4.3/4.35/4.4 Battery Voltage ➢ Support Battery NTC Protection ➢ Thermal Regulation • Synchronous Boost ➢ Power up to 18W, Efficiency up to 95% ➢ Support Wire Drop Compensation ➢ Load Insert Detect and Auto Turn on ➢ Light Load Detect and Auto Turn off • Output Fast Charge Protocol ➢ Support PD3.0/PD2.0 ➢ Support QC3.0/QC2.0 ➢ Support AFC ➢ Support FCP ➢ Support PE2.0/PE1.1 ➢ Support SFCP • Input Fast Charge Protocol ➢ Support PD3.0/PD2.0 ➢ Support AFC ➢ Support FCP • Type-C Interface ➢ Support USB Type-C Specification ➢ Support try.SRC Role • BC1.2 Module ➢ Support BC1.2 DCP ➢ Support Apple & Samsung Device • Lightning Decryption ➢ Support Lightning Decryption • Fuel Gauge ➢ Include 12bit ADC ➢ Support Percent Display ➢ Support Various Battery Voltage ➢ Support 3~5 LEDs ➢ Automatic Recognition of LED Number • WLED Driver ➢ Support WLED Driver • Fast Charge LED ➢ Support Fast Charge LED Driver • Key Support ➢ Support Push Key • Protection ➢ Input Over Voltage Protection ➢ Output Over Current Protection ➢ Output Short Protection ➢ Charger Over Time Protection ➢ Charger Over Voltage Protection ➢ Over Temperature Protection • I2C Interface • QFN-40(6x6mm) Package
