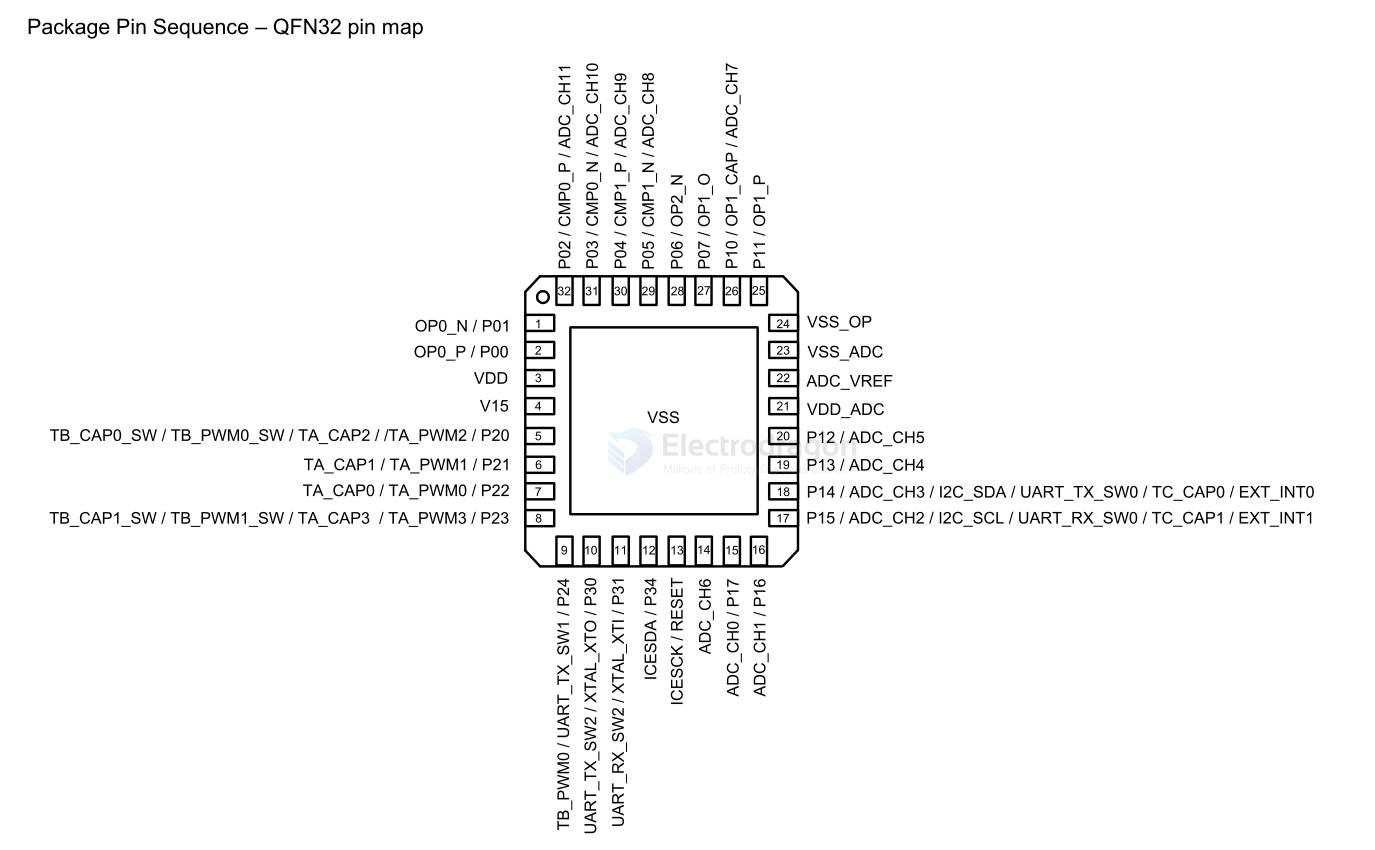

GPM8F3331B - 48 / 32 Pin 8-bit Microcontroller with 32KB Flash

General Description

GPM8F3331B, a highly integrated microcontroller, features a pipelined 1T 8051-based CPU, 3K-byte XRAM, 256-byte IDM SRAM, and 32K-byte program FLASH into a single chip. It supports up to 29 programmable multi-functional I/Os, Timer0/1/A/B/C, UART0 ,SPI, I2C (master/slaver), 3 sets internal gain OP, 2 sets of Comparator, 65.3824MHz PLL, XTAL8M , IOSC32K and 1 set of 13-channle SAR ADC with 12-bit resolution for application. It operates over a wide voltage range of 2.4V - 5.5V with variety of clock sources. It also provides one power saving mode in power management unit to manage power consumption more efficiently. Moreover, there is an on-chip debug circuit with two pins equipped to facilitate a full speed in-system debug while in application development phase.

Features

A/D Converter

One 13-channel 12-bit resolution ADC
Supports programmable sample & hold and ADC clock function
Control independent per set
Internal VSS channel
Offset calibration
Direct memory access from ADC to XRAM

Built-in Low Voltage Detection

Programmable level: 2.6V, 3.0V, 3.4V, 4.4V

Built-in Low Voltage Reset

Trigger level: 2.4V, 2.8V, 3.2V, 4.2V

Clock Management

Internal oscillator: 8MHz±2% @ 4V~5.5V
Internal oscillator with PLL: 65.3824 / 63.85 / 60.019 / 52.357 MHz
Crystal input with 8MHz
Internal oscillator: 32KHz ± 50% @ 4V~5.5V

CPU

High speed and high performance 1T 8051-based CPU
100% software compatible with industry standard 8051
Pipeline RISC architecture to execute instructions 10 times faster than standard 8051
Up to 65.3824MHz clock operation

I/O Ports

29 multifunction bi-direction I/Os
Each incorporates with pull-up resistor, pull-down resistor, output high, output low, output driving capability and floating input, determined by user’s settings at the corresponding registers
I/O ports with 15mA or 8mA current sink @ VDD = 5V
I/O ports with 15mA or 8mA current drive @ VDD = 5V

I2C (master / slaver mode)

Programmable master I2C clock frequency
Max I2C clock: 400 KHz

Interrupt Management

12 interrupt sources
2 external interrupt sources

Memory

3K bytes XRAM
256 bytes internal Data Memory (IDM) SRAM
32K bytes FLASH with high endurance
Minimum 100,000 program/erase cycles
Minimum 10 years data retention
512 Byte page size
Programmable read only level for software security

On-chip Debug Unit

C compatible development tools

Power Management

One Sleep mode for power saving

Programmable Watchdog Timer

A time-base generator
An event timer
System supervisor

Reset Management

Power On Reset (POR)
Low Voltage Reset (LVR)
Pad Reset (PAD_RST)
Watchdog Reset (WDT_RST)
Software Reset (S/W_RST)
FLASH Access Error Reset (ADDR_ERR_RST)

SPI (master / slaver mode)

Programmable phase and polarity of master clock
Programmable master SPI clock frequency

Three Ops

Internal gain included
Resistance between OP_O and CMP_N/ CMP_P input path included

Three Powerful Timers: TimerA / TimerB / TimerC, with 16-bit Compare / Capture / PWM Unit

Timer mode with selectable clock source
Auto-reload 16-bit timers
Event capturing
Pulse width modulation and measurement
TimerA providing 4 channels PWM/Capture
TimerB providing 2 channels PWM/Capture
TimerC providing 2 channels Capture
