ES8311

refer use guide in I2S-SDK-dat

Low Power Mono Audio CODEC

FEATURES

System

High performance and low power multibit delta-sigma audio ADC and DAC
I2S/PCM master or slave serial data port
256/384Fs, USB 12/24 MHz and other non standard audio system clocks
I2C interface

http://www.everest-semi.com/pdf/ES8311%20PB.pdf

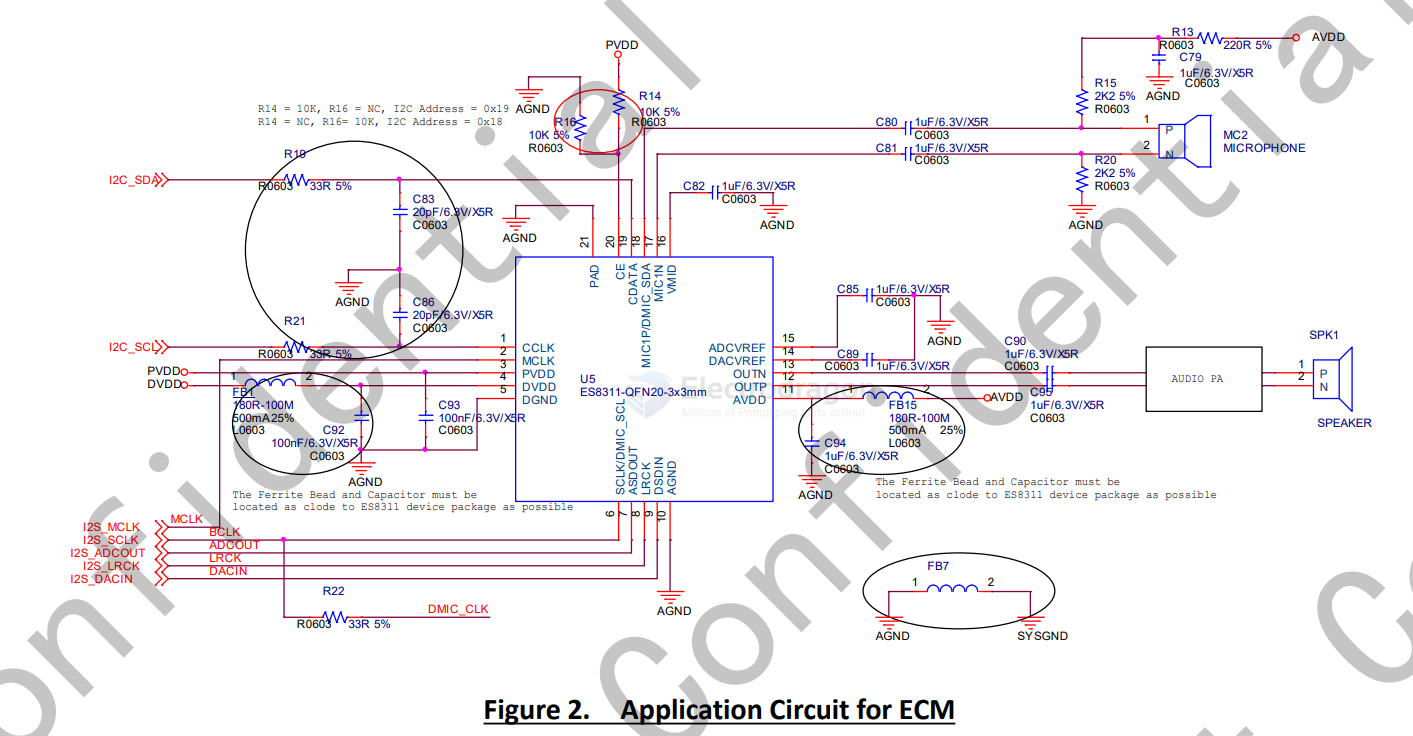

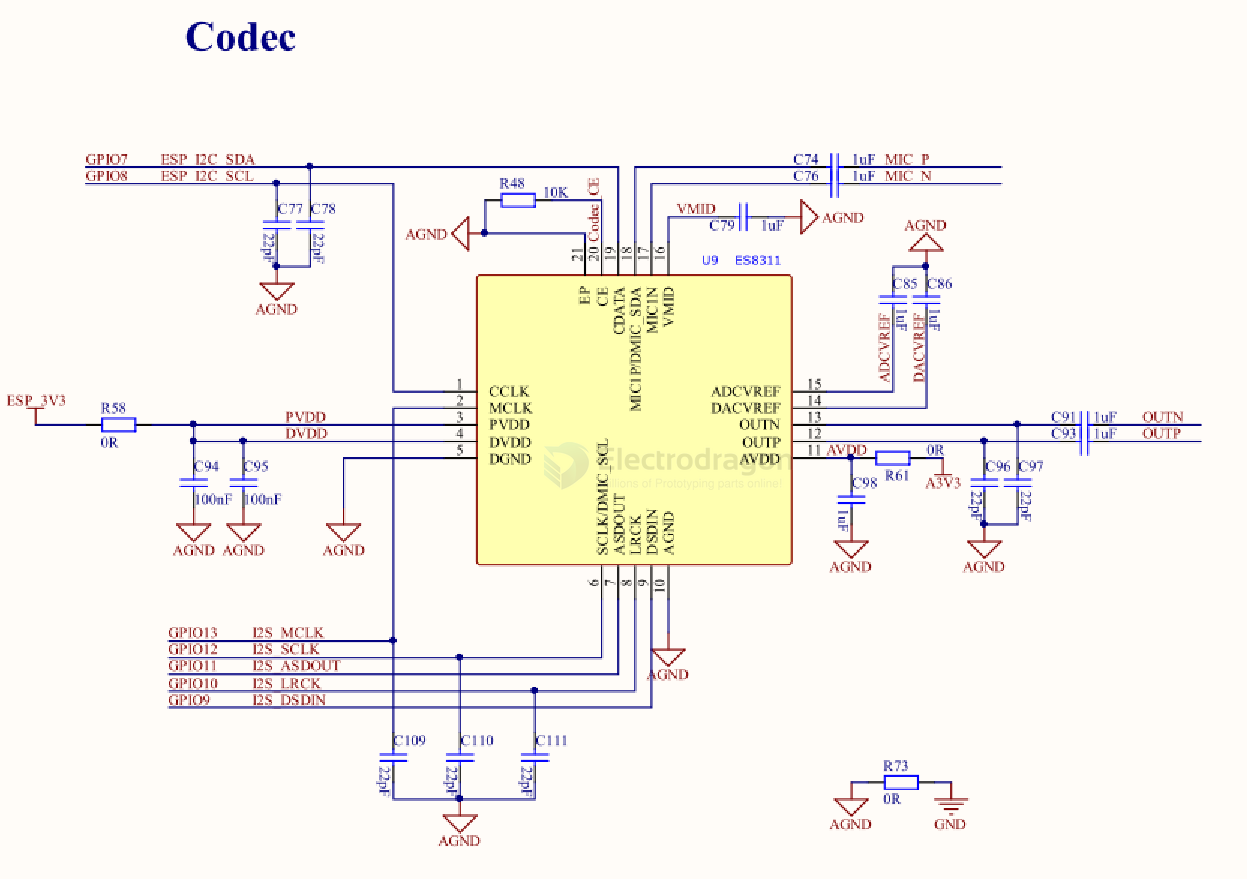

pins to ESP32-S3

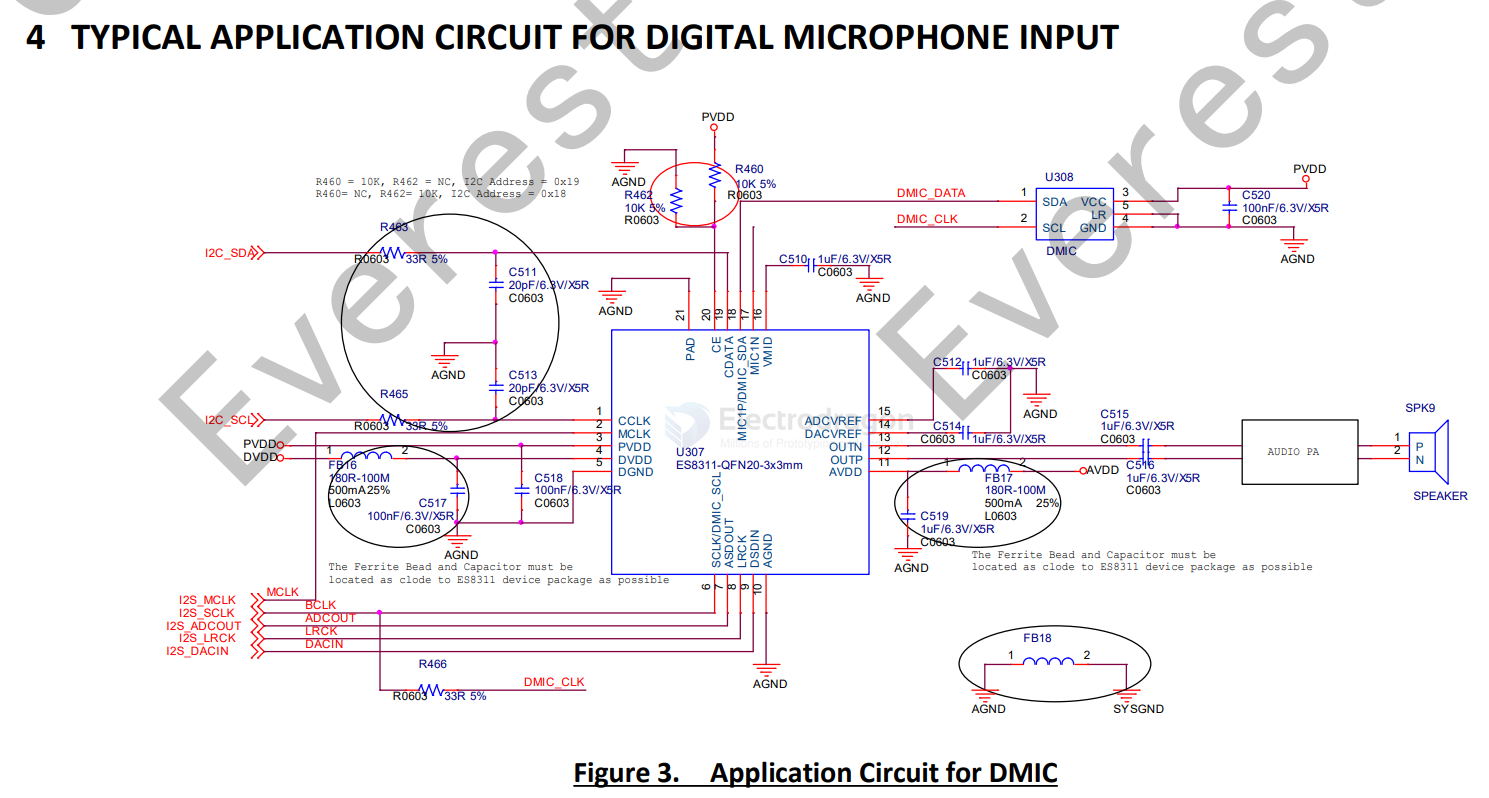

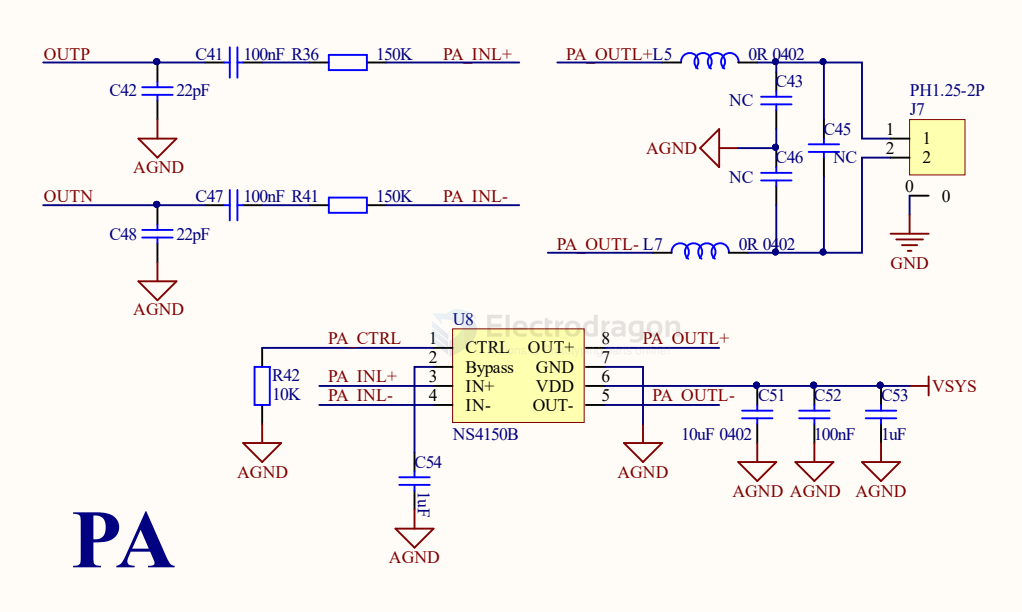

ESP32S3开发板（16MFLASH) - ES8311-NS4150B-CODEC音频模块 - 说明
GPIO_NUM_5 -- SDA -- 串口数据信号线
GPIO_NUM_4 -- SCL -- 串行数据位时钟/DMIC位时钟
GPIO_NUM_6 -- MCLK -- 主时钟
GPIO_NUM_14 -- SCLK -- 位时钟
GPIO_NUM_11 -- DIN -- 数据输入
GPIO_NUM_12 -- LRCK -- 片选
GPIO_NUM_13 -- DOUT -- 数据输出
5V/5Vin（如有供电引脚） -- SV -- 电源，NS4150B音频功放供电
GND -- GND -- 负极/接地

ref

everest-semi-dat

ES8311-dat

ES8311 -

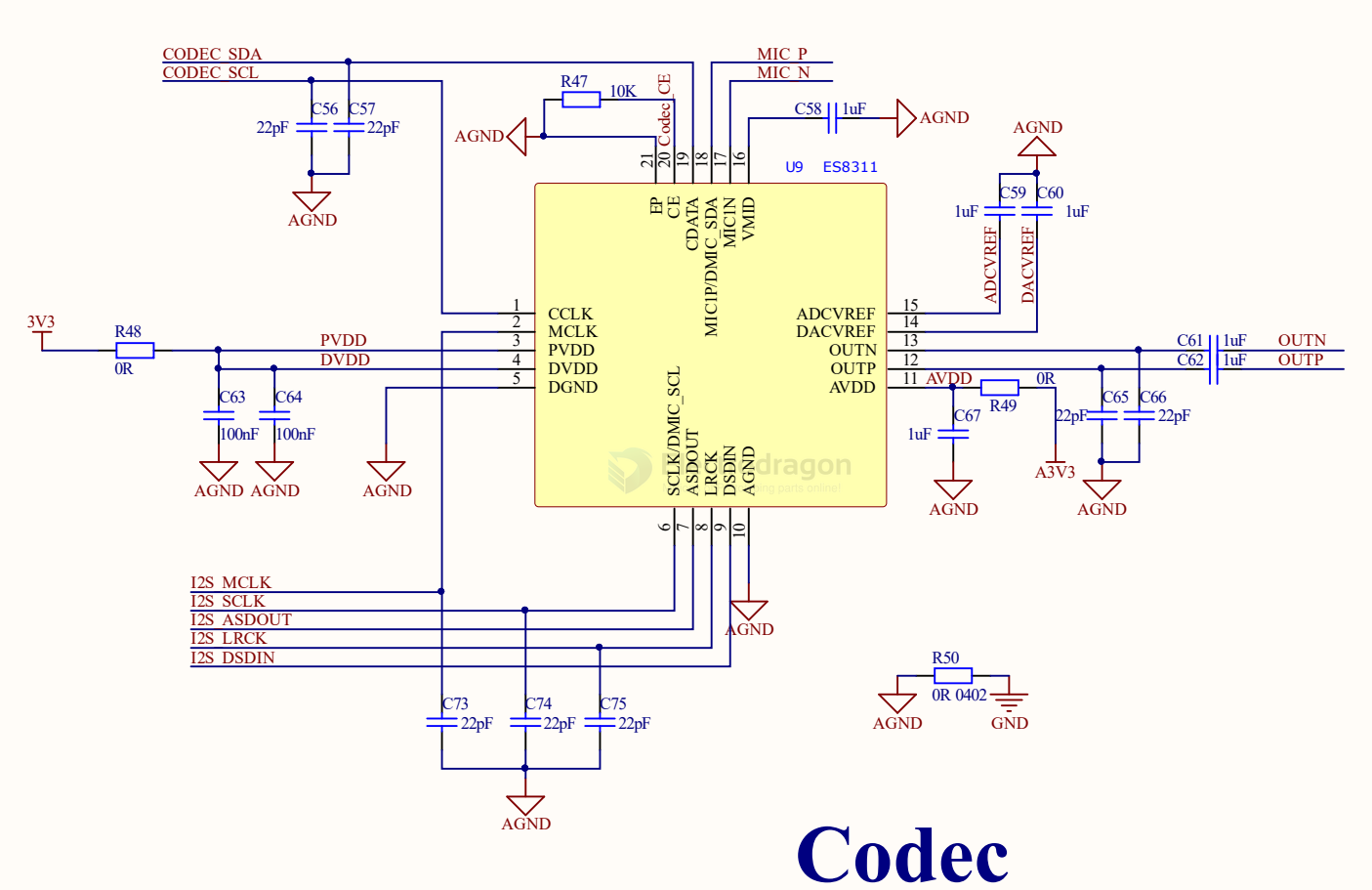

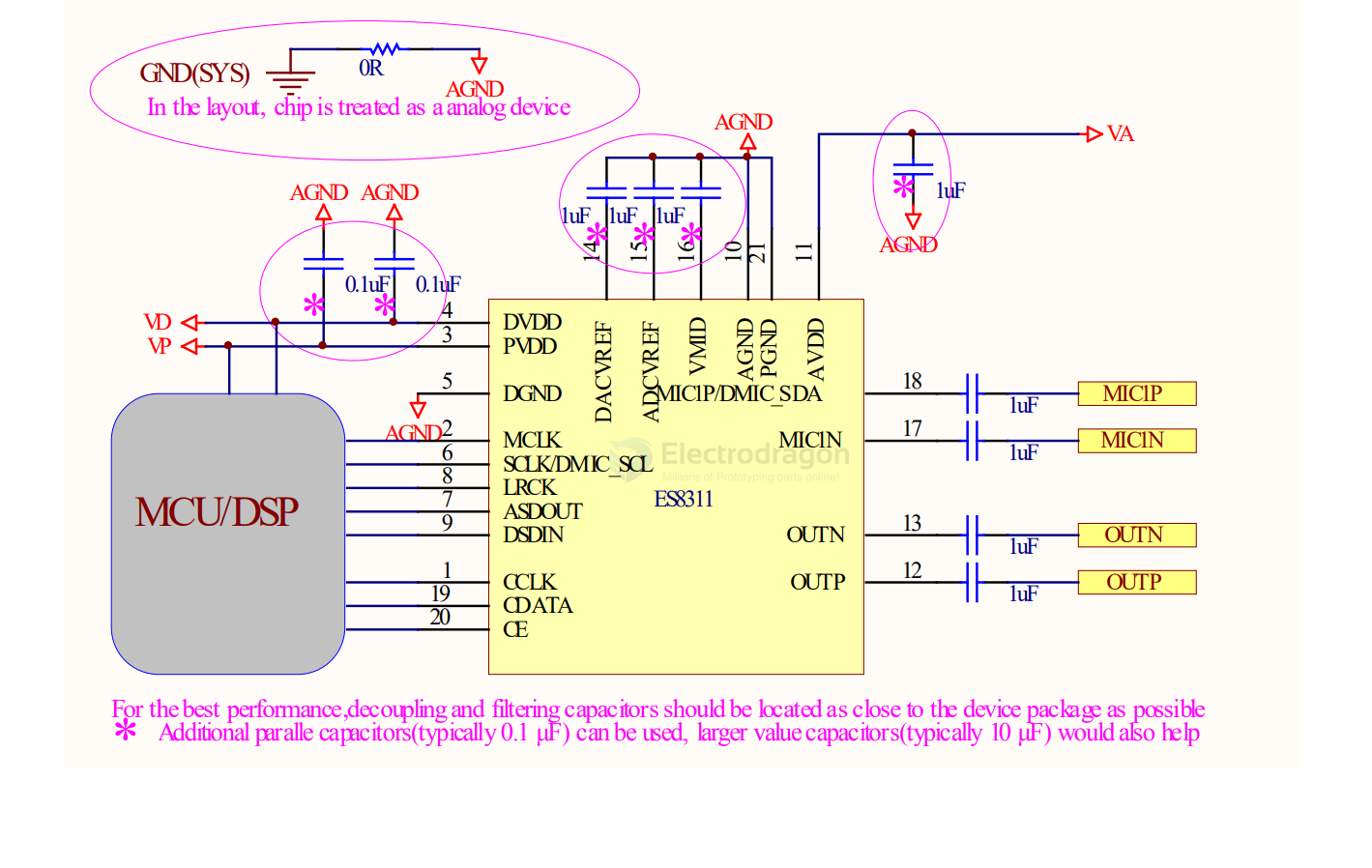

The ES8311 is a low-power mono audio codec with fully differential output and headphone amplifier, as well as analog inputs that are programmable in fully differential configurations.

The record path of the ES8311 contains one fully differential input, analog digitally controlled mono microphone preamplifier,and automatic gain control (ALC). Programmable filters are available during record which can remove audible noise.

The playback path includes a mono DAC, through programmable volume controls, to the fully differential output. The fully differential output of ES8311 has a capability to drive 16Ω or 32Ω headphone load.

ES8311 is optimized for voice playback/record, so that it is very suitable for surveillance and voice application, such as car DV, IPCAMERNA, DVR, NVR, Baby monitor, intelligent toy, intelligent Robert, etc.

ADC RECORD FUNCTIONS
