Low-Power-dat

low power display

• ILC1066-dat - ILC1067-dat - segment-lcd-dat

• epaper-dat

low power board

ARM1007-dat - DOD1074-dat - based on - segment-lcd-dat

DVA1002-dat - DVA1007-DAT

• https://twitter.com/electro_phoenix/status/1639160253811142656
• Loraduino low power test, sleep in 80uA

low power mode DVA1007-dat

• first init RF Lora
• then, must well initiated flash, or this cost 1-2 mA - https://github.com/LowPowerLab/SPIFlash
• turn RF Lora into sleep mode, or this cost 1-2 mA
• turn on arduino into low power mode - https://github.com/LowPowerLab/LowPower
• arduino low power, powerdown and wake up periodically

NGS1096-DAT - SIM7020-dat - NBIOT-da

• Sim7020g low power test 27ua in sleep mode, wake up by pin
• https://twitter.com/electro_phoenix/status/1640585737308622850

Flash Issue

• Please remember to use "low-power-lab" arduino library: https://github.com/LowPowerLab/SPIFlash
• install the library: flash.initialize()
• https://github.com/Edragon/Arduino-main/blob/master/Sketchbook/memory/SPIFlash_LowPowerLab/SPIFlash_LowPowerLab.ino

arduino deep sleep library

• https://github.com/arduino-libraries/ArduinoLowPower
• https://www.arduino.cc/reference/en/libraries/arduino-low-power/

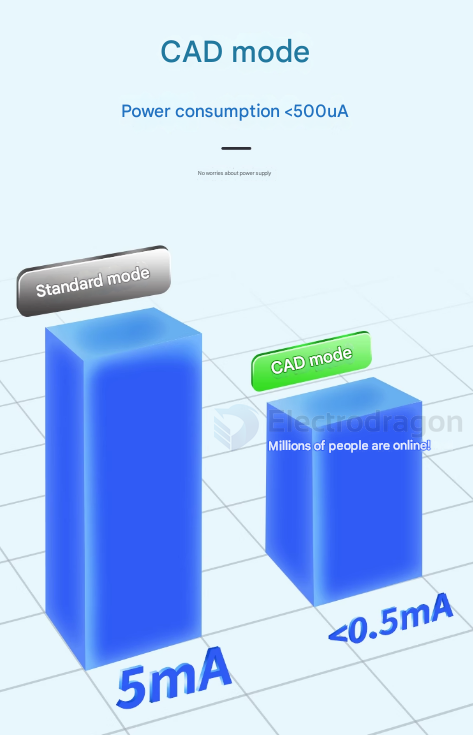

LORA CAD Mode

ref

• legacy wiki page - https://w.electrodragon.com/w/Category:Low_Power

• low power design guide power-dat/low-power-dat/AN1416.pdf
