ALU profile accessories
aluminum profile
3030 Profile: This refers to an aluminum profile that is 30mm x 30mm in cross-section.
- It is often used for smaller frames, workstations, and lighter structural applications.
4040 Profile: This refers to an aluminum profile that is 40mm x 40mm in cross-section.
- It is typically used for slightly larger and more robust frames and structures, ideal for heavier-duty applications or larger equipment.

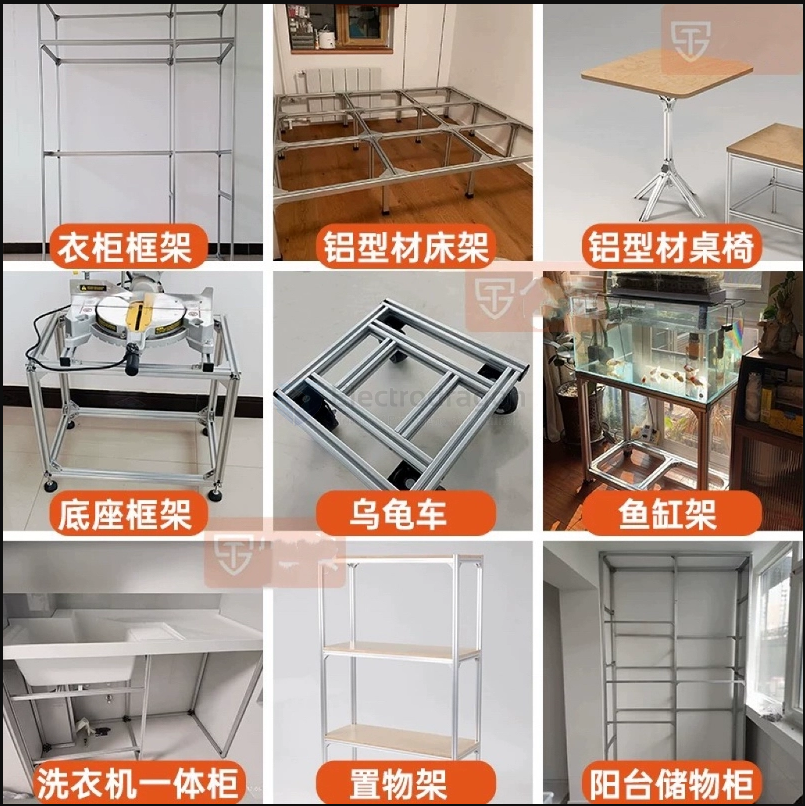

Aluminum Extrusion Profiles
| Profile Type | Dimensions (mm) | Typical Applications |
|---|---|---|
| 2020 | 20x20 | Lightweight frames, 3D printer structures, enclosures |
| 2040 | 20x40 | Machine guards, small CNC frames, automation projects |
| 3030 | 30x30 | Medium-duty frames, workbenches, conveyor systems |
| 3060 | 30x60 | Robot frames, furniture, machine structures |
| 4040 | 40x40 | Industrial automation, machine bases, heavy-duty structures |
| 4080 | 40x80 | Large machine frames, CNC machines, conveyor systems |
| 4545 | 45x45 | High-strength structures, machine enclosures |
| 4590 | 45x90 | Industrial racking, automation systems |
| 5050 | 50x50 | Structural supports, high-load frames |
| 6060 | 60x60 | Heavy-duty machine frames, CNC enclosures |
| 8080 | 80x80 | Large industrial structures, load-bearing frames |
2020
M3 T-nut + M3*10

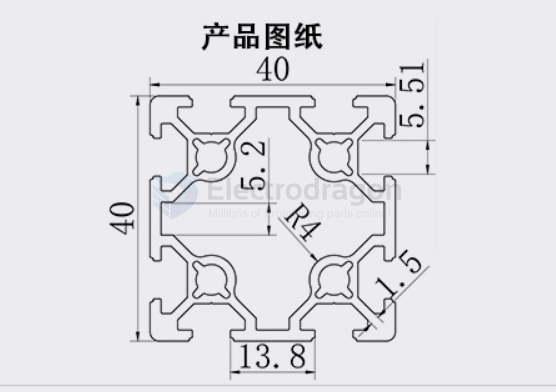

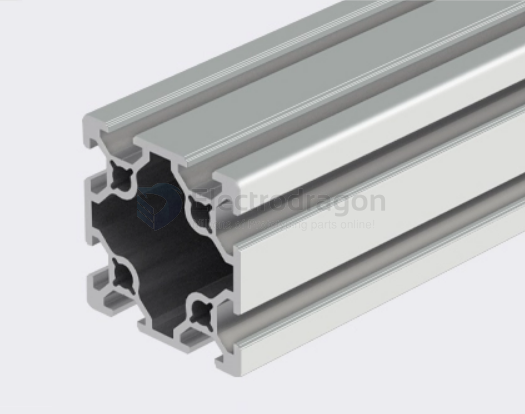

4040 dual groove
groove size 5.5 mm

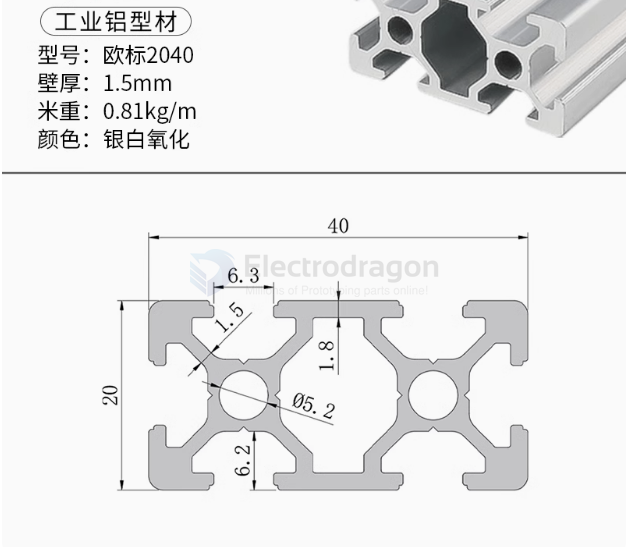

2040
- version: 2024L, 2040V
Accessories
| ALU Profile | T-nut Type | T-nut Size | Screw Type | Screw Size | Common Lengths |
|---|---|---|---|---|---|
| 1515 | T-nut | M5 | Bolt | M5 | 10mm, 20mm, 30mm |
| 2020 | T-nut | M5 | Bolt | M5 | 10mm, 20mm, 30mm |
| 4040 | T-nut | M6 | Bolt | M6 | 10mm, 20mm, 30mm, 40mm |
If you want to use M3 screws with larger extrusions like 1515, 2020, or 4040, you would need to check if there are smaller T-nuts available for those profiles that are designed to accept M3 screws. Generally, M5 or M6 screws are more common in those sizes.
