Method A — Barbed Fitting (Most Common)

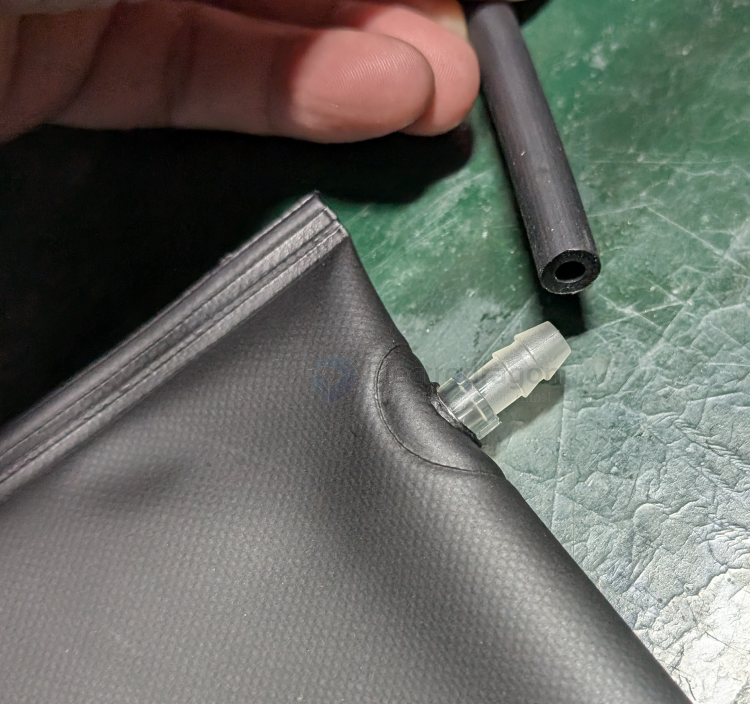

Barbed fittings grip tubing using ridges.
-
Steps:
- Find a barbed nozzle adapter matching the tube’s inner diameter (ID 6 mm).
- Push the tube onto the barb until it fully covers the ridges.
- Optionally add a hose clamp for extra security.
- Advantages: Simple, reliable for pressure under ~2–3 bar.
Example:
For ID 6 mm tubing, use a 6 mm barbed nozzle adapter.
Method B — Compression Fitting
Compression fittings create a tight seal without clamps.
-
Steps:
- Insert the tube into the fitting.
- Tighten the compression nut to seal.
- Advantages: Good for high pressure, removable.
- Disadvantages: Requires matching fitting size and nut.
Method C — Threaded Adapter with Tube Connector
If the nozzle has a threaded output:
- Use a threaded adapter.
- Attach a barbed or compression fitting.
- Attach tubing.
Method D — Quick-Connect Fittings
Useful if frequent disconnection is needed.
- Steps: Push the tube into a quick-connect nozzle adapter until it clicks.
- Advantages: Fast connection/disconnection.
3. Extra Tips
- Match ID 6 mm for the fitting/barb size for an OD 8 mm, ID 6 mm tube.
- Use a hose clamp for high pressure or vibration.
- Lubricate the tube end with a small amount of water or silicone grease to make fitting easier.
- Cut tubing squarely for a tight seal.
Summary Table:
| Method | Pros | Cons |
|---|---|---|
| Barbed | Simple, reliable, inexpensive | Needs hose clamp for high pressure |
| Compression | High pressure capable, removable | Requires fitting & nut |
| Threaded | Versatile | Needs adapter |
| Quick-Connect | Fast disconnection | Higher cost |
common tube fitting
