Solder Paste Thinner: Essential Guidelines

The liquid used to adjust the viscosity of solder paste is professionally referred to as Solder Paste Thinner (or Flux Thinner).

CRITICAL WARNING: In professional electronics manufacturing, it is generally discouraged to thin solder paste. Solder paste is a carefully engineered chemical mixture. If it has dried out or expired, the flux activity and the rheology (flow characteristics) have already been degraded. Adding a thinner often results in:

  • Bridge defects during reflow.
  • Solder beading or "tombstoning" due to altered wetting properties.
  • Voids in the solder joint caused by improper solvent evaporation.

1. Composition

Specialized solder paste thinners typically consist of:

  • Glycol Ethers (e.g., Propylene Glycol Ethers): These are the primary solvents that dissolve the resin/rosin binder.
  • Surfactants: Added to maintain the thixotropic properties (the ability to flow under shear stress but stay stationary when idle).
  • Stability Agents: Prevent the metal particles from settling out of the flux medium.

2. Best Practices for Use

If you must attempt to salvage a paste (for non-critical prototyping), follow these strict rules:

  • Use Only Professional Grade Thinner: Do not use general solvents like acetone, lacquer thinner, or standard hardware store cleaners. These will chemically destroy the flux.
  • Minimal Dosage: Add only 1% to 3% by weight. Adding too much will cause the paste to slump, leading to shorts between fine-pitch pads.
  • Homogeneous Mixing: Use a mechanical or manual spatula to stir the paste for at least 3-5 minutes until the consistency is uniform.
  • Stabilization: Let the paste sit for at least 30 minutes after mixing before using it to allow the chemical solvents to distribute evenly.

3. Troubleshooting "Dry" Paste

Before reaching for a thinner, check these common issues:

  • Temperature (The #1 Culprit): Solder paste must be stored in a refrigerator (typically 2°C–10°C). It must be brought to room temperature (naturally, in its container) for at least 2–4 hours before opening. If opened while cold, moisture from the air will condense into the paste, causing it to appear dry or gritty.
  • Shelf Life: Check the expiration date. Once the activator in the flux is exhausted, no amount of thinner will restore the paste's ability to create a reliable solder joint.

4. Important Distinction

  • Thinners: Are for modifying the paste's viscosity.
  • Cleaners (IPA/Alcohol): Are for removing flux residues after soldering or cleaning stencils. Never mix these into your solder paste.

solder dross issue

How to Fix "Grey" or Oxidized Solder Joints

Grey joints are usually caused by overheating (burning off the flux), underheating (cold joints), or slow cooling. Follow these steps to "refresh" the joints:

1. The "Flux-and-Reflow" Method (Best for SMD)

If the joint is just dull but the component is correctly aligned, Flux is your best friend.

  • Apply Tacky Flux: Cover the grey joints with a generous amount of high-quality "no-clean" or RMA tacky flux (e.g., Amtech NC-559).
  • Re-apply Heat: * Hot Air Station: Set to ~280°C - 300°C with low airflow. Heat the area until you see the solder turn liquid and "jump" into a shiny, spherical shape.
    • Soldering Iron: Touch the joint briefly with a clean, tinned tip. The flux will smoke and chemically "eat" the grey oxide layer.
  • Why it works: Flux is a reducing agent. It chemically removes the oxygen from the "grey" tin-oxide and allows the pure metal to flow together again.

What happens inside the can at $30^\circ\text{C}$?

  1. Flux Separation (The "Oil" Effect): Solder paste is a suspension of heavy metal spheres in a lighter chemical flux. At $30^\circ\text{C}$, the flux becomes less viscous. The heavy solder powder will settle to the bottom, and a yellowish, oily liquid (the flux) will rise to the top.

  2. Chemical Activity Loss: Flux is designed to "activate" (clean oxides) at high temperatures. However, at $30^\circ\text{C}$, a slow chemical reaction begins prematurely. The flux starts "working" on the solder powder while it's still in the can, exhausting its strength before it ever touches your PCB.

  3. Powder Oxidation: Even in a "sealed" plastic can, there is trapped air (oxygen) inside. Heat acts as a catalyst. The microscopic surface area of the solder spheres is massive, and $30^\circ\text{C}$ provides enough energy for a thin layer of Tin Oxide ($SnO$ or $SnO_2$) to form on every single sphere.

How to tell if your paste is "dead"

Before using it on a real project, perform these three checks:

  • The Stir Test: Open the can. If there is a thick layer of liquid on top, try to stir it back in. If it remains "chunky," "dry," or like "wet sand" that won't smooth out, the flux has evaporated or polymerized. Throw it away.
  • The Slump Test: Apply a small amount to a surface. If it spreads out and loses its shape (slumps) at room temperature, it will likely cause "solder bridges" (连锡) during reflow.
  • The Solder Ball Test: Put a small dab on a piece of scrap PCB and heat it with a heat gun.
    • Good: The paste melts into one single, shiny, beautiful silver ball.
    • Bad: The paste melts but leaves behind dozens of tiny "satellites" (small grey dust-like balls) around the main drop. This is a sign of heavy oxidation.

Comparison of Storage Conditions

Storage Temp Expected Shelf Life Resulting Quality
$0\text{--}10^\circ\text{C}$ (Fridge) 6–12 Months Professional Grade. Shiny joints, minimal dross.
$20\text{--}25^\circ\text{C}$ (Room) 1–2 Months Acceptable for DIY. May require extra flux.
$30^\circ\text{C}+$ (Warm) < 3 Weeks Poor. High risk of grey joints and solder beads.

Can you fix it?

If you must use this paste and it has separated: 1. Manual Homogenization: Stir it vigorously for at least 2–3 minutes with a clean spatula until it looks like creamy peanut butter. 2. Add "Fresh" Flux: If the paste feels dry, add a few drops of high-quality Tacky Flux (like NC-559) and mix it in. This can sometimes "rescue" oxidized powder by providing the extra cleaning power needed to break through the $30^\circ\text{C}$ oxide layer.

“Solder paste should be more viscous so it doesn’t spread or drip.”

  • More viscous → thicker, stickier, flows slowly
    → Good for solder paste — it stays where you apply it.

  • Diluted → thinned by adding liquid (like flux or solvent)
    → Not good — it becomes too runny and won’t hold components well.

Low temperature soldering paste

Low temperature soldering paste is a type of solder paste designed to melt and flow at lower temperatures than standard solder pastes. Here are its main features:

  • Melting Point: Typically melts between 130°C and 180°C, compared to standard lead-free solder pastes which melt around 217°C.
  • Composition: Often contains bismuth-based alloys (e.g., Sn42/Bi58) instead of traditional tin-silver-copper (SAC) alloys.
  • Applications: Ideal for temperature-sensitive components, rework, or double-sided PCB assembly where high heat could dam-Age parts.
  • Reduced Thermal Stress: Minimizes risk of warping or dam-Aging PCBs and components.
  • Energy Saving: Lower reflow oven temperatures reduce energy consumption.
  • Compatibility: Useful for mixed-technology boards or assemblies with plastic connectors and LEDs.

Solder Paste Types and Applications

Solder Paste Model Composition Powder Type Application/Notes
Mobile Repair GY618B Sn62.8-Pb36.8-Ag0.4 Type 4 For mobile phone repair
A-888 Sn63-Pb37 Type 3 resistors, capacitors, simple IC PCBs
A-888 Sn63-Pb37 Type 4 resistors, capacitors, fine-pitch/multi-pin IC PCBs
SMT Chip A-888 Sn63-Pb37 Type 5 resistors, capacitors, dense/multi-pin IC PCBs
GY-626B Sn62.9-Pb36.9-Ag0.2 Type 4 QFN type PCBs
GY-618B-B Sn62.8-Pb36.8-Ag0.4 Type 4 BGA pack-Age PCBs
LED Chip GY361 Sn55-Pb45 Type 3 LED lamps, strips, and tapes
GY638A Sn60-Pb40 Type 3 Performance superior to GY361

target

Common type Solder Paste

melting point tin content Note
138 C 42% ultra-low temperature, bismuth-based, for special low-temp soldering
150 C 42% low temperature, bismuth-based, for temperature-sensitive components
183 C 63% best for most common PCB, small spacing, high parts density
217 C 99.3% lead-free, SAC305 alloy, standard for RoHS compliant PCBs

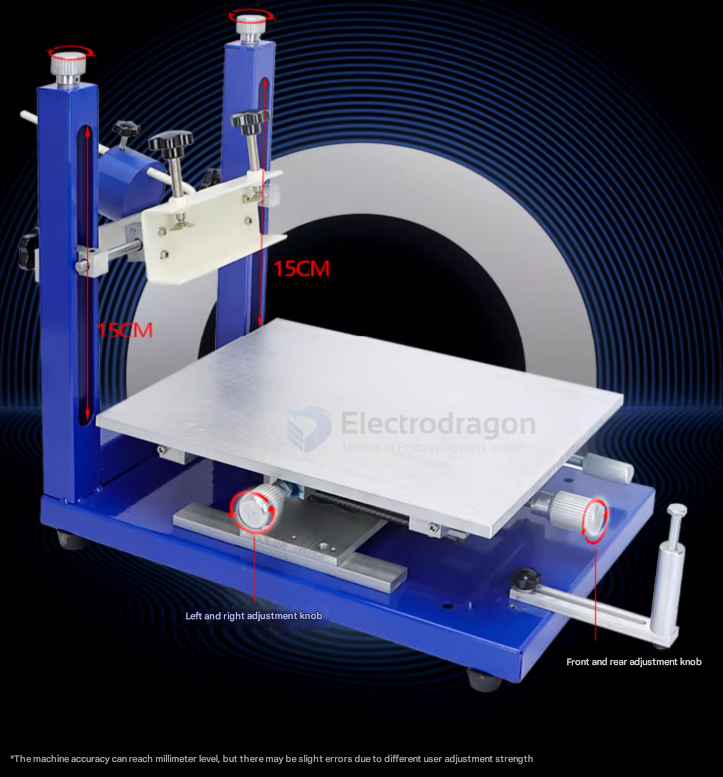

solder paste printer
