camera-analog-dat

• camera-digital-dat

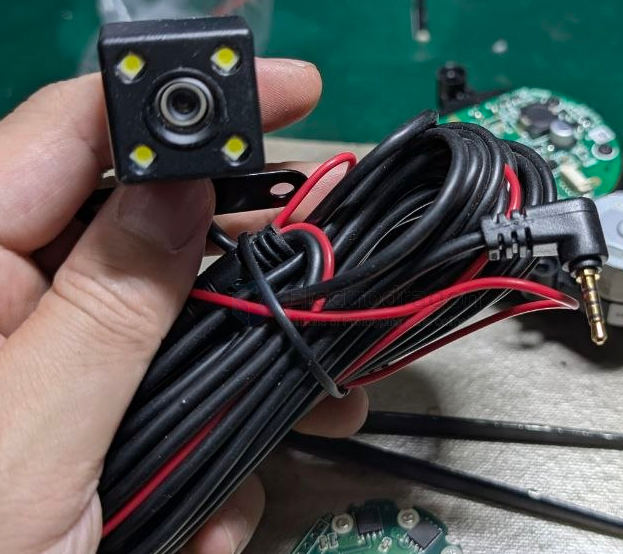

common analog sensor for car / truck surveillance

use - conn-audio-dat == signal normally == video out (CVBS) + power + GND

RC Specified Camera

• camera-analog-dat - CaddxFPV-dat - runCam-dat

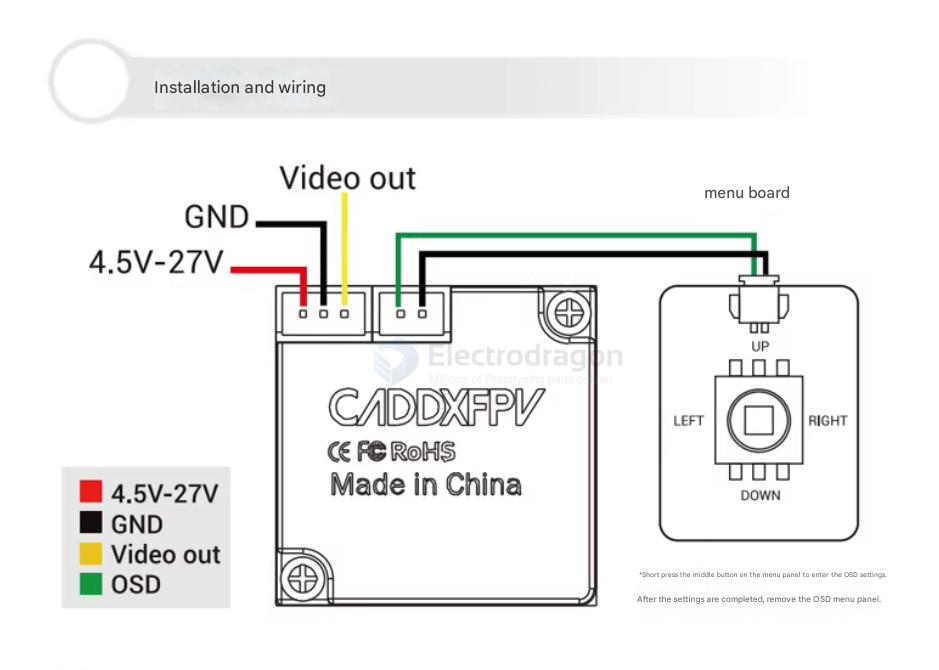

common pin out Analog

• MENU

• Video

• GND
• 5-36V

common camera cable

• cable-dat

• 3P 1.0 mm - ANT - X12-dat - SH1.0-dat

• 3P 1.25 mm - caddxFPV-dat - ratel-pro

ref

• sensor-Camera-dat
