driver
-
AiP1948/AiP1944 is a dedicated LED display driver controller IC with a 3-wire serial interface, supporting common-cathode 16 segments × 16 digits or 24 segments × 8 digits, and a 16×2 key matrix scan. It integrates MCU digital interface, data latch, RC oscillator, and other circuits, making it widely suitable for various LED panel applications.
主要特点

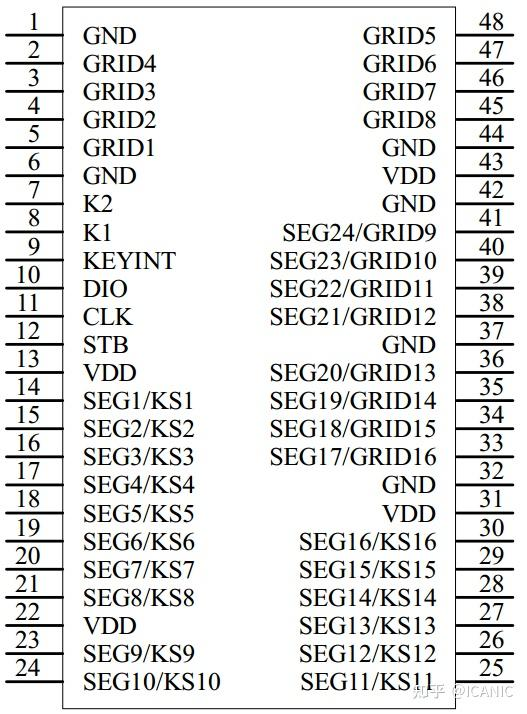

- AiP1948：SSOP48（0.635mm）

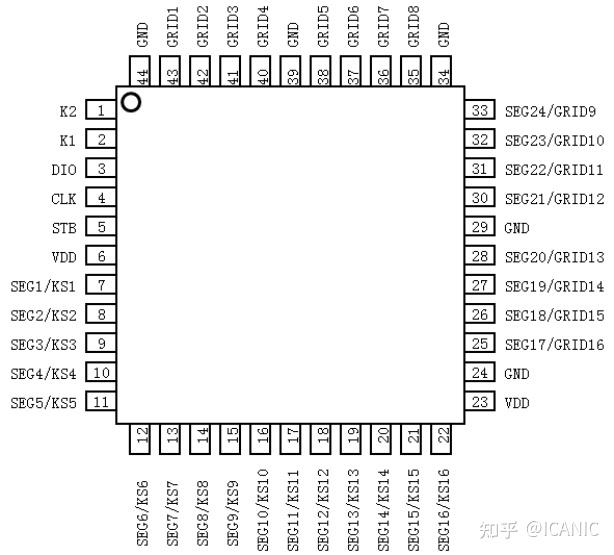

- AiP1944：LQFP44
优点
1、AiP1948/1944可驱动较多LED灯珠，最高可达16*16=256颗LED灯珠；
- AiP1948/1944 can drive a large number of LEDs, up to 16×16 = 256 LEDs.
2、AiP1948管脚KEYINT为按键中断输出，平时为高电平，有按键被按下时，在键扫周期内出现低电平脉冲；
- The KEYINT pin on AiP1948 provides key interrupt output; it is normally high, and when a key is pressed, a low-level pulse appears during the key scan cycle.
3、AiP1948/1944与AiP1628指令兼容，程序移植简单。
- AiP1948/1944 is compatible with AiP1628 instructions, making program migration simple.
