共轴双桨

DZP30共轴双桨无刷电机30克无反扭对转马达F3P 送双桨厂

propeller options

Ground Effect

  • When quad is close to surface → prop wash bounces air → airflow becomes turbulent
  • Creates unstable lift → drift or wobble sideways

→ PID Sensitivity

  • Too high P/D gains → overreact in turbulence
  • Too low I gain → can't hold position → drift

→ Throttle Resolution

  • Small throttle change indoors = big lift difference
  • Harder to keep steady near ground

prop wash

📌 What is Prop Wash?

  • Prop wash is the turbulent/dirty air created by a drone’s propellers.
  • When the drone flies into this disturbed airflow, the flight controller struggles to stabilize, causing:
    • Wobbles
    • Vibrations
    • Shaky footage

🔍 Typical Signs

  • Shaking after a quick throttle drop → sudden throttle punch.
  • Jitter when coming out of sharp turns.
  • Visible oscillations in blackbox logs.

the number of the propeller

Propeller Blade Count vs Flight Stability in FPV Drones

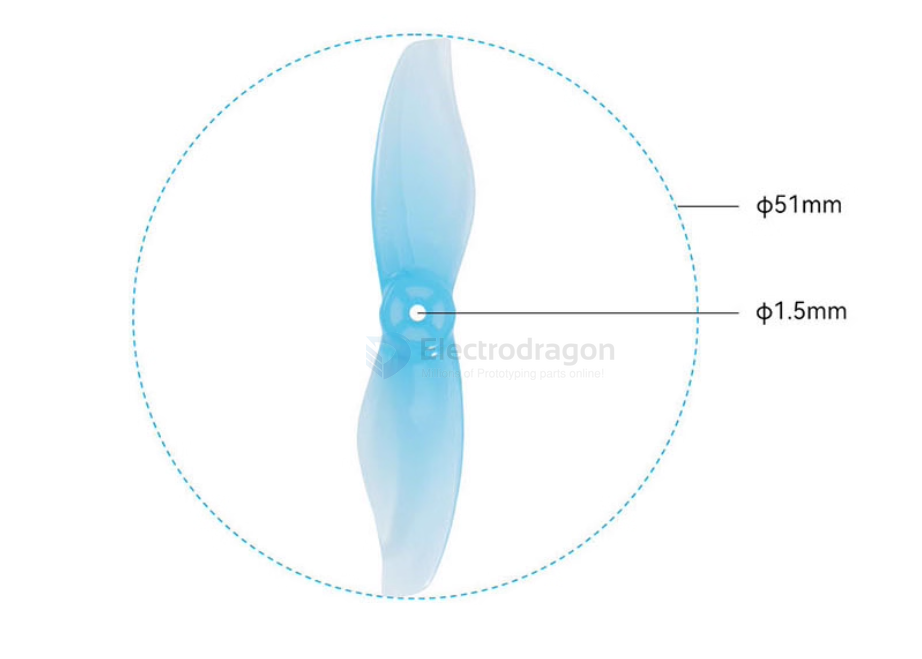

1. Two-Blade (2-blade)

  • Pros: Very efficient, longer flight time, strong thrust
  • Cons: More vibration, noisier, less stable control
  • Best for: Outdoor speed, racing, long endurance

2. Three-Blade (3-blade)

  • Pros: Good balance of thrust and efficiency, faster response, more stable than 2-blade
  • Cons: Slightly less efficient, shorter flight time than 2-blade
  • Best for: Freestyle, cinewhoop, general indoor/outdoor flying

3. Four-Blade (4-blade) / Five-Blade (5-blade)

  • Pros: Very stable, smoother at low speed, softer noise, excellent control
  • Cons: Less efficient, drains battery faster, noticeably shorter flight time
  • Best for: Indoor FPV (Tiny Whoops), precise control, stable video shooting

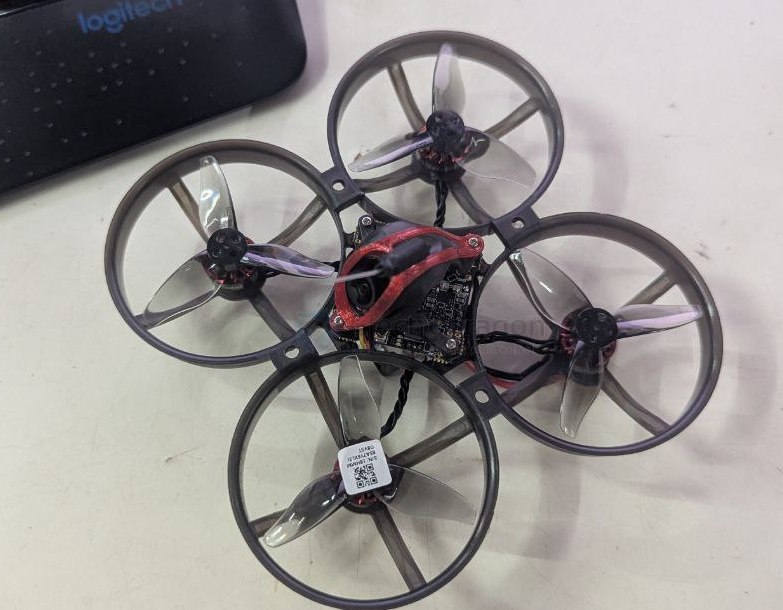

Indoor Recommendation

  • Best choice: 3-blade or 4-blade props
  • Why:
    • Indoor space is small → low speed stability and smooth control are more important
    • 4-blade or 5-blade props give “stickier” control indoors, easier to hover and move slowly
    • 3-blade is a good compromise between stability and efficiency

👉 Summary:

  • Indoor practice / fun: Use 4-blade (better stability & control)
  • Mixed indoor/outdoor: Use 3-blade (balanced performance)

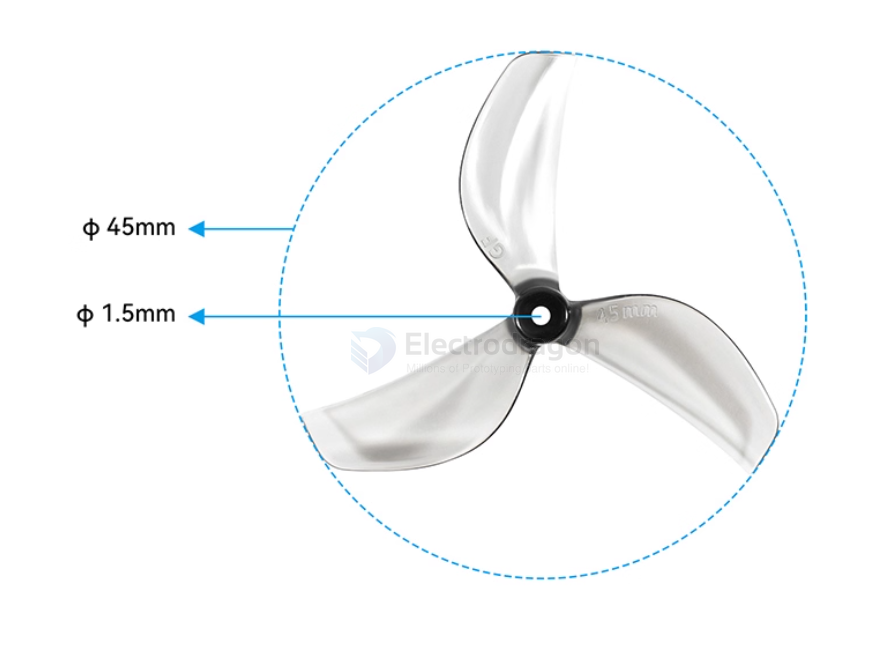

2023

Type(型号)2023 Blades(桨叶数)3 Pitch(螺距)2.3in Material (材质)PC Weight / g(重量/G)0.88g Center Hole Inner diameter(中心子内径)1.5mm、1mm Prop DiskDiameter(桨盘直径)52.2mm CenterThickness(中心厚度)5mm MaxProp Width(最大桨叶宽度)8.94mm Adaptive Motor(适配马达)1105-1108

乾丰2023三叶（4对）

EX1103 KV11000【CW黑线带红点】

HQProp DT2925 五叶桨 DJI AVATA穿越机FPV无人机桨叶螺旋桨

型号：2.9X2.5X5 长度:2.9英寸 螺距：2.5英寸 叶片：5片 材质:PC 重量：2.2G 桨盘直径:10.6mm 桨盘厚度：5.3mm 轴：2.3/2/2.3mm 适配器：无

Gemfan 乾丰2925 5叶 FPV穿越机螺旋桨3寸桨叶 适配大疆AVATA机子

Gemfan2925-5 尺寸：2.9 in螺距：2.5in 材质：pc重量：2.4g（单支） 中心安装孔径：2mm螺丝固定孔距：5mm 颜色：透灰，猛男粉，荧光黄 推荐电机：DJIAVATA/1507/2004 起飞重量：400g 包装方式：2CW+2CCW

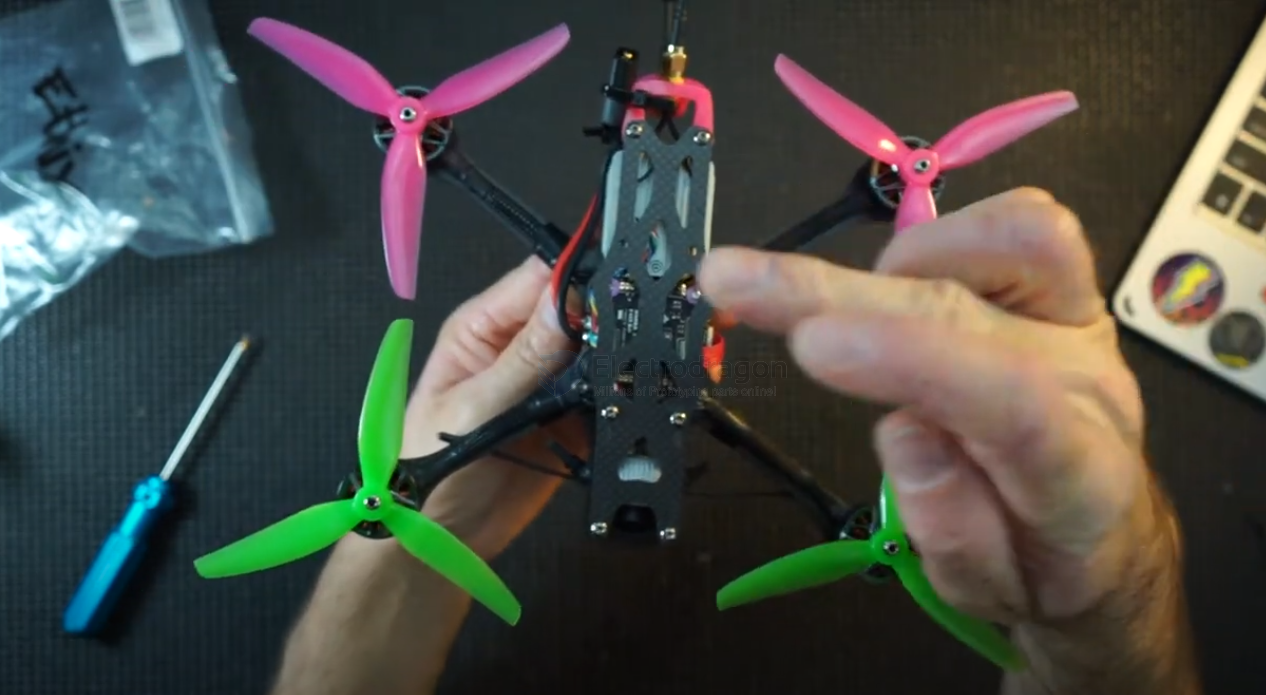

Correct setup

WRONG SETUP

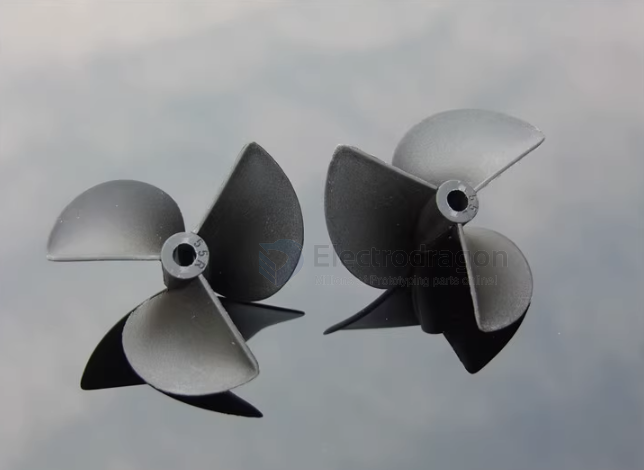

boat propeller

ref
