虚拟机下载地址如下（较大 有1.6G）： 可编译Tina的Oraclr VM VirtualBox Ubuntu14.04虚拟机 == pass == 123456

apt-get install gcc binutils bzip2 flex python perl make ia32-libs find grep diff unzip gawk getopt subversion libz-dev libc headers

sudo apt-get install build-essential subversion git-core libncurses5-dev zlib1g-dev gawk flex quilt libssl-dev xsltproc libxml-parser-perl mercurial bzr ecj cvs unzip lib32z1 lib32z1-dev lib32stdc++6 libstdc++6 -y

TINA D1-H

$ mkdir tina-d1-h
$ cd tina-d1-h

使用 repo init 命令初始化仓库，tina-d1-h 的仓库地址是 https://sdk.aw-ol.com/git_repo/D1_Tina_Open/manifest.git 需要执行命令：

$ repo init -u https://sdk.aw-ol.com/git_repo/D1_Tina_Open/manifest.git -b master -m tina-d1-h.xml

如果提示 Username for 'https://sdk.aw-ol.com': 请输入 全志在线开发者论坛 的用户名和密码。（注：需要全志在线开发者论坛LV2等级以上用户才有权限拉取 SDK）

root@ubuntu14:/home/vb/tina-d1-h# repo init -u https://sdk.aw-ol.com/git_repo/D1_Tina_Open/manifest.git -b master -m tina-d1-h.xml
Get https://sdk.aw-ol.com/git_repo/D1_Tina_Open/manifest.git
% Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                Dload  Upload   Total   Spent    Left  Speed
0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
curl: (22) The requested URL returned error: 401 Unauthorized
Server does not provide clone.bundle; ignoring.
Username for 'https://sdk.aw-ol.com':

note

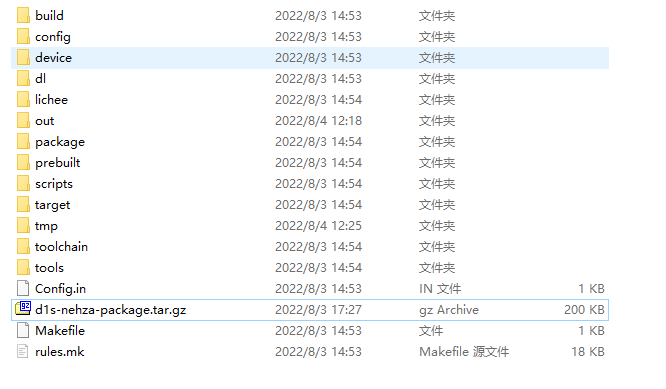

V1.0 版本硬件安装 D1s Nezha 补丁包

下载下来的 SDK 默认是不支持 D1s Nezha v1.0 开发板的，需要额外安装补丁包以支持 D1s Nezha v1.0 开发板。

ADB login

  • adb-dat

    C:\System> adb shell

    • daemon not running. starting it now on port 5037 *
    • daemon started successfully *

    |_ ||| ___ _ _ | | || __ _ _ _ _ | | _ | || | | |__ | || || | ||'| | | | || | || _ | |_____|||||||__||,|

    || |||||||| Tina is Based on OpenWrt!

    Tina Linux

    root@TinaLinux:/#

ref
