filter
LTC1060 - Universal Dual Filter Building Block
The LTC® 1060 consists of two high performance, switched capacitor filters.
Each filter, together with 2 to 5 resistors, can produce various 2nd order filter functions such as lowpass, bandpass, highpass notch and allpass.
The center frequency of these functions can be tuned by an external clock or by an external clock and resistor ratio. Up to 4th order full biquadratic functions can be achieved by cascading the two filter blocks.
Any of the classical filter configurations (like Butterworth, Chebyshev, Bessel, Cauer) can be formed.
bandgap reference
LT1460 - Micropower Precision Series Reference Family
The LT®1460 is a micropower bandgap reference that combines very high accuracy and low drift with low power dissipation and small package size.
Power
LT1963A Series - 1.5A, Low Noise, Fast Transient Response LDO Regulators
LT3029 - Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear Regulator
Coulomb Counter
Coulomb Counter/Battery Gas Gauge - LTC4150-dat
Coulomb-Counter-dat - battery-charger-dat - Coulomb Counter/Battery Gas Gauge - LTC4150-dat - linear-technology-dat

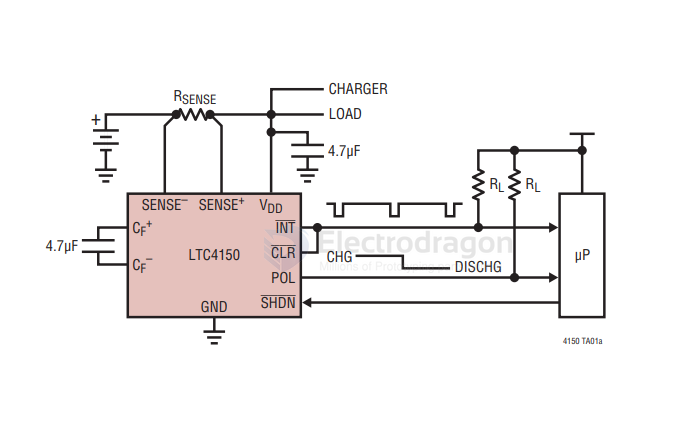

The LTC®4150 measures battery depletion and charging in handheld PC and portable product applications. The device monitors current through an external sense resistor between the battery’s positive terminal and the battery’s load or charger. A voltage-to-frequency converter transforms the current sense voltage into a series of output pulses at the interrupt pin. These pulses correspond to a fi xed quantity of charge fl owing into or out of the battery. The part also indicates charge polarity as the battery is depleted or charged.
The LTC4150 is intended for 1-cell or 2-cell Li-Ion and 3-cell to 6-cell NiCd or NiMH applications.
