The Atmel® ATmega128A is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega128A achieves throughputs close to 1MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.

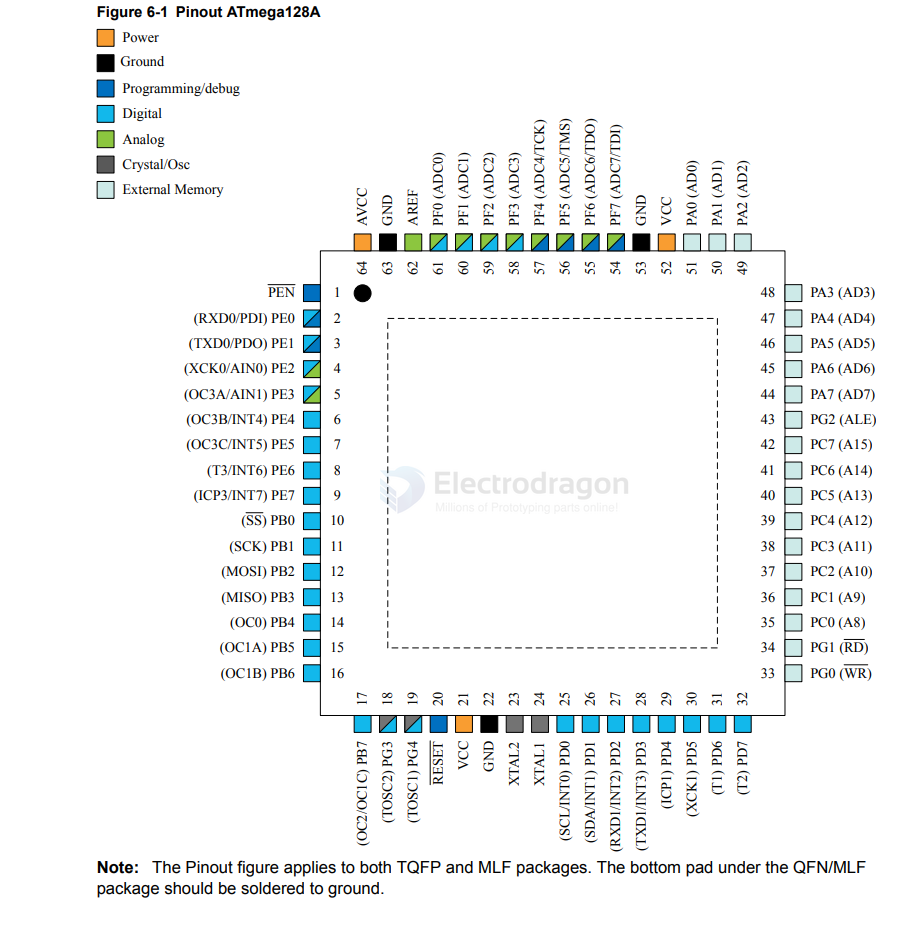

64-pin
| Feature / Specification | ATmega328 | ATmega128A |
|---|---|---|
| Core Architecture | 8-bit AVR RISC | 8-bit AVR RISC |
| Flash Memory (Program) | 32 KB | 128 KB |
| SRAM (Internal Data) | 2 KB | 4 KB |
| EEPROM | 1 KB | 4 KB |
| Max. Clock Frequency | 20 MHz | 16 MHz |
| Max. Throughput | 20 MIPS | 16 MIPS |
| Programmable I/O Lines | 23 | 53 |
| Pin Count & Packages | 28-pin PDIP, 32-lead TQFP/QFN | 64-lead TQFP/QFN |
| Timers / Counters | 3 (2 x 8-bit, 1 x 16-bit) | 4 (2 x 8-bit, 2 x 16-bit) |
| PWM Channels | 6 | 8 |
| ADC Channels | 6 channels (PDIP) / 8 channels (TQFP) | 8 channels (includes 7 differential) |
| ADC Resolution | 10-bit | 10-bit |
| USART (Serial) | 1 | 2 |
| SPI Interface | 1 | 1 |
| I2C (TWI) Interface | 1 | 1 |
| On-Chip Debugging | debugWIRE | JTAG |
| External Memory Support | No | Yes (up to 64 KB) |
| Operating Voltage Range | 1.8 V - 5.5 V | 2.7 V - 5.5 V |
