CH559

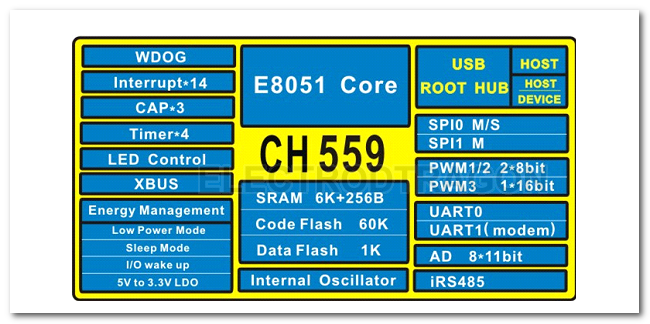

- E8051, 6K +256B SRAM, 60K Code, 1K Data Flash
- UART0, UART1, SPI0 M/S, SPI1 M

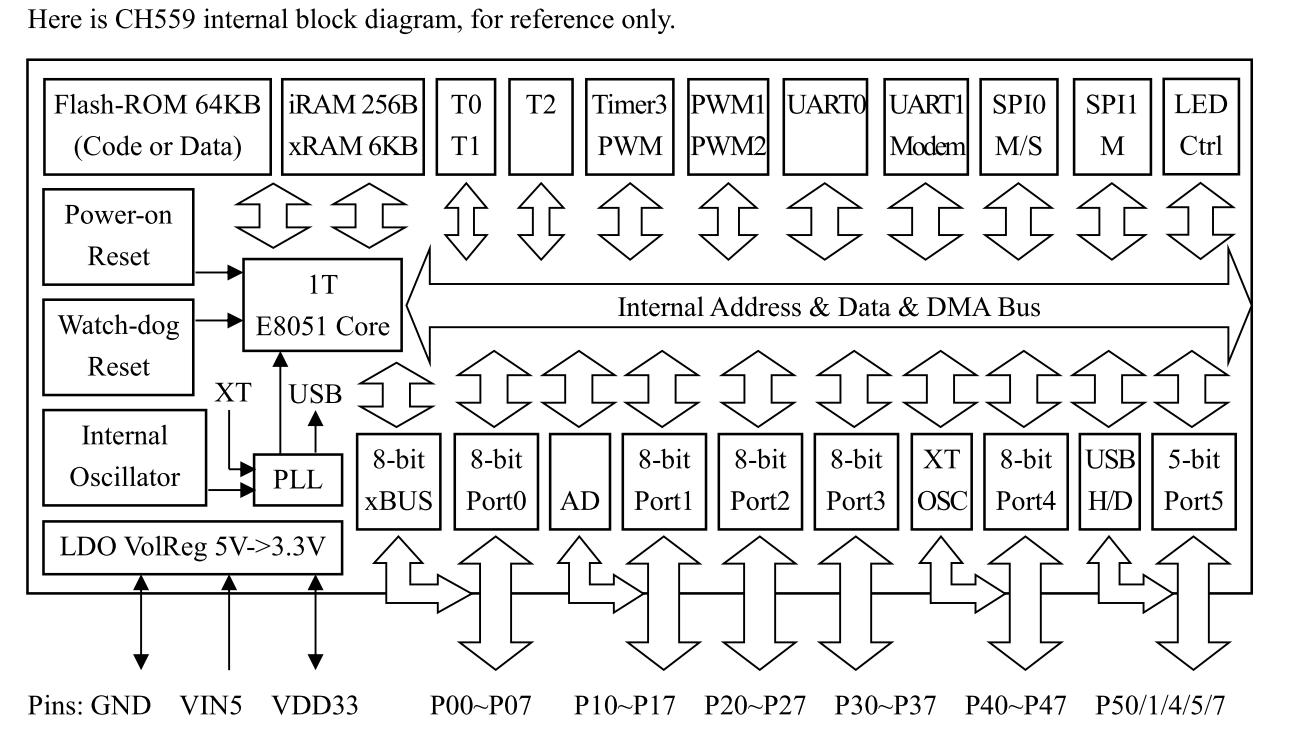

Info
Pin Info
- P12 = PWM3
- P23 = PWM1
- P25 = PWM2
LED-CTRL: LED control card interface, built-in 4-level FIFO, supports DMA mode, and 1/2/4-channel data interface, high speed rate up to Fsys/2.
P32 P33 P34 P44 = LED 0 LED1 LEDC LED3
- P42 = LED5/PWM3_
- P43 = LED6/PWM1_

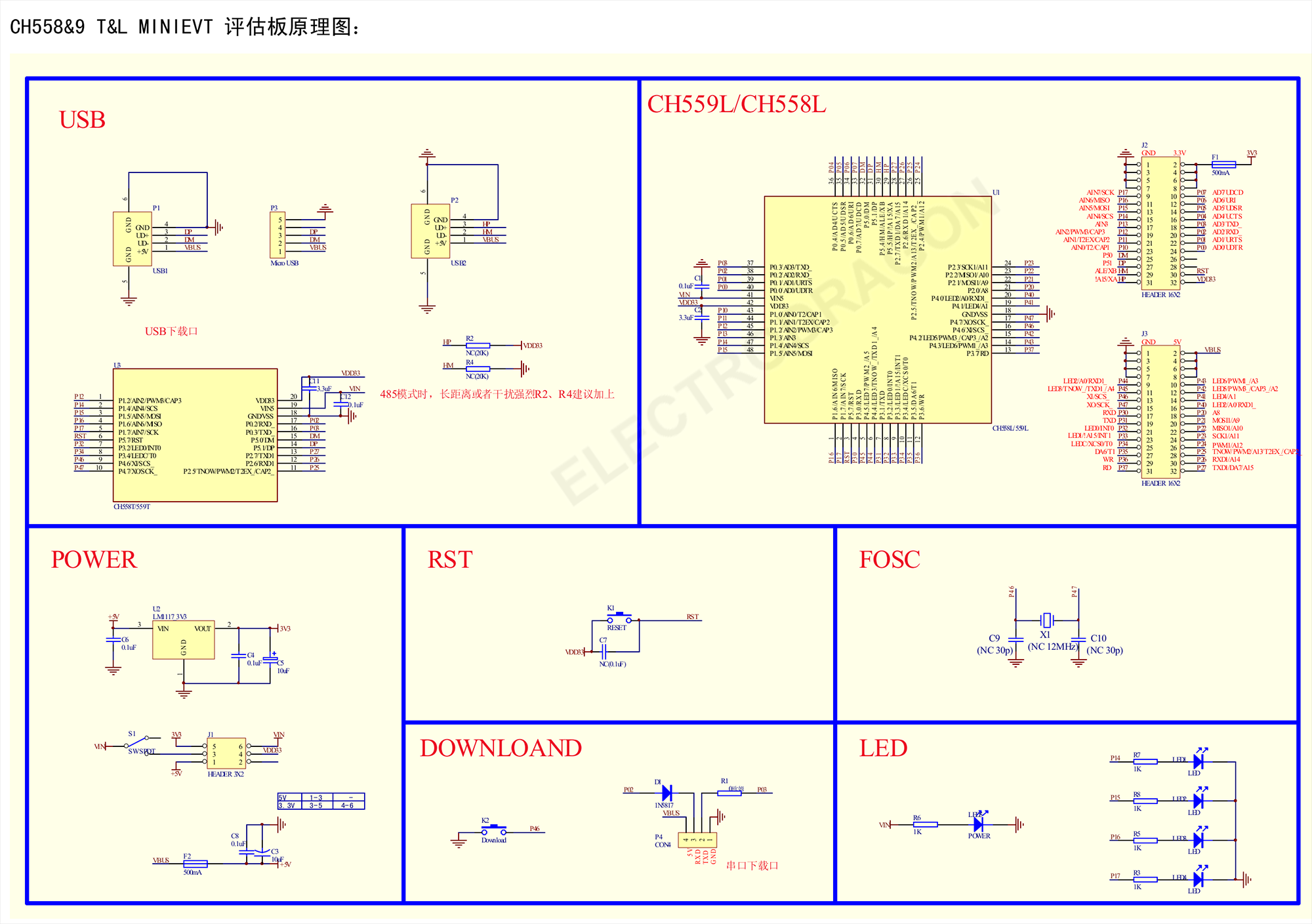

board sch
