how to use single TP4056-dat to charge - battery-charger-2s-dat - 2S-lithium-battery-charger-dat
Parameters
cacultation:
Ibat = charge current = Vprog / Rprog * 1200
where Vprog = 1V

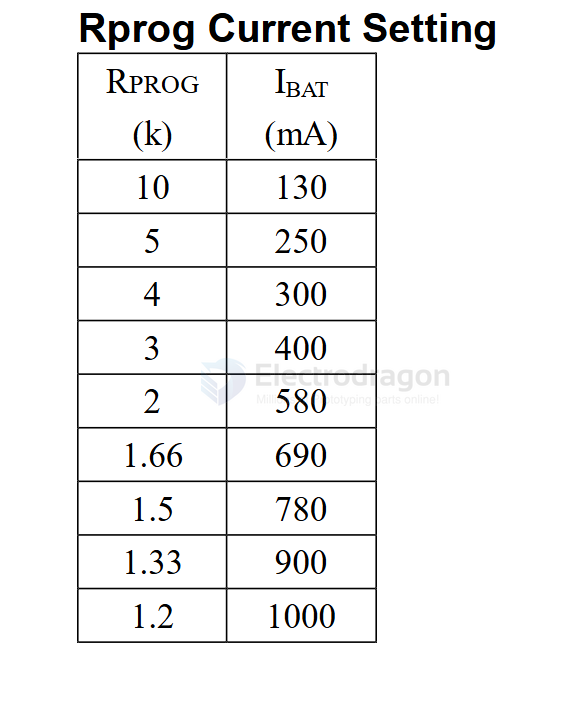

| Rprog | Ibat | calculation |
|---|---|---|
| 1.2K | 1A | 1.2/1.2 = 1 |
| 120 R | 10 A | 1.20.12 = 10 |
| 2.4K | 500 mA | 1.2/2.4 = 0.5 |
| 2K | 580 mA | |
| 1.5K | 780 mA |

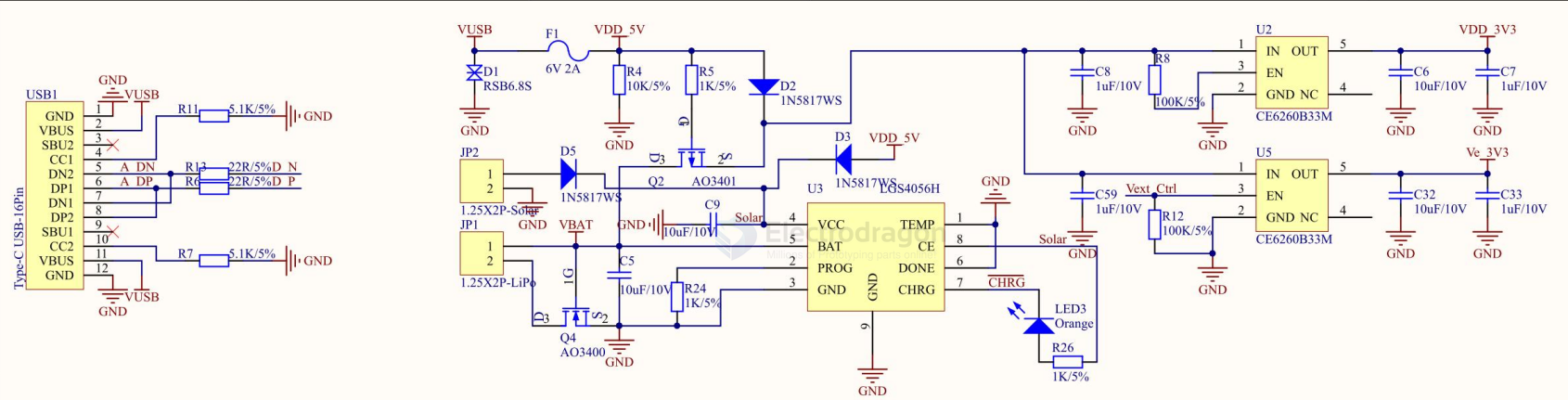

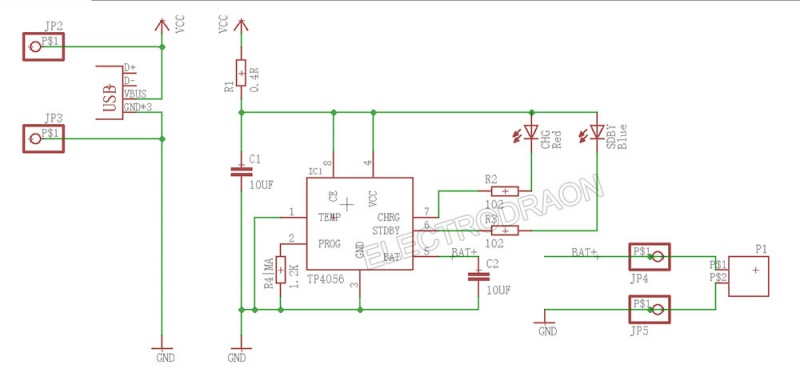

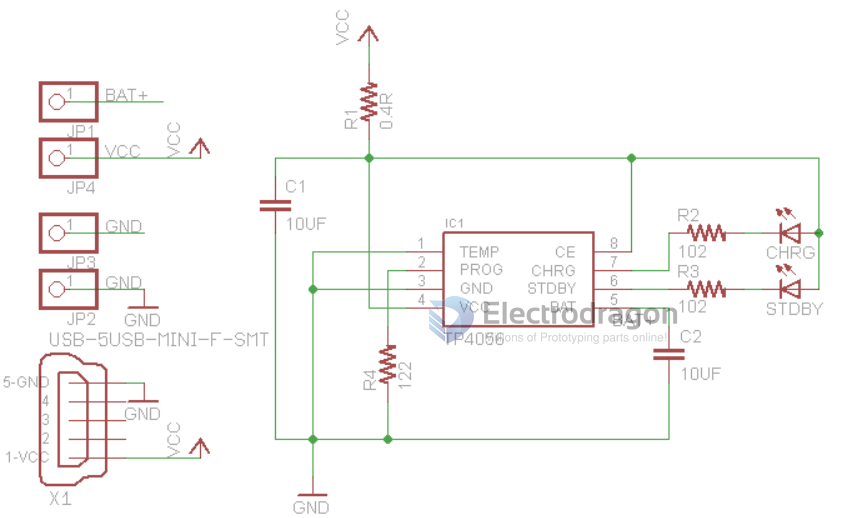

SCH
Solar Type-C Solutions
batter options than

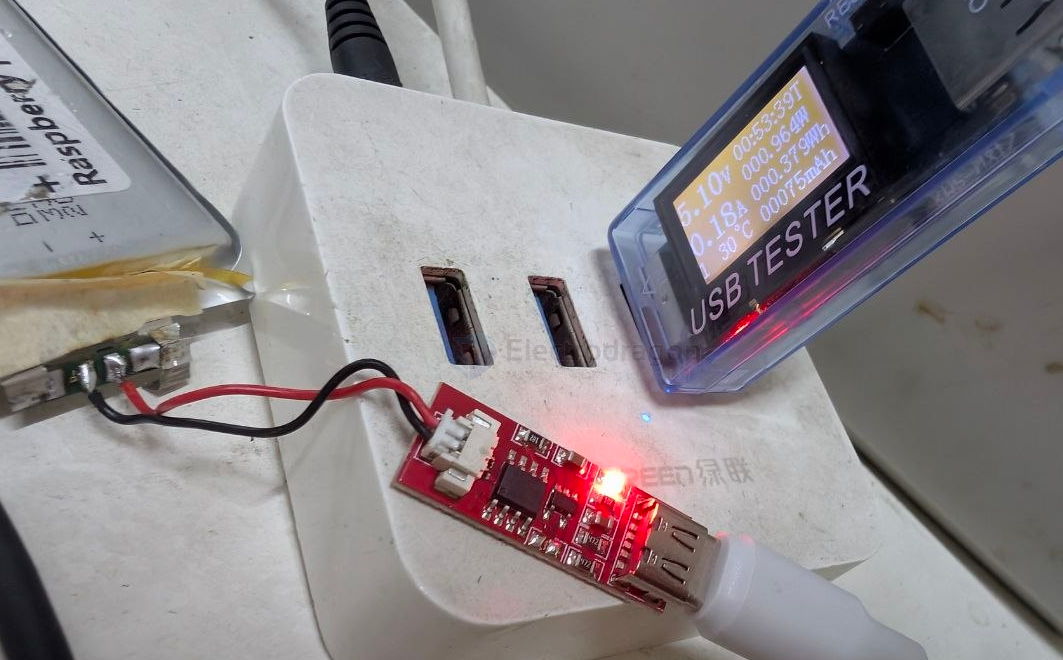

demo
ref
datasheet - Chip-cn-dat/TP-dat/TP4056-dat/TP4056.pdf
