normal flash boot log
Baud rate 74880 is what the ESP8266 bootloader uses. The apps on top of the Espressif SDK (e.g. Arduino sketch) talk at 115200 if not specified otherwise.

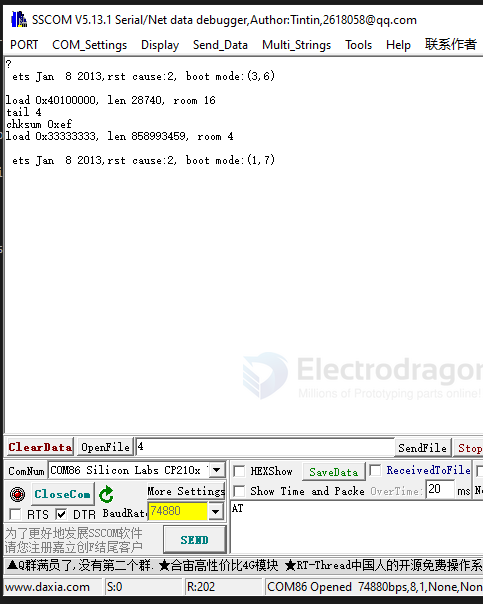

*the normal reset boot * == CORRECT
ets Jan 8 2013,rst cause:2, boot mode:(3,6)
load 0x40100000, len 28740, room 16
tail 4
chksum 0xef
load 0x33333333, len 858993459, room 4
boot mode:(3,6) → GPIO0 is LOW (indicating flash mode, not normal run mode). This means the ESP8266 is still in flashing mode, and won't run user code.
the prog mode boot
flash boot mode
ets Jan 8 2013,rst cause:2, boot mode:(1,6)
ets Jan 8 2013,rst cause:2, boot mode:(1,7)
download mode
ets Jan 8 2013,rst cause:2, boot mode:(1,6)
or
rl\0l湠|\0宭鄚?l?b|巶?抮抌?b岒nn瀕nn溾?bpp寧lrlrl
module default boot log
ets Jan 8 2013,rst cause:2, boot mode:(3,6)
load 0x40100000, len 1856, room 16
tail 0
chksum 0x63
load 0x3ffe8000, len 776, room 8
tail 0
chksum 0x02
load 0x3ffe8310, len 552, room 8
tail 0
chksum 0x79
csum 0x79
2nd boot version : 1.5
SPI Speed : 40MHz
SPI Mode : DIO
SPI Flash Size & Map: 32Mbit(512KB+512KB)
jump to run user1 @ 1000
AIT firmware bootload mode
rl\0l湠|\0宭鄚?l?b|巶?抮抌?b岒nn瀕nn溾?bp寧lrlrlp騨??lbn鈢ll帋b岒nn頫0l寧l`?nnl`nr帓抧忪l`p騨?r寽溾?bn鈢鞄帋b岒nn頫0l`?nnl`nr帓抧宭`p騨?r寽溾囔lbn鈢l巖?b岒nn頫0l`?nnl`nr帓抧騦l`r拻n騦l`rl寣n湆騨n瀸炩宺nnn?l宐rrl\0?抣?拻??巐ll~rl\0?抣lln溾\0?悓~抈\0?抣寪n鄮n鞉n~寣ll鄝b鞂llpb?br倢靗`nl巔岇l`bl`l拻n瀗寬鈔l瀨bll`rl屸?俷鞉r傭n|?ll鞄l屸r抣宭?l`屸r抣靗?l`屸r抣帪\0?ll`rl巶rl尀鈱bl宐r|巄p`靗靊lr宭b祢n顎nn?宭騪l?l寧???巐?l€n黒0尀鈱bl鞄p尀鈱bl宐prlrl
Ai-Thinker Technology Co. Ltd.
ready
or in 74880 baud rate output
2nd boot version : 1.5
SPI Speed : 40MHz
SPI Mode : DIO
SPI Flash Size & Map: 32Mbit(512KB+512KB)
jump to run user1 @ 1000
rf[112] : 03
rf[113] : 00
rf[114] : 01
SDK ver: 1.5.4(baaeaebb) compiled @ May 17 2016 19:23:54
phy ver: 972, pp ver: 10.1
mode : softAP(46:17:93:0a:04:4d)
add if1
dhcp server start:(ip:192.168.4.1,mask:255.255.255.0,gw:192.168.4.1)
bcn 100
@奪-nP隡T'悟w??+?j?!PKT\ )礍U5)nZP権?ERK吷X )d? 5Y
鳯ZP楯?RK呏eE@蔜@蛓P
LZPJJ?E J?
?p-蒠5折^P媕)\07???)i@H?Q\0!m)\07
%CCMi
)刏s衠?[篮??藦€5n劳??\0黵f[112] : 03
rf[113] : 00
rf[114] : 01
SDK ver: 1.5.4(baaeaebb) compiled @ May 17 2016 19:23:54
phy ver: 972, pp ver: 10.1
^谡€钍耸顯)嚸
)蛨?
custom flash firmware
rl\0l湠|\0宭鄚?l?b|巶?抮抌?b岒nn瀕nn溾?bp寧lrlrlp騨??l寽bn鈢l?巄岒nn頫0l寧l`?nnl`nr帓抧b?lr拻nb?l?l寽?l宭`鼈n?
mounting FS...
mounted file system
read your my_device ID ESP_574524 from json
*WM: Adding parameter
*WM: server
*WM: Adding parameter
*WM: port
*WM: Adding parameter
*WM: user
*WM: Adding parameter
*WM: pass
*WM: Adding parameter
*WM: my_device
*WM:
*WM: AutoConnect
*WM: Connecting as wifi client...
*WM: Using last saved values, should be faster
*WM: Connection result:
*WM: 0
*WM: SET AP STA
*WM:
*WM: Configuring access point...
*WM: ESP_Relay_Board
*WM: AP IP address:
*WM: 192.168.4.1
*WM: HTTP server started
