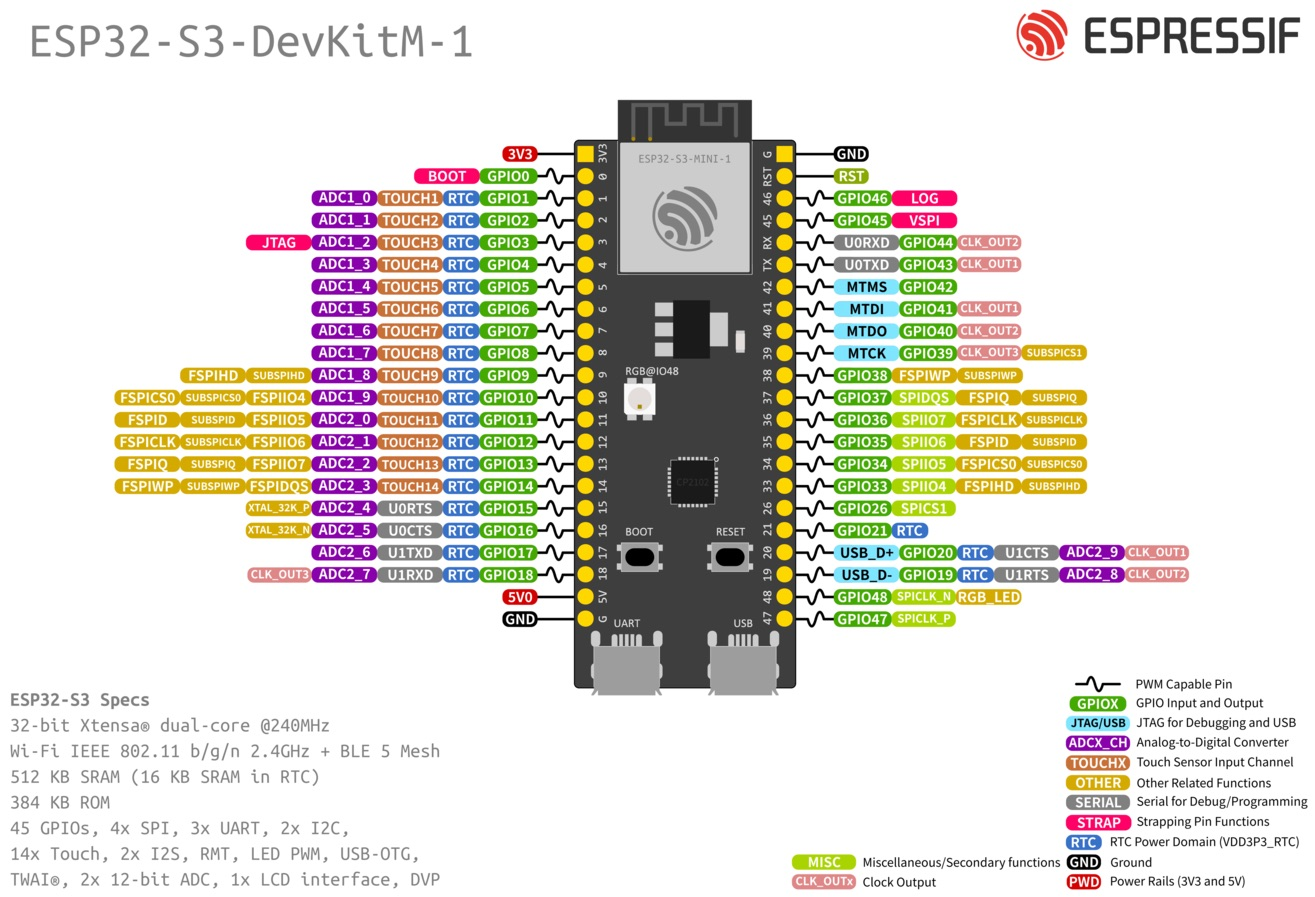

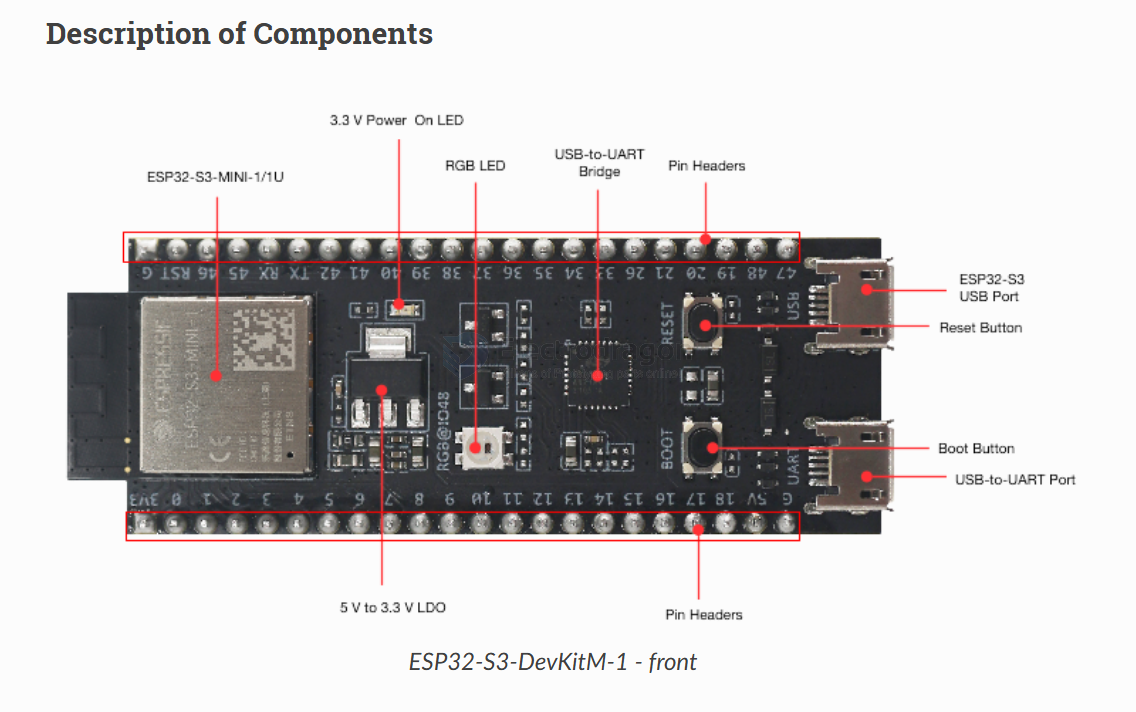

official ESP32-S3-DevKitM-1
- pin = 2x22 = 44 pins
- available GPIOs = 44 - 5 = 39 pins
official ESP32-S3-DevKitC-1

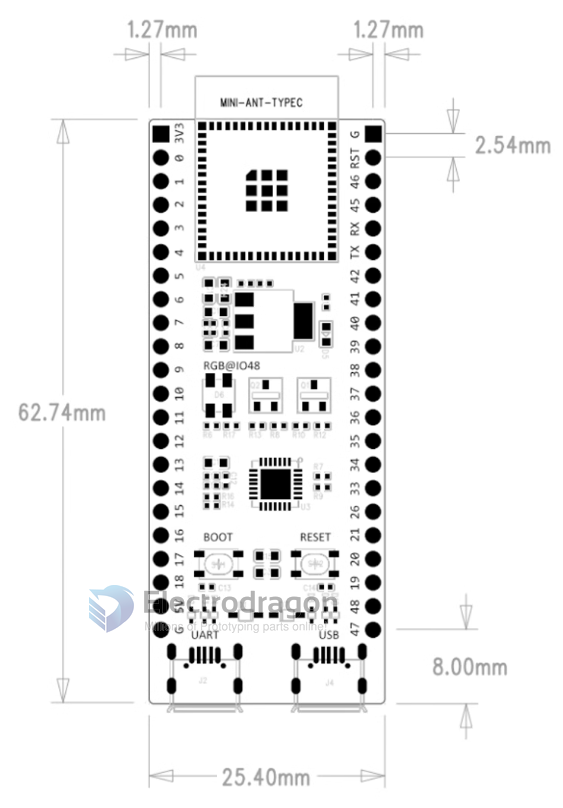

2x22, pitch pitch == 22.86 / 25.4 mm
https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32s3/esp32-s3-devkitc-1/index.html
pins
left == 22 pin
| L |
|---|
| 3V3 |
| GPIOO |
| GPI01 |
| GPI02 |
| GPI03 |
| GPI04 |
| GPI05 |
| GPI06 |
| GPI07 |
| GPI08 |
| GPI09 |
| GPIO10 |
| GPIO11 |
| GPI012 |
| GPI014 |
| GPI013 |
| GPI015 |
| GPI016 |
| GPI017 |
| GPI018 |
| 5V0 |
| GND |
right == 22 pin
- GND
- RST
- GPI046 - LOG
- GPI045 - VSPI
- UORXD GPI044 CLK_0UT2
- UOTXD GPI043 CLK_OUT1
- MTMS GPI042
- MTDI GPIO41 CLK_OUT1
- MTDO GPIO40 CLK_OUT2
- MTCK GPI039 CLK_OUT3SUBSPICS1
- GPI038 FSPIWP SUBSPIWP
- GPI037 SPIDQS FSPIQ SUBSPIQ
- GPI036 SPI107 FSPICLK SUBSPICLK
- GPI035 SP1106 FSPID SUBSPID
- GPIO34 SPII05 FSPICSO SUBSPICSO
- GPI033 SPI104 FSPIHDSUBSPIHD
- GPI026 SPICS1
- GPI021 RTC
- USB_D+ GPIO20 RTC U1CTS ADC2_9 CLK_OUT1
- USB_D- GPIO19 RTC U1RTS ADC2_8 CLK_OUT2
- GPIO48 SPICLK_N RGB_LED
- GPI047 SPICLK_P
