internal SHT30 I2C output
Main Features:
Four-core connector, easy to replace and maintain. If the accuracy is insufficient, the sensor can be replaced at any time.
Usage: The probe can be directly buried in the soil.
Info
Product Features:
- Digital, resolution up to 14 bits
- Internal self-calibration, no calibration required.
- Temperature and humidity are closely integrated for easy dew point measurement
- High reliability and long-term stability
- The product structure is exquisite and suitable for on-site applications and product integration
Application range:
Application range:
- Computer room monitoring
- HVAC
- Weather station
- Warehouse
- Construction site
- Concrete test block detection
- Agricultural greenhouse
- Flower Nursery
Data loggers, transmitters, automated process control, construction sites, agricultural greenhouses, flowers, nurseries, lawns, and other environments where soil temperature and humidity need to be measured. The metal-encased form factor is more suitable for use in environments with significant dust and harsh conditions.
Selection Guide:
FS200— SHT （2） — （3）
resolutions
| Swiss Digital Sensor | Humidity Accuracy | Temperature Accuracy | Supply Voltage | Notes |
|---|---|---|---|---|
| SHT10 | 4.5% | 0.5℃ | 5.0V DC | FS100.200.300 |
| SHT11 | 3% | 0.5℃ | 5.0V DC | FS100.200.300 |
| SHT15 | 2% | 0.5℃ | 5.0V DC | FS100.200.300 |
| SHT20 | 3% | 0.5℃ | 3.3V DC | FS200.300 |
| SHT21 | 2% | 0.5℃ | 3.3V DC | FS200.300 |
| SHT25 | 1.8% | 0.5℃ | 3.3V DC | FS200.300 |
| SHT71 | 3% | 0.5℃ | 5.0V DC | FS200.300 |
| SHT75 | 1.8% | 0.5℃ | 5.0V DC | FS200.300 |
Output Method:
- I: I2C output
- R: RS485 output (FS300 does not have this option)
Technical Parameters:
- Operating Voltage: 3.3-5V
- Operating Current: ≤15mA
- Measurement Range: Temperature: -20℃～100℃
- Humidity: 0～100％RH
- Operating Environment Conditions: -20℃～90℃, 0～99％RH
- Storage Environment Conditions: -20℃～80℃, 0～95％RH

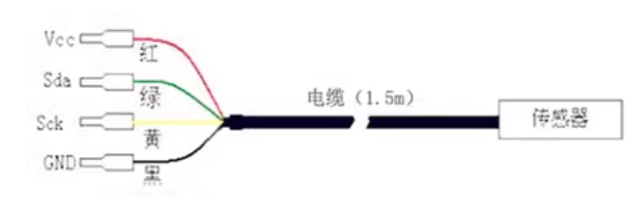

Wiring
- Red: power supply (Vcc)
- Green: Serial Data (Sda)
- Huang: Serial Clock (Sck)
- Black: ground (GND)
Code
SHT1x :
- 7x (analog IIC) are program-interchangeable
- SHT2x (standard IIC) which is not program-interchangeable.
