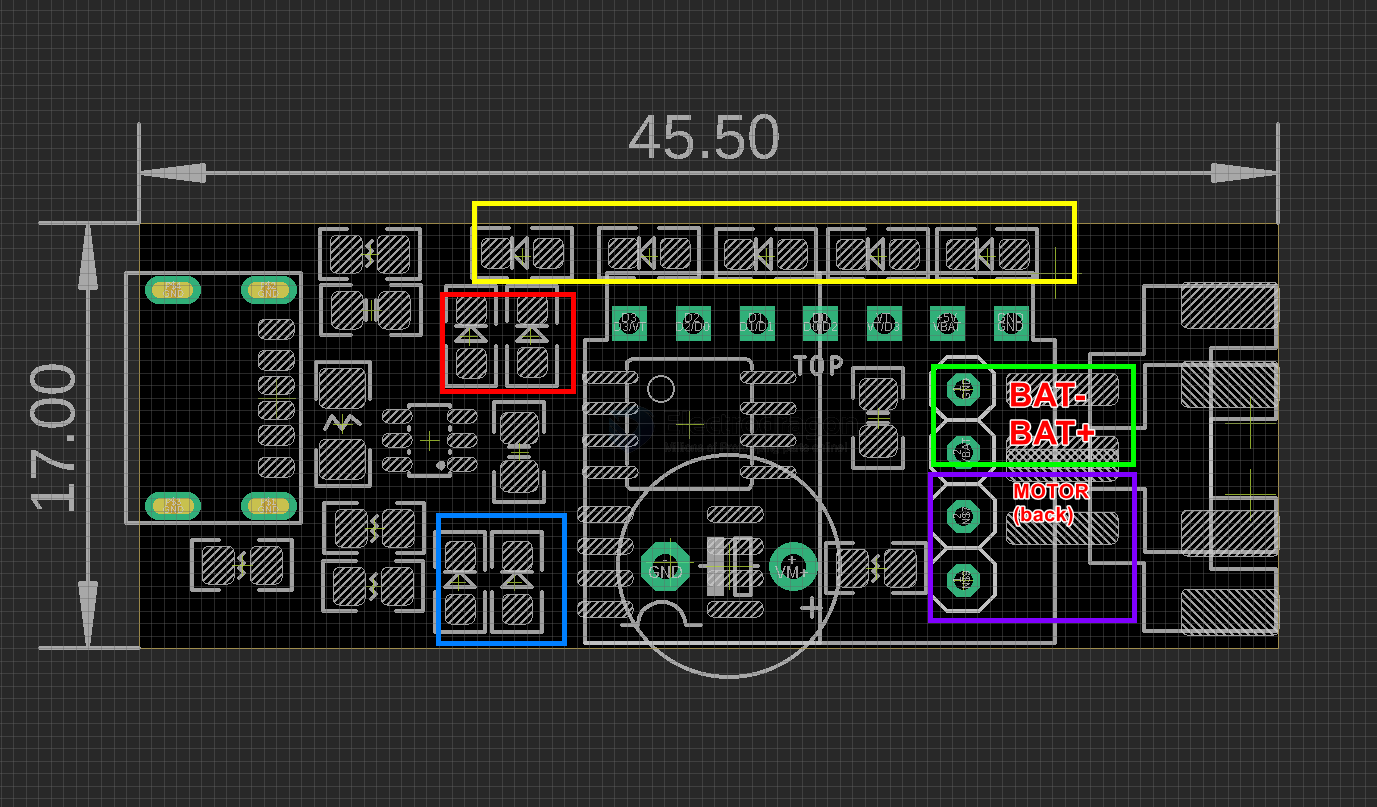

Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.
wireless motor drive board
attiny13-dat - MCU-dat - STC-dat == STC8G1K17A-36I-DIP8
- 4x RF button pressed LED
- 1x RF button VT LED
- 1x programmer LED from attiny13-dat pin 1
- 1x power indicator LED
2x battery charge indicator LED - TP4067-dat
Front side socket (with USB) == battery side
- Back side socket == motor side
drive chip
| pin | func | note | app |
|---|---|---|---|
| 2 | VCC | power | |
| 4 | GND | power | |
| 1 | P5.4 | general purpose I/O | LED |
| 3 | P5.5 | general purpose I/O | D2 |
| 5 | P3.0 | RXD, general purpose I/O | D1 |
| 6 | P3.1 | TXD, general purpose I/O | D0 |
| 7 | P3.2 | general purpose I/O | MOTOR_B |
| 8 | P3.3 | general purpose I/O | MOTOR_A |
Applications, category, tags, etc.
Demo Code and Video
stc #rf tt motor control == https://t.me/electrodragon3/453
demo code at - STC-SDK-dat repro
