NBL1076-dat

Info

product url - EY-08D BLE Bluetooth Mini Demo Board, CC2541, R2

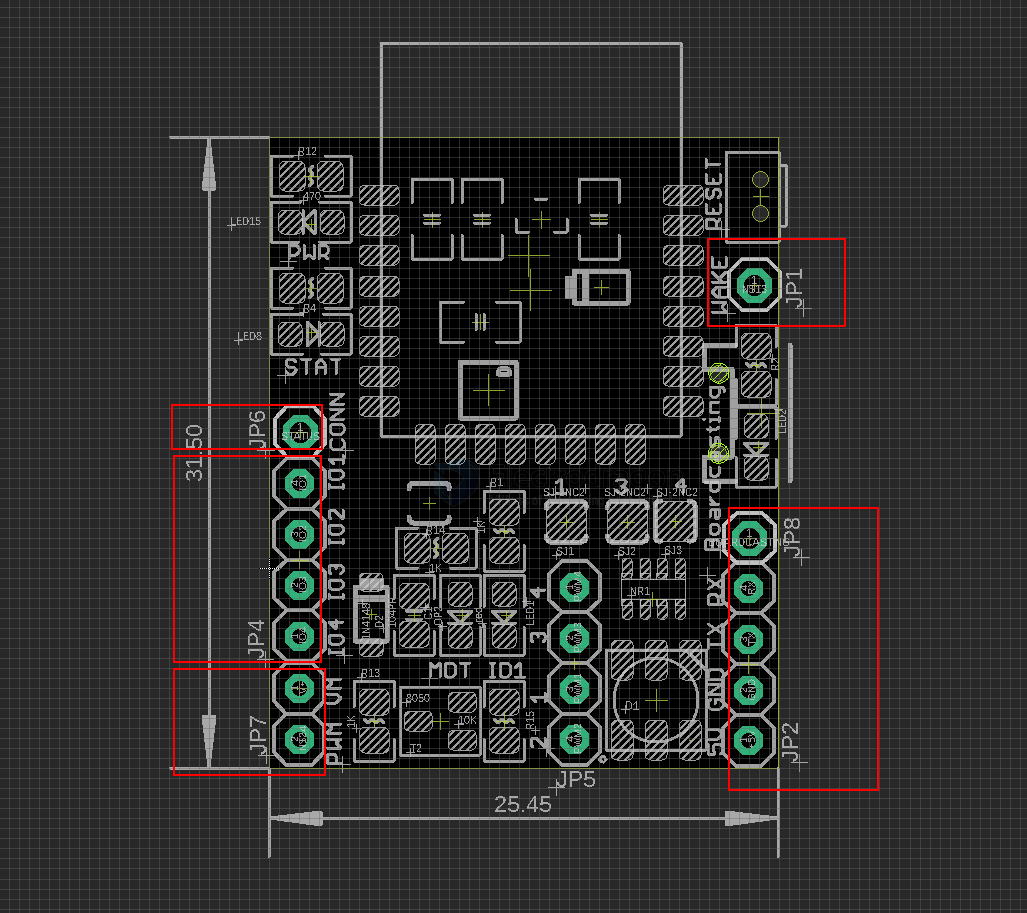

Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.

• EY-08-dat - EY-dat

• PWM-dat - GPIO-dat - I2C-dat

• bluetooth-dat

• JP1 == wake
• JP2 == +5V GND TXD RXD
• JP4 == IO4 3 2 1
• JP6 == CONN status and on board LED
• JP7 == Motor drive

• JP8 == broadcasting status and on board LED

• PWM1 - jumper to drive RGB LEDS

• PWM2 - jumper to drive Motor-dat
• PWM3 - jumper to drive RGB LEDS


• PWM4 - jumper to drive RGB LEDS

• IO1 - jumper to drive LED-dat

• power LED on board

• on board reset button
• on board CONN-USB-dat serial-dat

Applications, category, tags, etc.

Demo Code and Video

https://www.youtube.com/watch?v=G2INrUBWufI

ref

• NBL1076

• legacy wiki page
