product url - Arduino Energy Monitoring Shield V3
this type of non-invasive AC current sensor
Board Map, Dimension, Pins, chip info, etc.

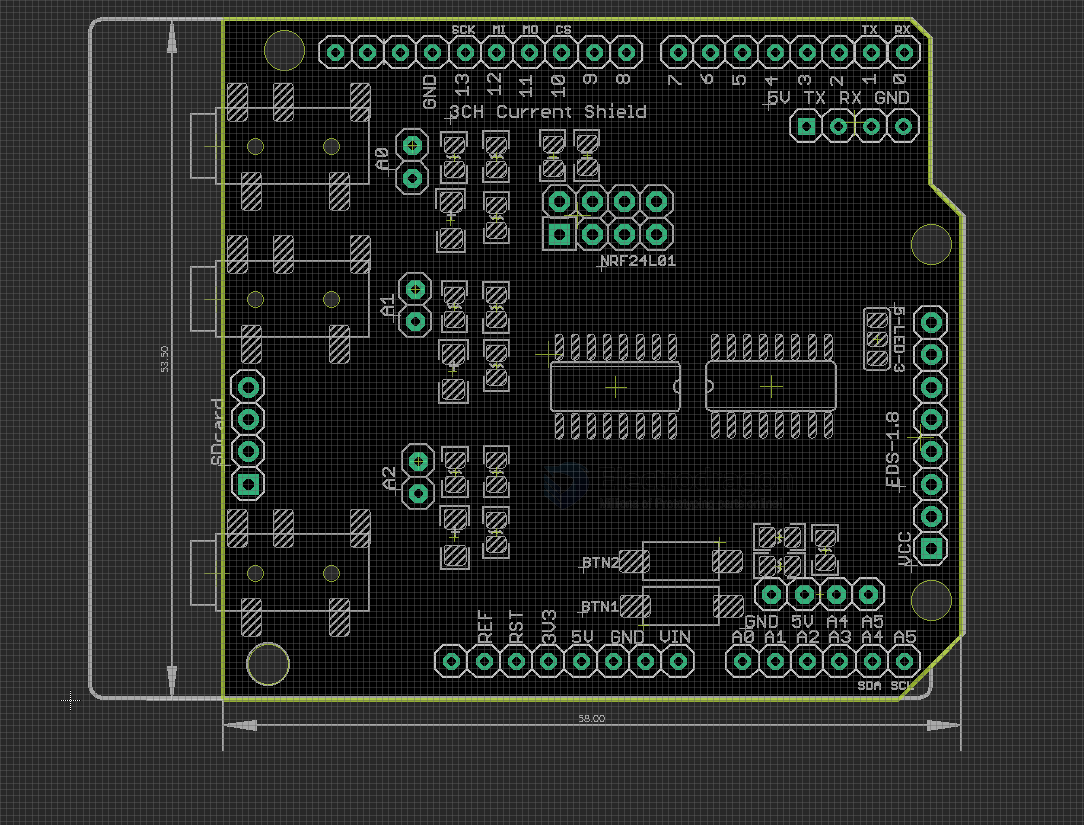

Board Map V3 2025
Setup
- To use 100A STC-013-000, put jumper on for the burder resistor on the board. Otherwise, use 30A or 50A STC-013-030 or STC-013-050, no jumper needed.
Functions
Applications, category, tags, etc.
Demo Code and Video
version log
The current version is V3 version in 2025.
V3 - Arduino Energy Monitoring Shield V3, YHDC CT Based
- fully supported all CT version 30A, 100A refer how to set jumper for this board at YHDC-dat
- removed the support for Nokia-5110-dat
