fan starting

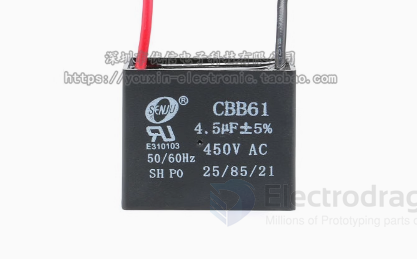

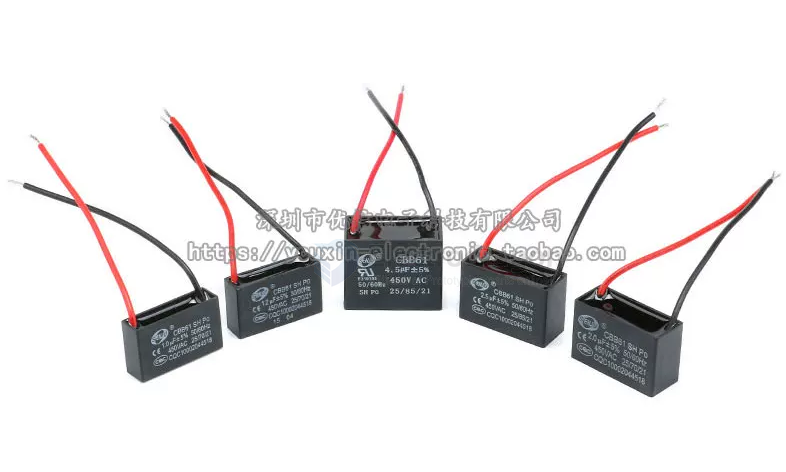

CBB61 Fan Starting Capacitor 450V 1/1.2/1.5/1.8/2/2.5/3/3.5/4/4.5-20UF

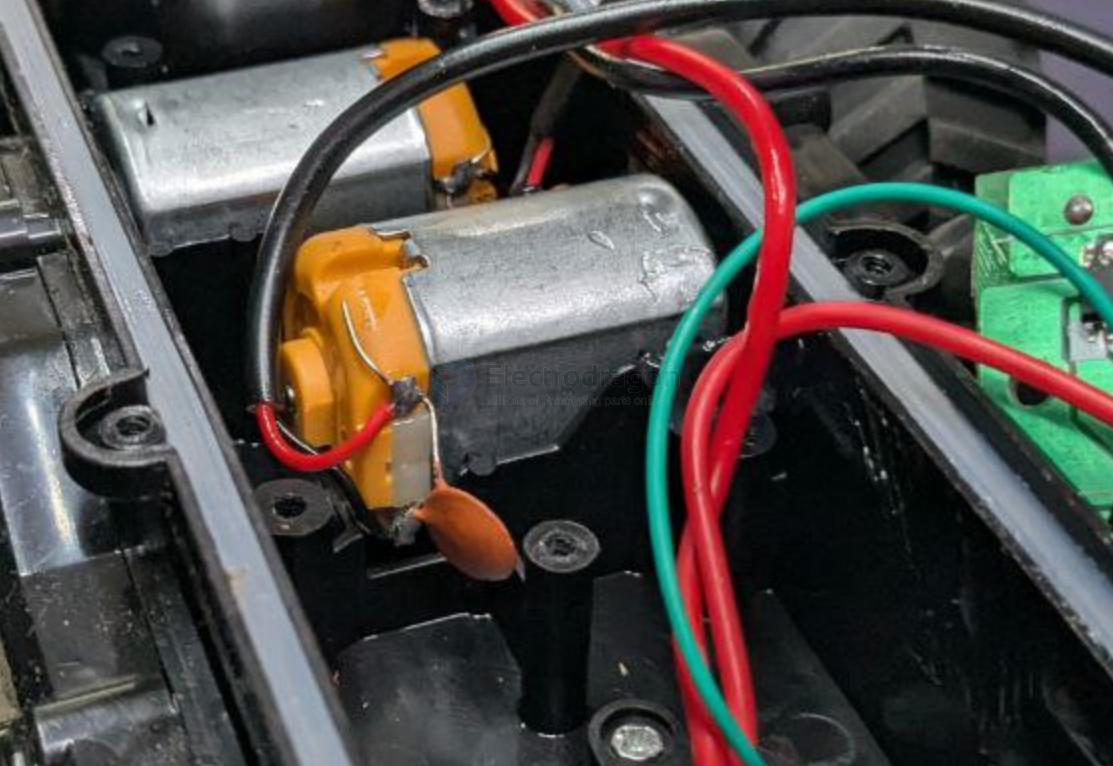

toy

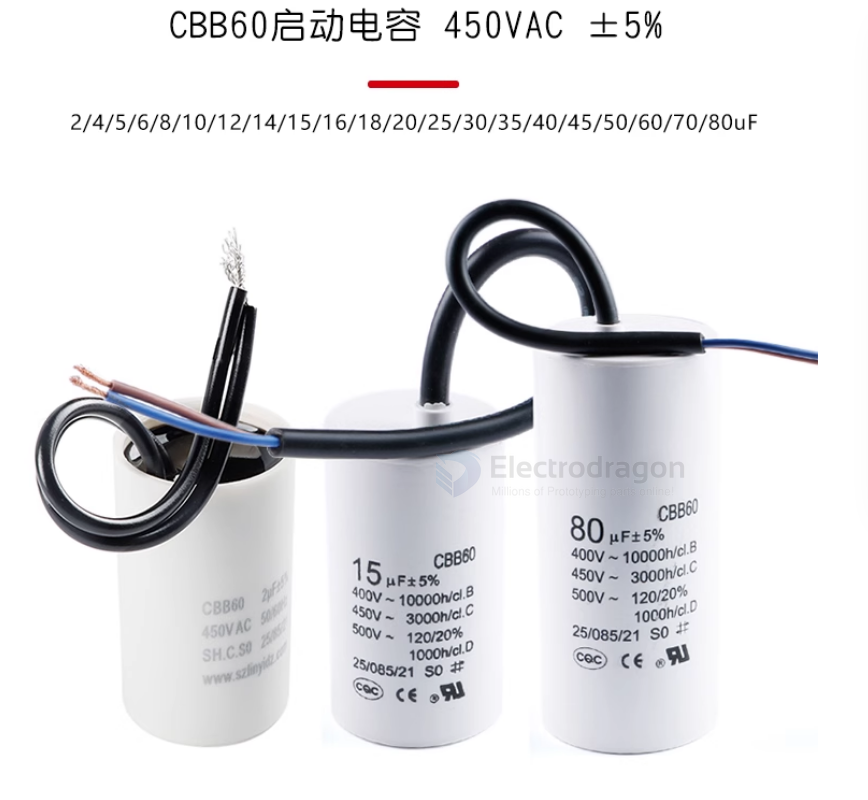

larget start capacitor
Why Not to Connect Polarized Capacitors Directly to DC Motors
- Polarized capacitors (like electrolytic types) can only handle one voltage polarity.
- If a DC motor runs in both directions (CW and CCW), the voltage across its terminals reverses.
- This reverse polarity damages polarized capacitors, causing:
- Overheating
- Leaking
- Short circuits
- Power supply shutdowns
✅ Safer Alternatives

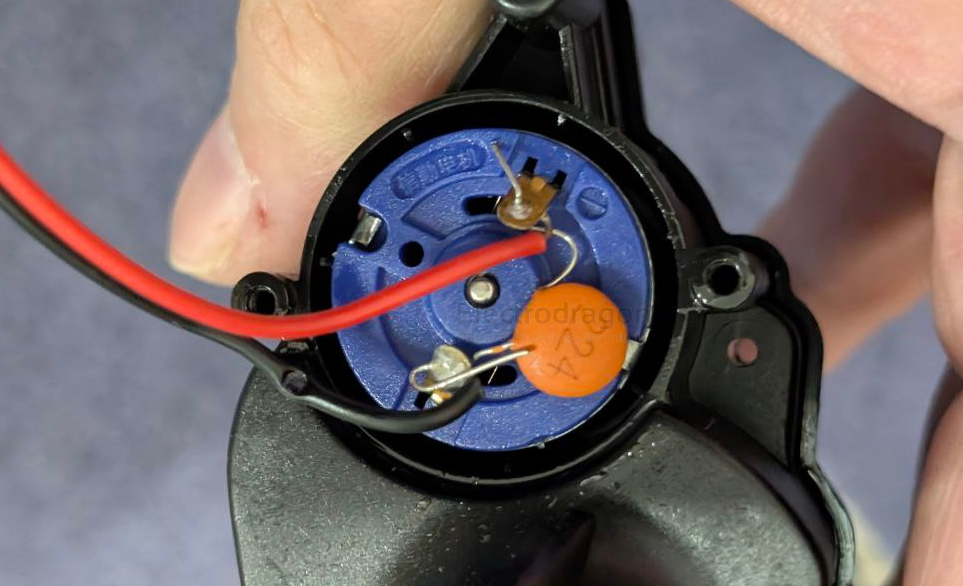

- Use non-polarized capacitors (e.g., ceramic 0.1–1 µF) directly across the motor terminals.
- Use polarized capacitors only on the power input side of the motor driver, where polarity is stable.
