vacuum-pump-dat

DC 24V

Feature	12V Air Pump	24V Air Pump
No-load Current	0.65A	0.38A
Full-load Current	1.5A	0.85A
Negative Pressure	≥ -58KPA	≥ -58KPA
Positive Pressure	≥ 100KPA	≥ 100KPA
Air Flow	≥ 15L/min	≥ 15L/min

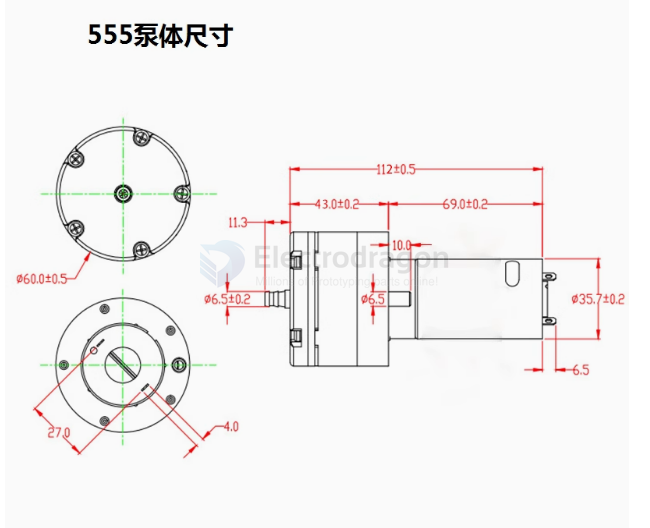

dimension

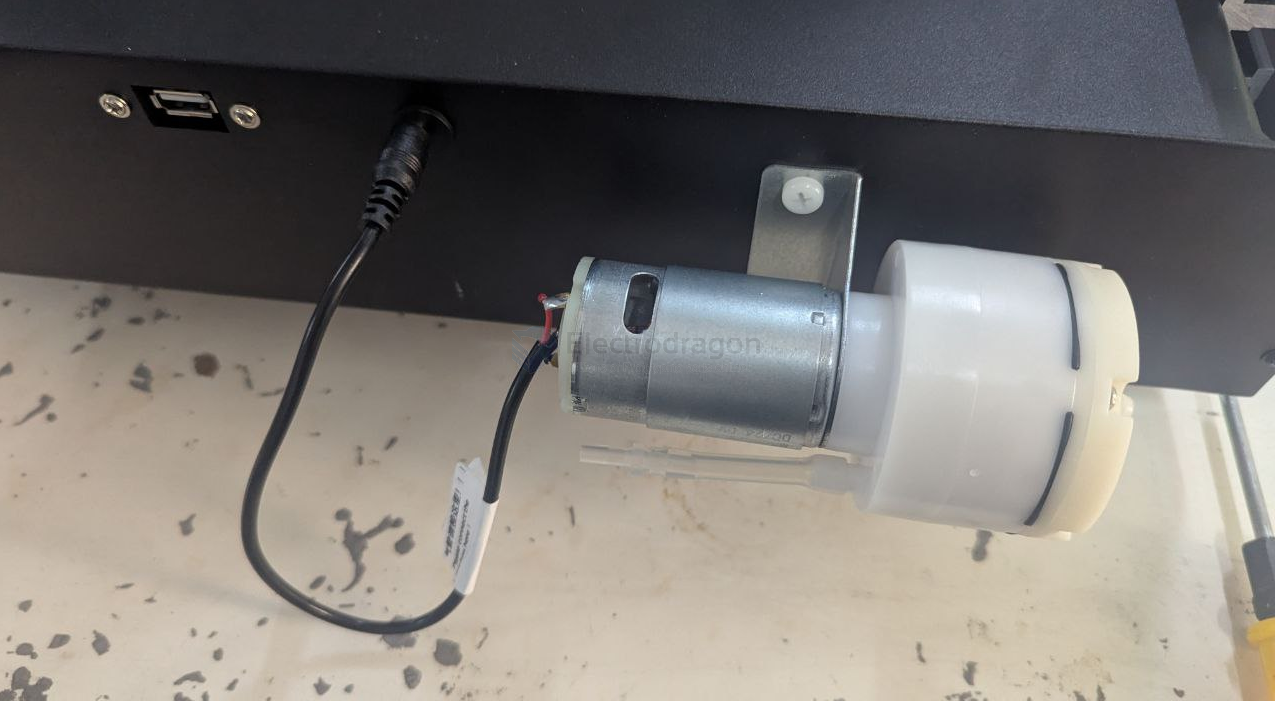

installation to machine
