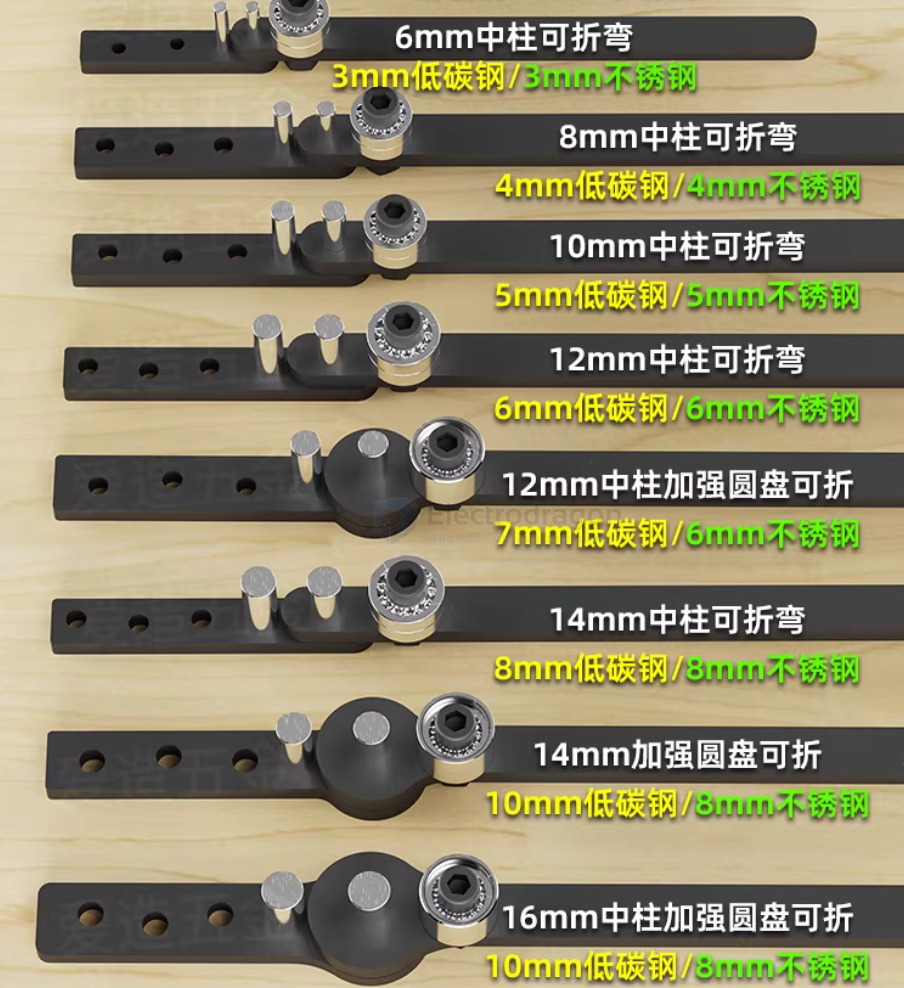

hand tool 2

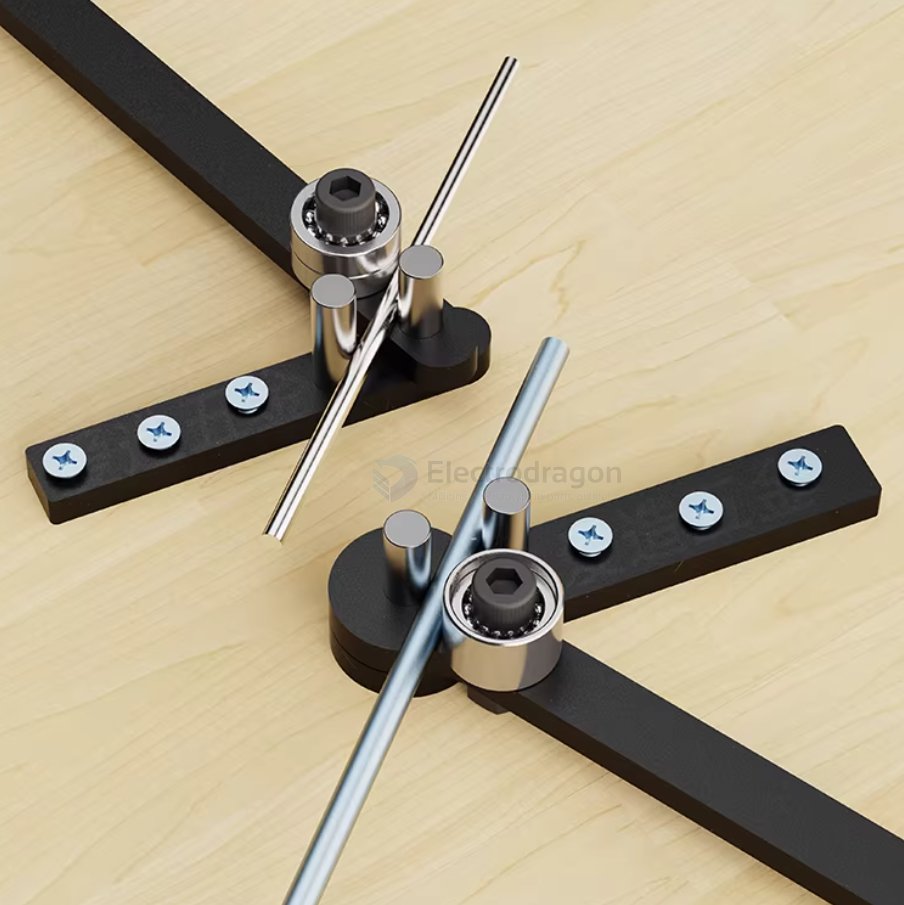

need screw-dat or nail-dat M6 ~ M8

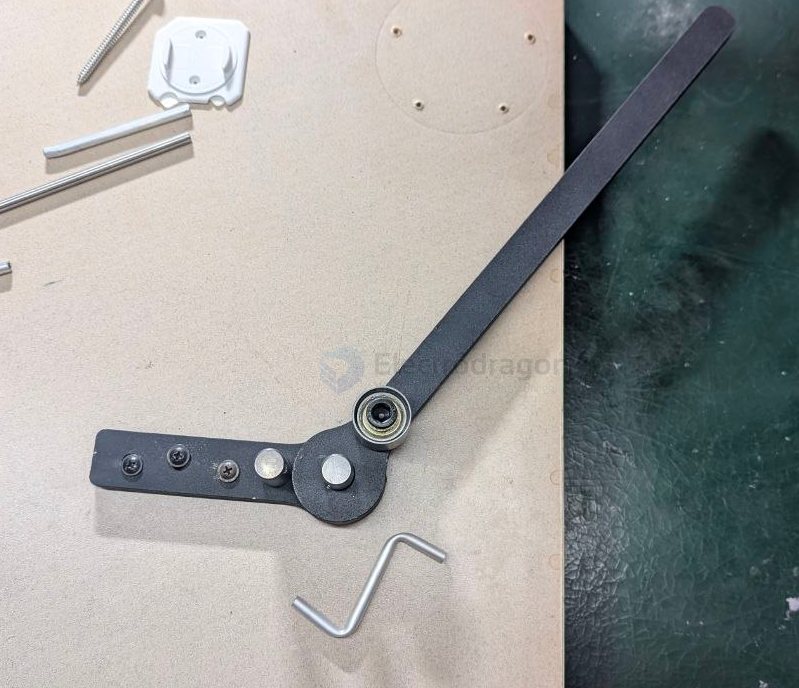

hand tool 1

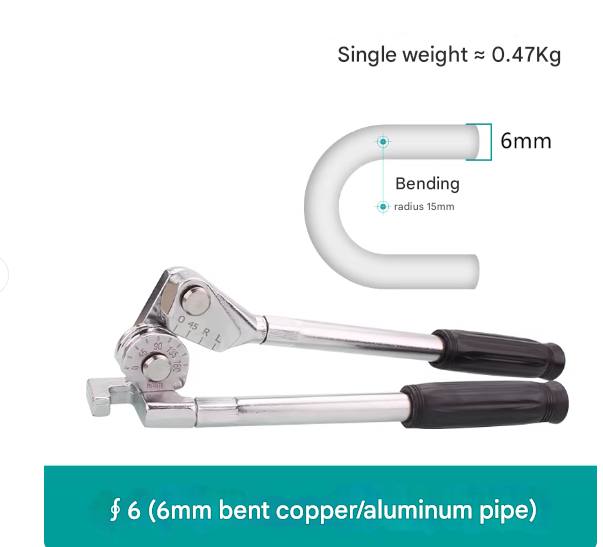

R15
Quick reference table (R = 15 mm)
| Bend angle | Total bend length (mm) | Middle point (mm) |
|---|---|---|
| 45° | 11.78 | 5.89 |
| 60° | 15.71 | 7.85 |
| 90° | 23.56 | 11.78 |
fix "Twist" (Clocking)
If the material is steel or aluminum and the diameter isn't too large, you might be able to "cold straighten" it:
The Table Test: Lay the tube on a flat welding table or floor. Press one end flat. If the other end is lifting off the surface, that is your error.
The Lever Method: Secure one end in a heavy-duty vise (use soft jaws or wood blocks to protect the tube). Slide a longer, larger pipe over the other end to act as a lever, and gently twist until the two horizontal sections are coplanar.
