Linear-Rail-dat

• HGR20 - https://grabcad.com/library/hgr20-linear-guide-subassembly-configurable-rail-length-150-4000-mm-1

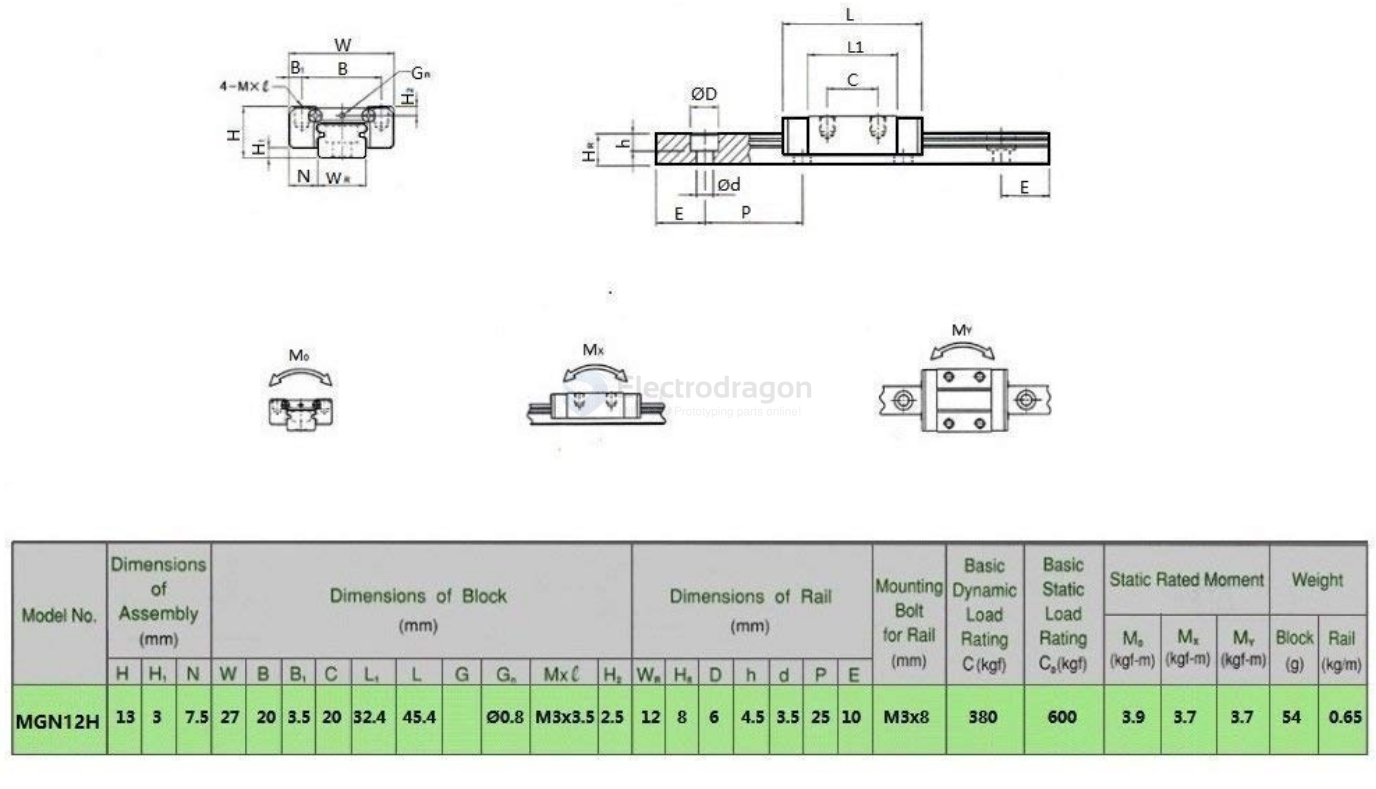

MGN12H_600mm

• length = 600m

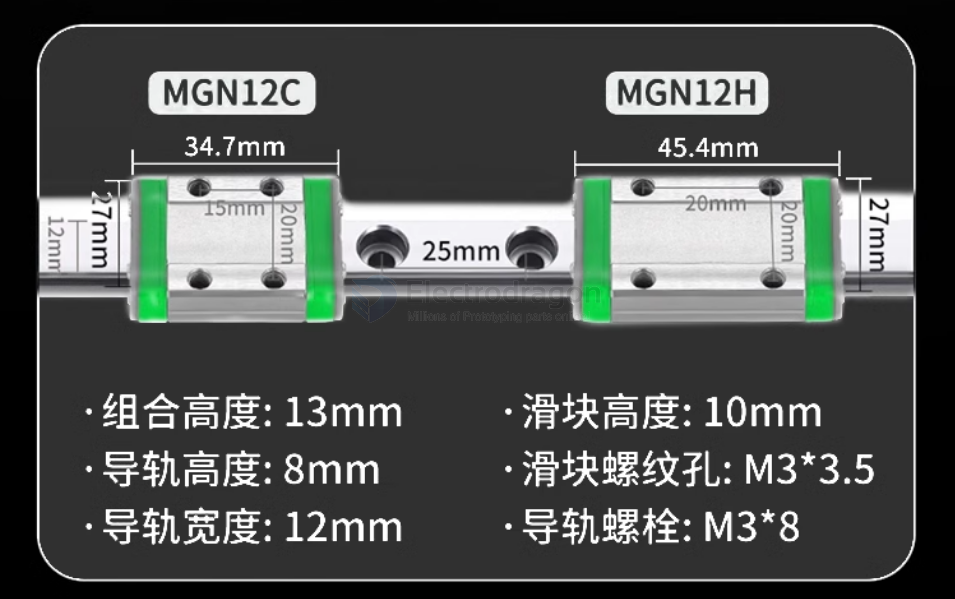

W = dimension of the block = 27 Wr = dimesnion of the rail = 12

导轨端距有要求吗 == 默认均分

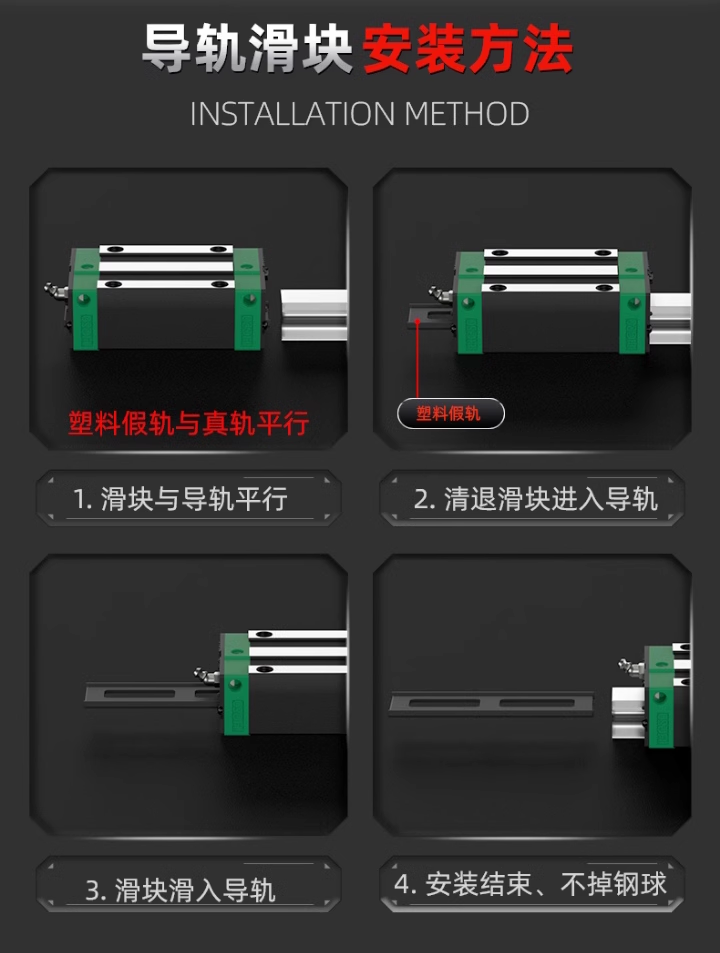

installation

ref

• pixieplacer-dat
