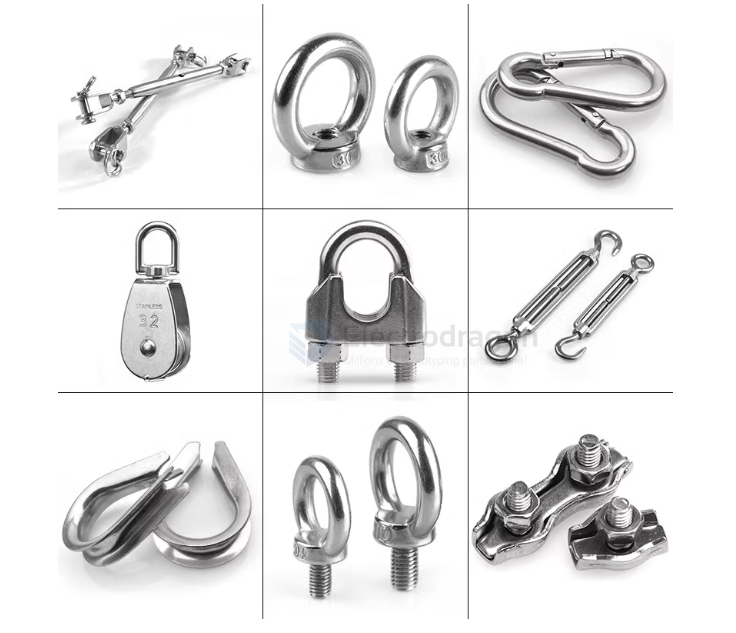

Steel wire ropes have various fittings (end terminals, hooks, connectors, etc.). Common types are categorized below:

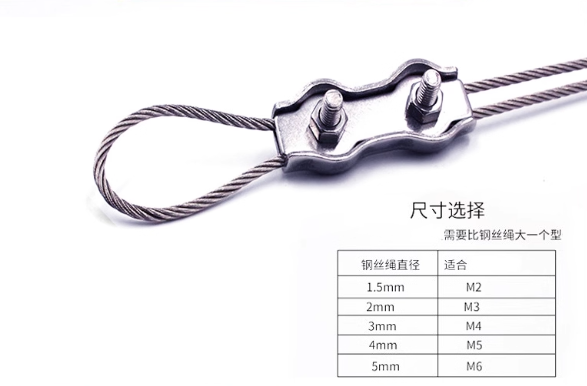

| Type | size | Suitable Wire Rope Diameter |
|---|---|---|
| Single Clamp | M2 | 0.8mm / 1mm / 1.2mm / 1.5mm |
| Single Clamp | M3 | 2mm / 2.5mm |
| Single Clamp | M4 | 3mm |
| Single Clamp | M5 | 4mm |
| Single Clamp | M6 | 5mm |
| Single Clamp | M8 | 6mm |
| Single Clamp | M10 | 8mm |
| Double Clamp | M2 | 0.8mm / 1mm / 1.2mm / 1.5mm |
| Double Clamp | M3 | 2mm / 2.5mm |
| Double Clamp | M4 | 3mm |
| Double Clamp | M5 | 4mm |
| Double Clamp | M6 | 5mm |
| Double Clamp | M8 | 6mm |
| Double Clamp | M10 | 8mm |

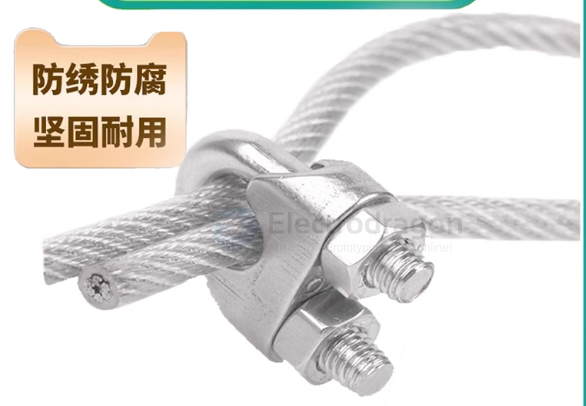

Wire Rope Clip / Clamp
category
1. End Terminals / Rope Ends
| English | Use |
|---|---|
| Ferrule / Sleeve | Secures the wire rope end, usually by crimping |
| Wire Rope Clip / Clamp | Temporary or adjustable fixing of wire rope, often for loops |
| Eye / Loop | Creates a loop or hook at the rope end |
2. Hooks / Lifting Fittings
| English | Use |
|---|---|
| Hook | Lifting and hoisting applications |
| Snap Hook / Spring Hook | Quick connection |
| Swivel / Eye Bolt | Prevents twisting, connects lifting equipment |
3. Connecting / Swivel Fittings
| English | Use |
|---|---|
| Swivel | Prevents wire rope from twisting |
| Shackle / D-Shackle | Connects wire rope to other fittings or loads |
4. Other Accessories
| English | Use |
|---|---|
| Turnbuckle | Adjusts tension in the wire rope |
| Thimble | Reinforces wire rope loops, prevents wear |
Tips:
- Ferrule / Sleeve is usually permanent, while Wire Rope Clip can be removed and reused.
- Thimble is often used with an Eye Loop to protect the rope from wear.
