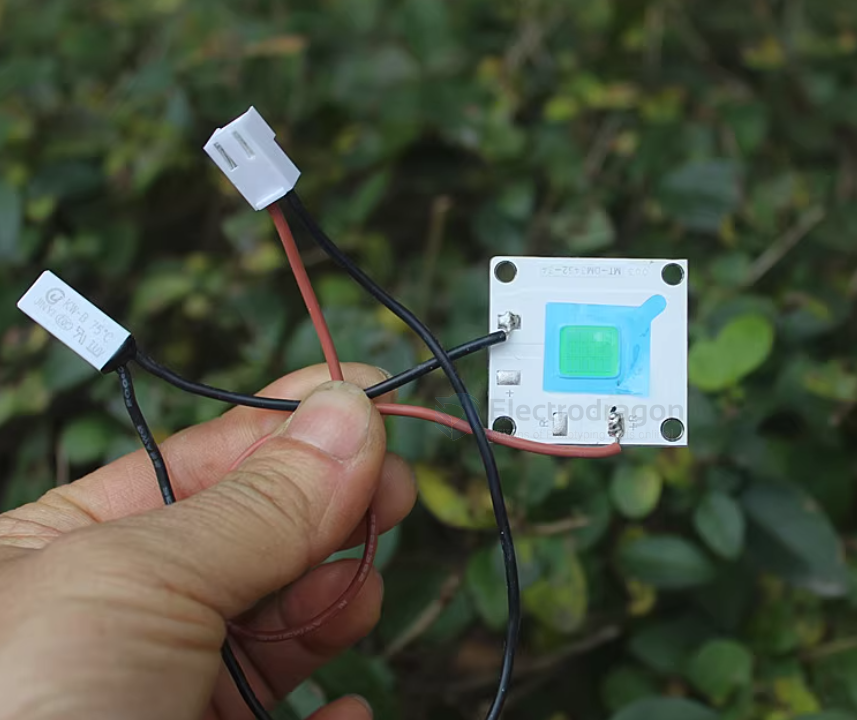

with protection
temperature 75 degree protection swtich

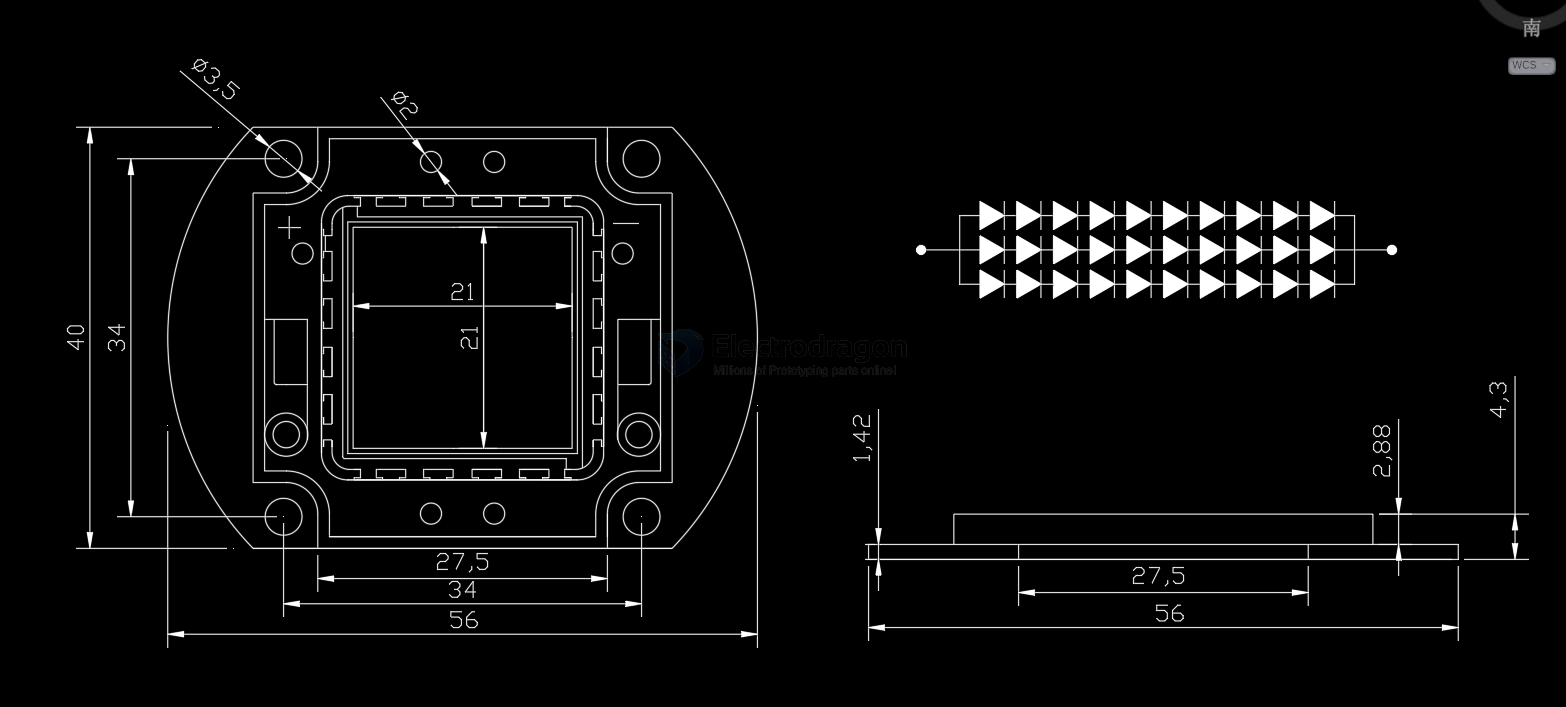

Dimension

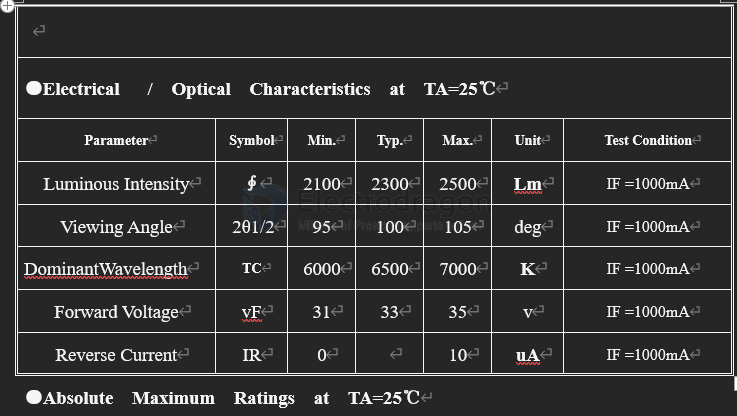

Electrical / Optical Characteristics at TA=25℃
for 30W LED
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | ∮ | 2100 | 2300 | 2500 | Lm | IF =1000mA |
| Viewing Angle | 2θ1/2 | 95 | 100 | 105 | deg | IF =1000mA |
| DominantWavelength | TC | 6000 | 6500 | 7000 | K | IF =1000mA |
| Forward Voltage | vF | 31 | 33 | 35 | v | IF =1000mA |
| Reverse Current | IR | 0 | 10 | uA | IF =1000mA |

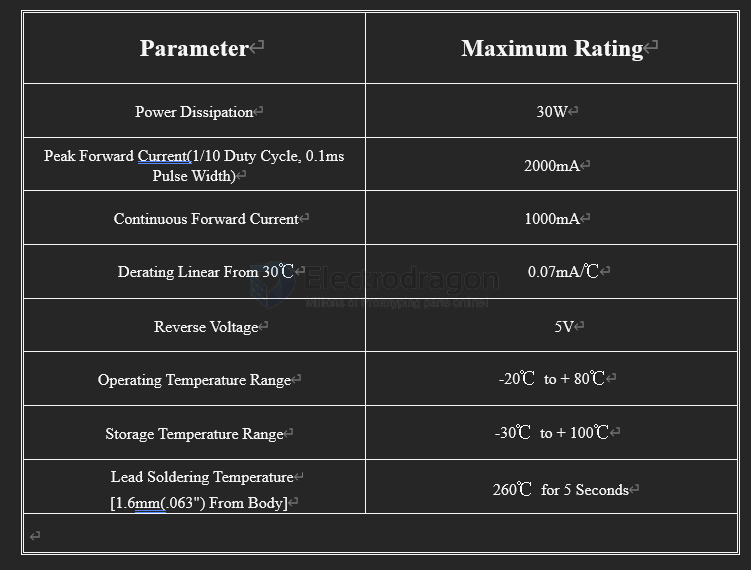

Absolute Maximum Ratings at TA=25℃

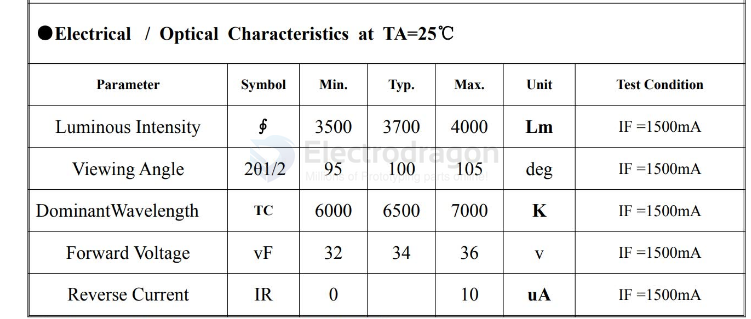

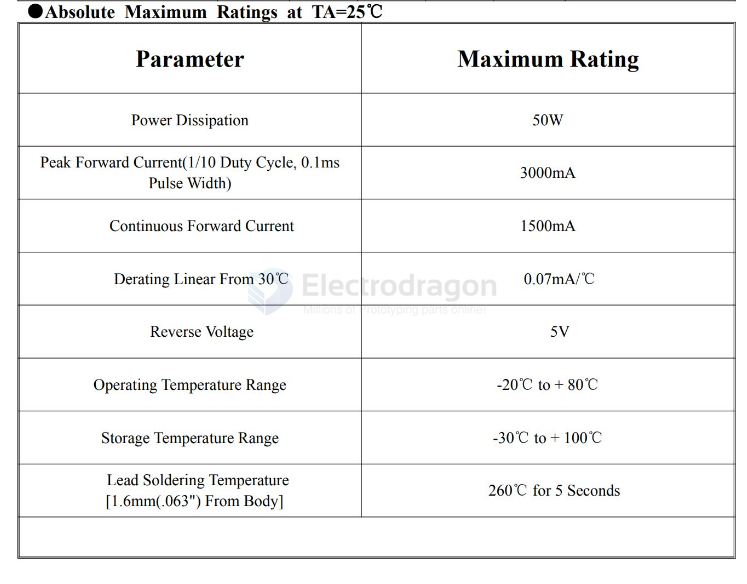

for 50W led

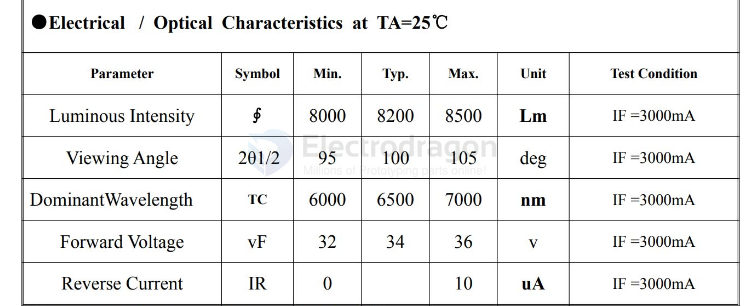

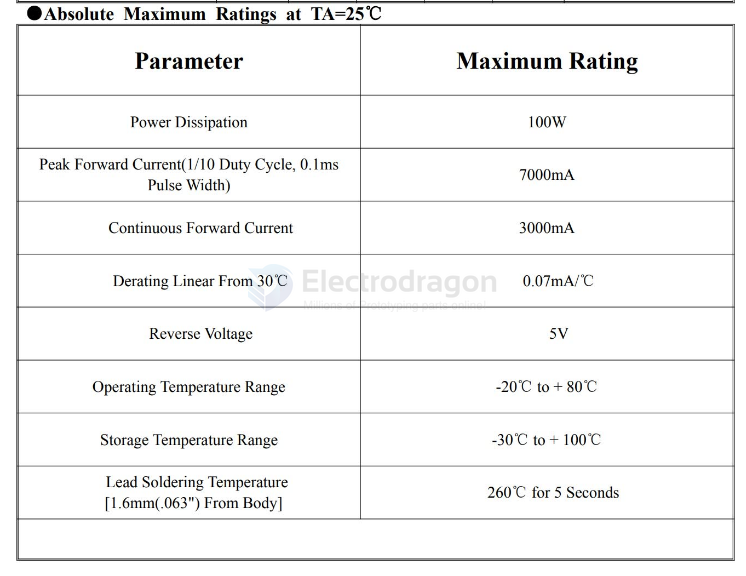

for 100W led
== 35V / 1.5A
Boards
20W/30W/50W - ILE1041-dat - ILE1042-dat - ILE1041-dat
1W/3W/5W high power LED - ILE1036-dat - ILE1037-dat - ILE1038-dat
other versions
FYLP-5052URC-1W
High-Power LED Type
- Size (mm): 7.3 * 5.0 * 1.3
- Emitting Color:Red
