OLED-PCB-dat

• OLED-I2C-dat - OLED-SPI-dat

PCB OLED

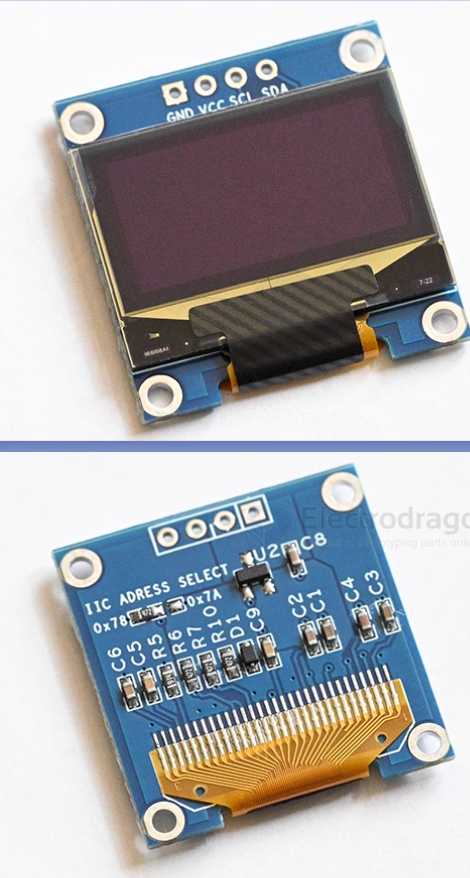

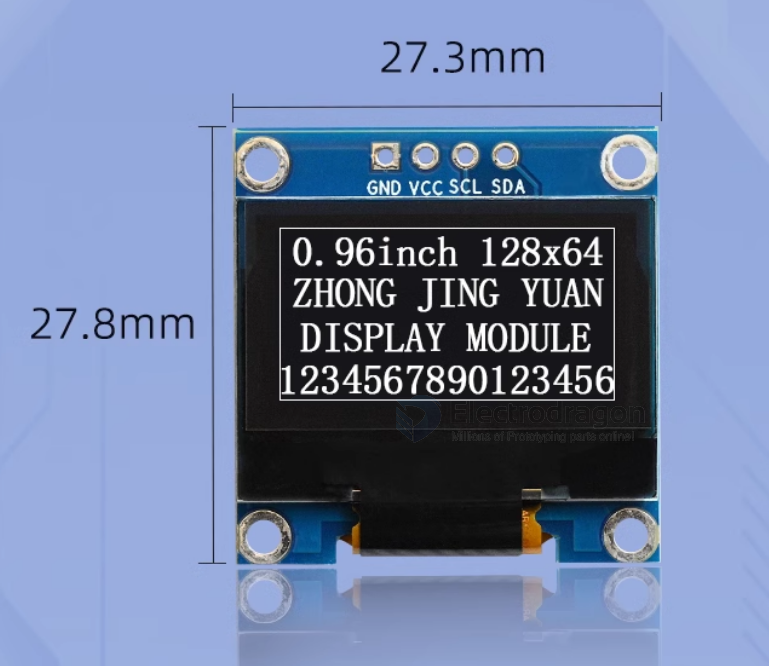

0.96"

• IOD1003-dat - IOD1001-dat

https://www.electrodragon.com/product/0-96-12864-oled-display-iicspi/

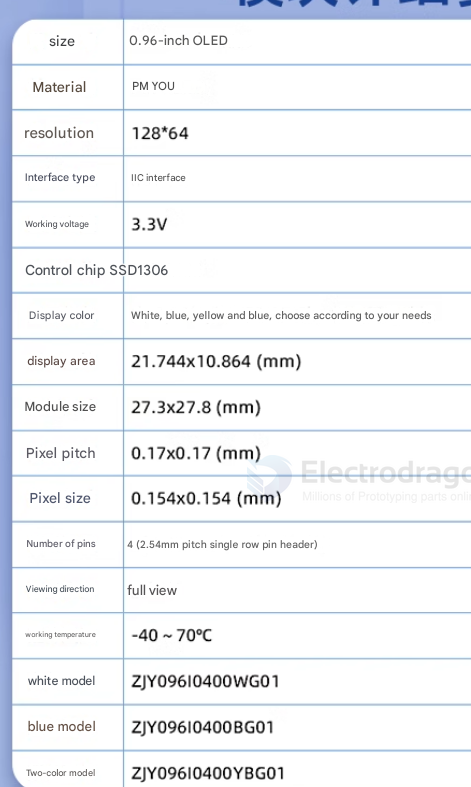

specs

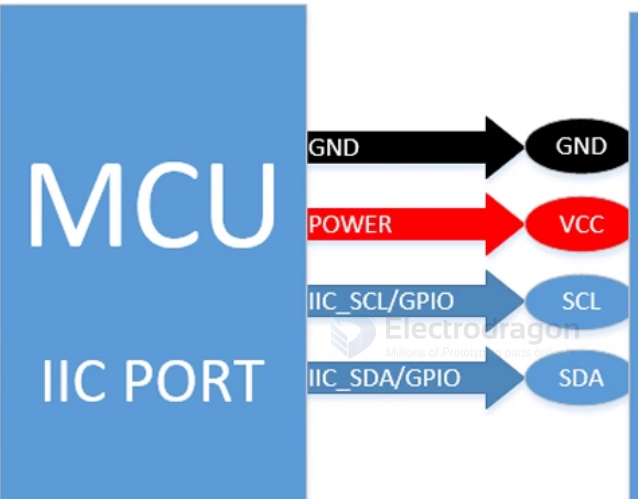

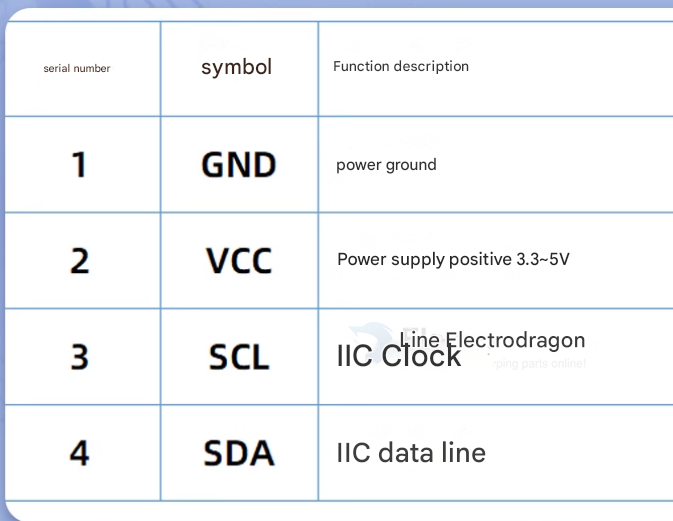

Pin definitions and Wiring

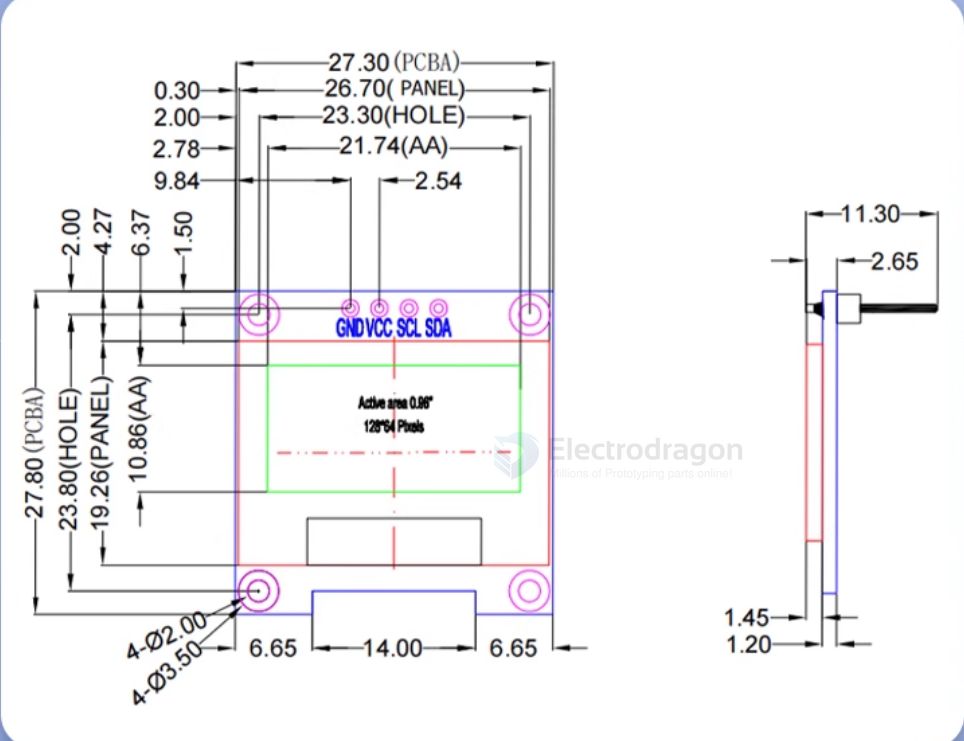

Dimension

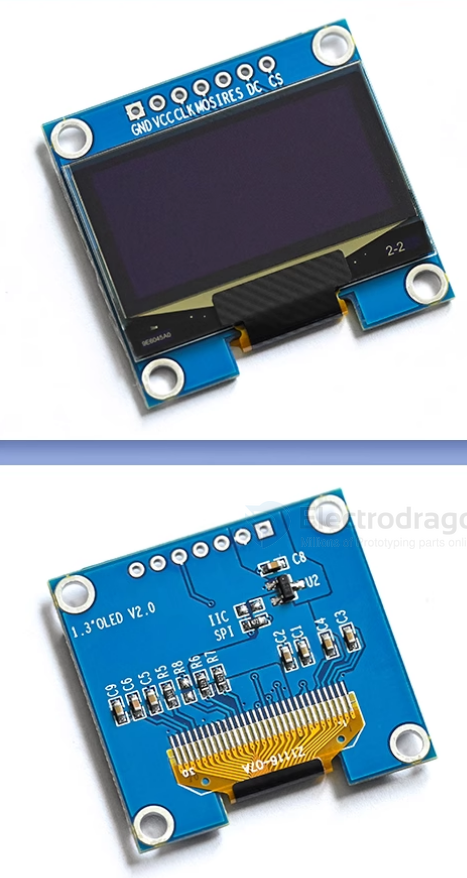

1.3"

• IOD1004-dat - IOD1005-dat

https://www.electrodragon.com/product/1-3-12864-blue-oled-display-iicspi/

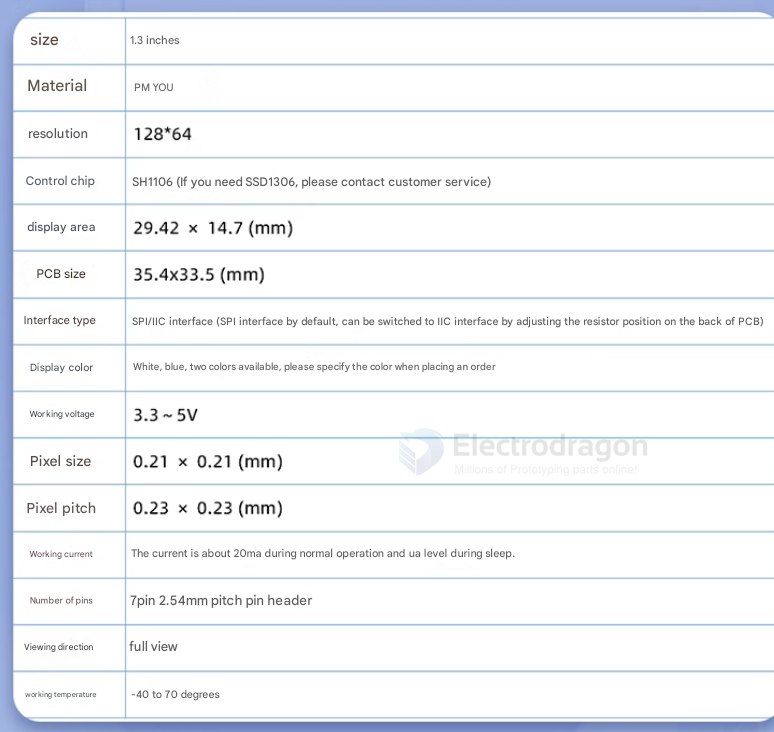

specs

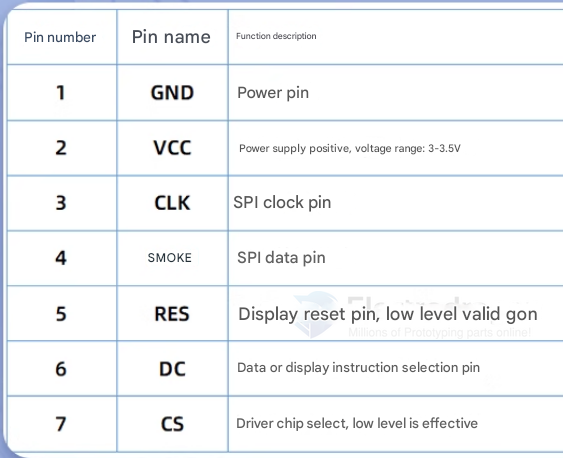

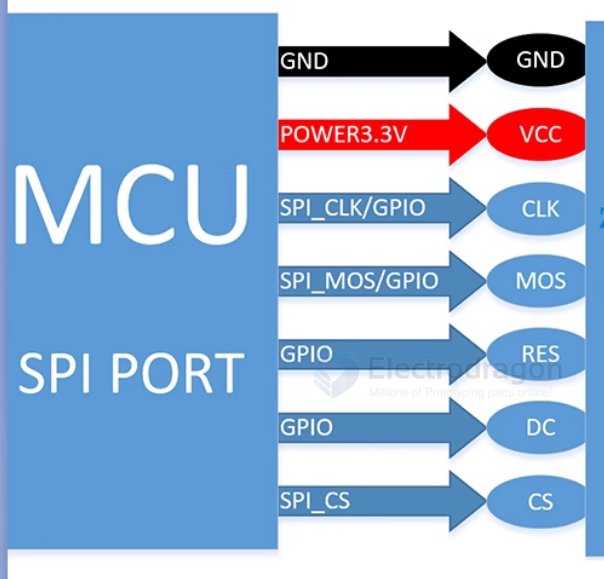

Pin definitions and Wiring

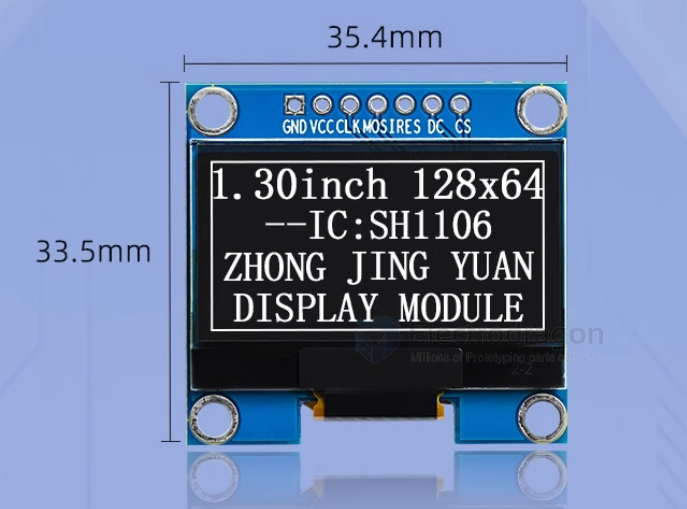

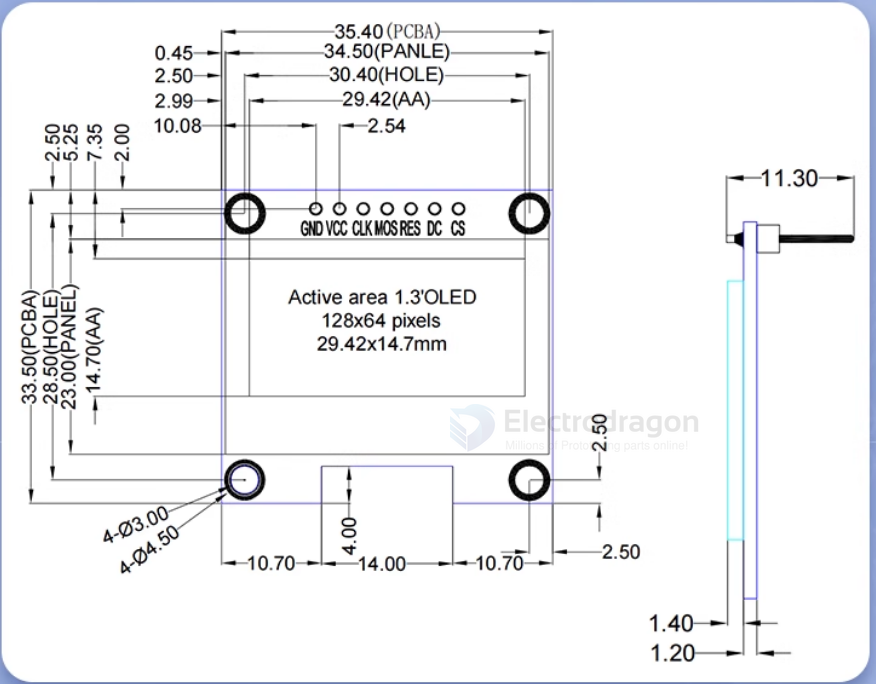

Dimension

demo video

• https://www.youtube.com/watch?v=-S0XRB664-M&feature=youtu.be

• https://www.youtube.com/watch?v=-S0XRB664-M&feature=youtu.be

ref

• OLED-dat
