驱动 1.9 寸 AMOLED 240*536 高分屏

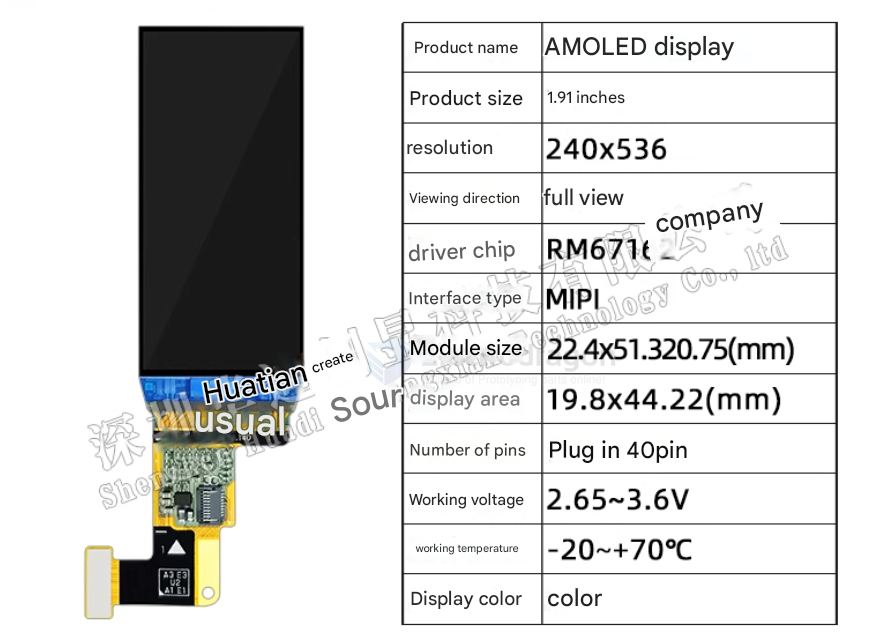

1.9' AMOLED Display Module
- 产品名称 == AMOLED显示屏
- 产品尺寸 == 1.91寸
- 分辨率 == 240 x 536
- 视角方向 == 全视角
- 驱动芯片 == RM67162Itd
- 接口类型 == MIPI
- 模块尺寸 == 22.4x51.320.75(mm)
- 显示区域 == 19.8x44.22(mm)

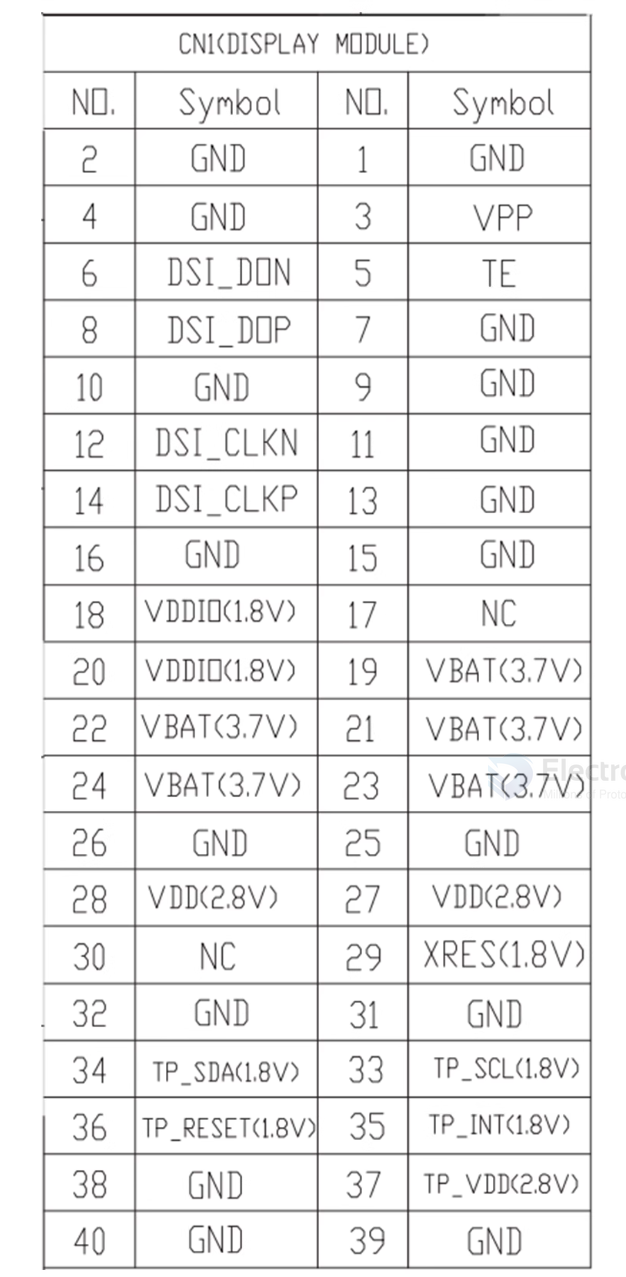

- 排针数量 == 插接40pin
- 工作电压 == 2.65~3.6V
- 工作温度 == 20~+70℃
- 显示颜色 == 彩色
AMOLED Display
AMOLED stands for Active Matrix Organic Light-Emitting Diode.
How it works
-
OLED part: Each pixel produces its own light using organic compounds that glow when electricity passes through them.
→ No need for a backlight (unlike LCD). - Active Matrix part: Uses a thin-film transistor (TFT) layer to control each pixel individually, allowing fast refresh rates and better control.
Key Features
- High Contrast – Pixels can turn completely off for true blacks.
- Vivid Colors – Wide color gamut and saturation.
- Thin & Flexible – Can be made on flexible substrates.
- Power Efficient – Saves power when showing dark images.
- Fast Response – Great for videos and animations.
Common Uses
- Smartphones
- Smartwatches
- High-end TVs
- VR headsets
Comparison (AMOLED vs LCD)
| Feature | AMOLED | LCD |
|---|---|---|
| Black Level | True black (pixels off) | Backlight leakage |
| Contrast | Very high | Lower |
| Viewing Angle | Excellent | Good, but not perfect |
| Power Usage | Lower for dark screens | Constant (backlight always on) |
| Thickness | Thinner, can be flexible | Thicker, rigid |
