NEMA 23 Motor
NEMA 23 Motor Overview
A NEMA 23 motor is a stepper motor with a standard mounting flange size defined by the National Electrical Manufacturers Association (NEMA). It is widely used in CNC machines, 3D printers, robotics, and automation systems.
Key Features of NEMA 23 Motor
1. Frame Size

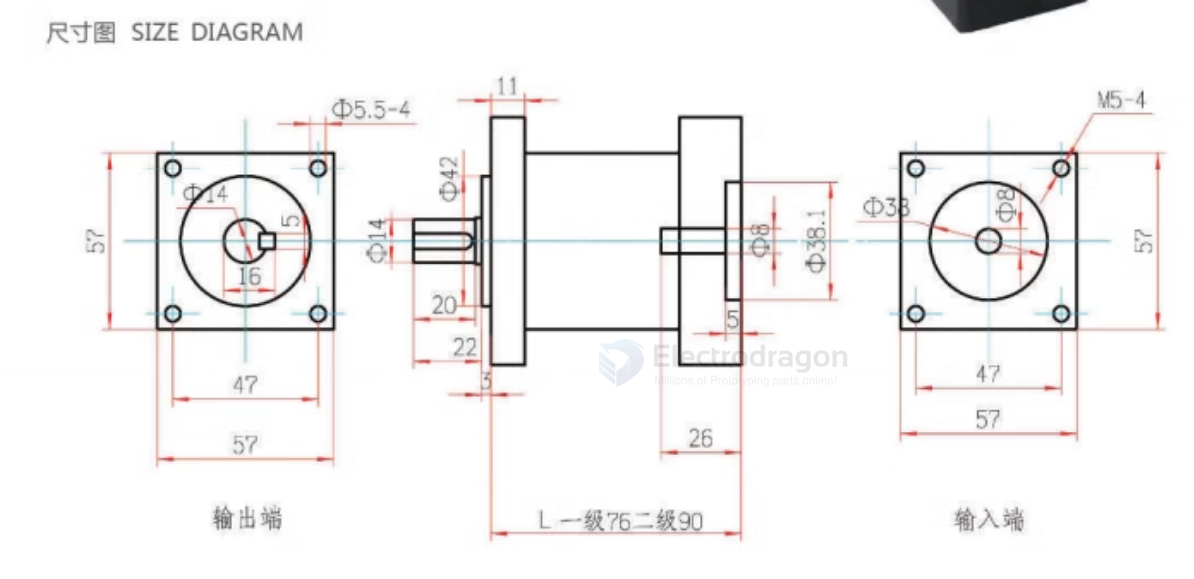

- The NEMA 23 standard specifies that the motor has a 2.3-inch (57.15mm) x 2.3-inch (57.15mm) faceplate size for mounting.
- The length of the motor varies, affecting torque and power output.
2. Stepper Type
- Most NEMA 23 motors are stepper motors, typically 1.8° per step (200 steps per revolution), but variations exist.
- Some models have finer step angles (e.g., 0.9° per step, 400 steps per revolution).
3. Torque & Power
- The torque varies based on the motor length and current rating, typically ranging from 0.3 Nm to over 3.0 Nm.
- Higher torque versions are often longer and require higher current.
4. Voltage & Current
- Operates typically on 12V to 48V (varies based on driver and application).
- Current ratings range from 2A to 6A per phase, depending on the winding configuration.
5. Shaft & Wiring
- Shaft diameter is usually 6.35mm (1/4 inch) or 8mm.
- Common wiring configurations: 4-wire, 6-wire, or 8-wire for unipolar or bipolar operation.
Common Applications of NEMA 23 Stepper Motors
- CNC Machines (milling, laser cutters, engraving machines)
- 3D Printers (especially for larger or industrial-grade machines)
- Robotics & Automation Systems
- Textile and Packaging Machines
- Conveyor Belt Systems
