N20-dat

Board images

use panel front M1.6 x2 for installation

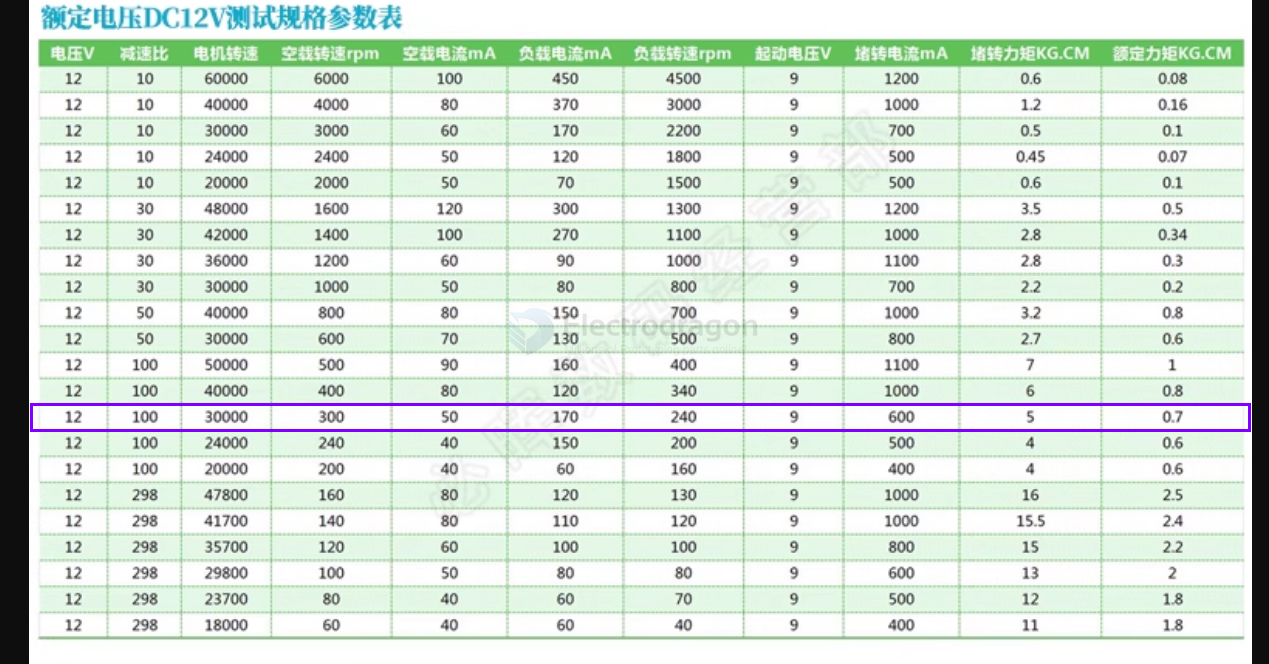

12V Version performance

Power	电压V	减速比	电机转速	空载转速rpm	空载电流mA	负载电流mA	负载转速rpm	起动电压V	堵转电流mA	堵转力矩KG.CM	额定力矩KG.CM
	12	10	60000	6000	100	450	4500	9	1200	0.6	0.08
	12	10	40000	4000	80	370	3000	9	1000	1.2	0.16
	12	10	30000	3000	60	170	2200	9	700	0.5	0.1
	12	10	24000	2400	50	120	1800	9	500	0.45	0.07
	12	10	20000	2000	50	70	1500	9	500	0.6	0.1
	12	30	48000	1600	120	300	1300	9	1200	3.5	0.5
	12	30	42000	1400	100	270	1100	9	1000	2.8	0.34
	12	30	36000	1200	60	90	1000	9	1100	2.8	0.3
	12	30	30000	1000	50	80	800	9	700	2.2	0.2
	12	50	40000	800	80	150	700	9	1000	3.2	0.8
	12	50	30000	600	70	130	500	9	800	2.7	0.6
	12	100	50000	500	90	160	400	9	1100	7	1
	12	100	40000	400	80	120	340	9	1000	6	0.8
	12	100	30000	300	50	170	240	9	600	5	0.7
0.12W	12	100	24000	240	40	150	200	9	500	4	0.6
	12	100	20000	200	40	60	160	9	400	4	0.6
	12	298	47800	160	80	120	130	9	1000	16	2.5
	12	298	41700	140	80	110	120	9	1000	15.5	2.4
	12	298	35700	120	60	100	100	9	800	15	2.2
	12	298	29800	100	50	80	80	9	600	13	2
	12	298	23700	80	40	60	70	9	500	12	1.8
	12	298	18000	60	40	60	40	9	400	11	1.8

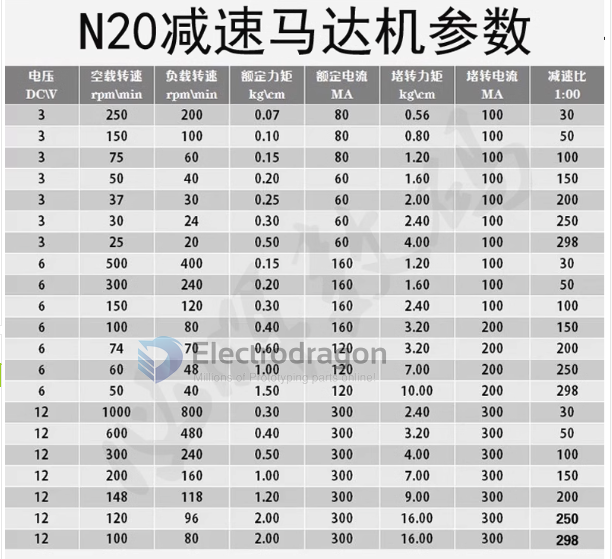

ALL version performance

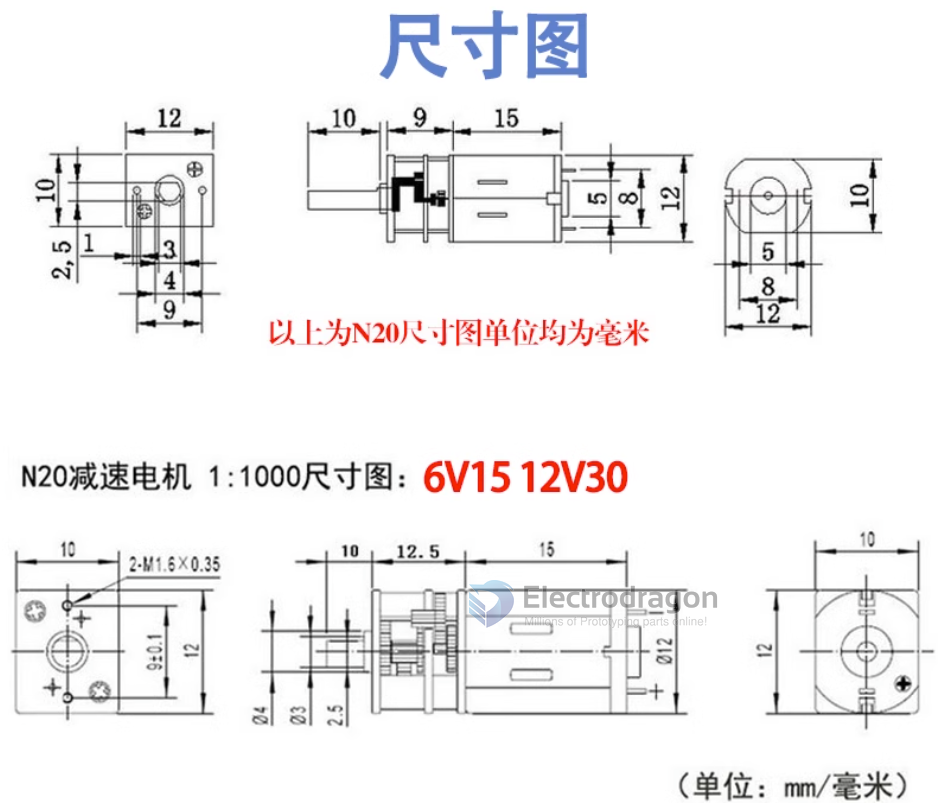

Dimension

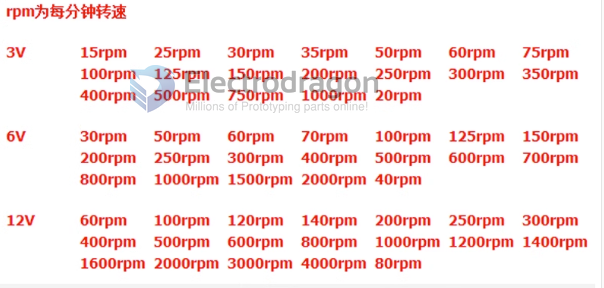

RPM
