ESP-IDF MIPI-DSI LCD Example

The ESP32-P4 uses the ESP32-P4NRW32 chip, which features:

• Compliance with the MIPI-DSI protocol, using D-PHY v1.1, up to 2 lanes at 1.5Gbps each (total 3Gbps)
• Support for RGB888, RGB565, and YUV422 input formats
• Support for RGB888, RGB666, and RGB565 output formats
• Video mode output for streaming video and fixed image patterns
• MIPI-DSI image processing can also use the 2D-DMA controller, with support for PPA and JPEG codec peripherals

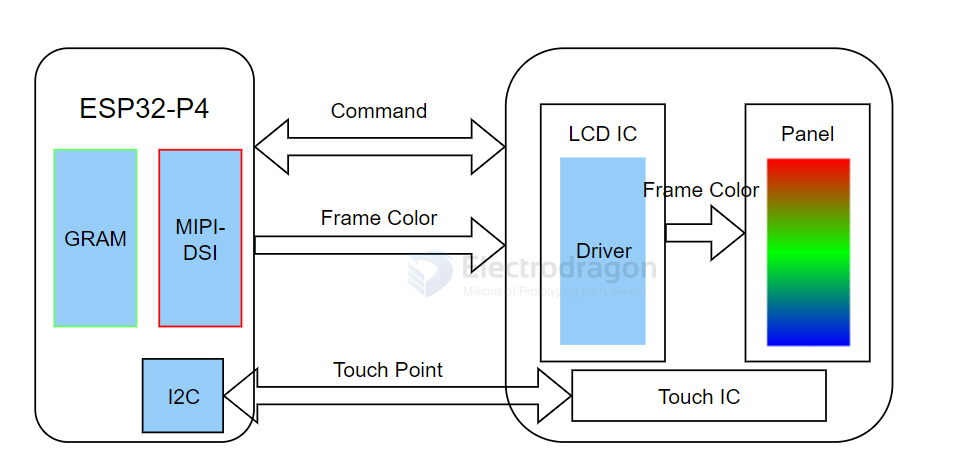

MIPI-DSI LCD Driver Principle

Required Hardware

• 10.1-inch display and accessories
• ESP32-P4 (host)

Steps to Light Up the Display

1. The driver for the 10.1-inch display is packaged as a component and available in the ESP Component Registry.

2. Add the component to your project:

   idf.py add-dependency "waveshare/esp_lcd_jd9365_10_1"

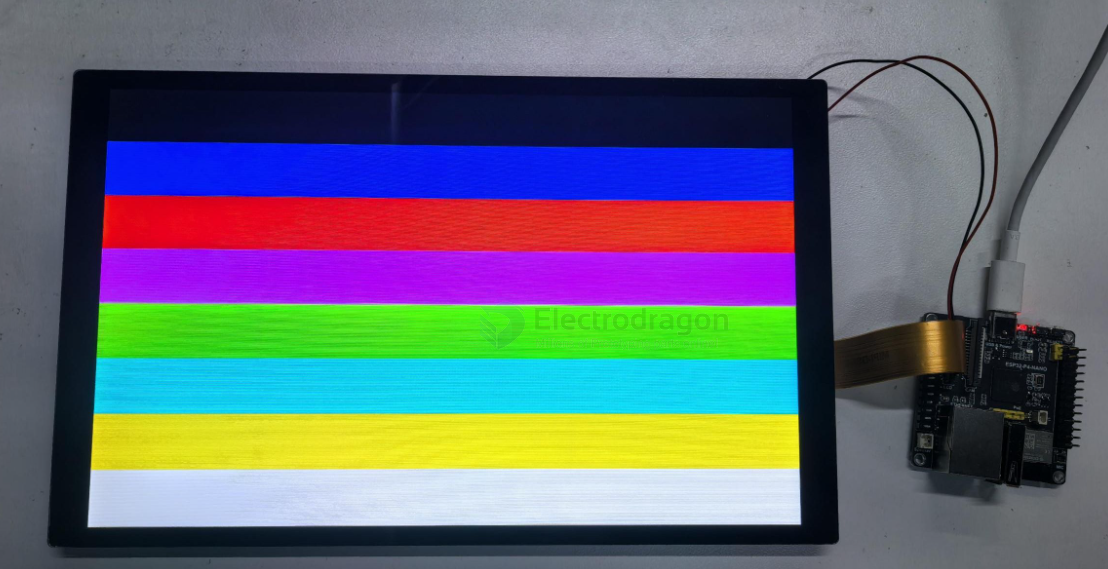

3. Open your project, select the esp32p4 core, then click the 🔥 (build/flash/monitor) button. When complete, you should see the screen light up and display color bars:

ref
