Are SPDIF and TOSLINK the Same?

SPDIF-dat

Short answer:
TOSLINK is one type of SPDIF connection.

Detailed Explanation

Term	What it is	Key Detail
SPDIF	A digital audio protocol/standard	Stands for Sony/Philips Digital Interface. It defines how digital audio data is formatted and transmitted.
TOSLINK	A type of physical connector (using optical fiber)	Developed by Toshiba; one way of transmitting SPDIF using light (fiber optic).

SPDIF Transmission Types

Coaxial SPDIF (electrical signal)
- Connector: RCA (looks like typical video/audio jacks)
- Uses copper wire (electrical signal)
Optical SPDIF (TOSLINK)
- Connector: TOSLINK or Mini-TOSLINK
- Uses fiber optic cable (light signal)

Key Differences

Feature	Coaxial SPDIF	Optical SPDIF (TOSLINK)
Signal Type	Electrical (copper)	Optical (light)
Connector Type	RCA	TOSLINK (square) or Mini-TOSLINK (3.5mm)
Susceptible to EMI	Yes	No (immune to electromagnetic interference)
Cable Length Limit	Up to ~10m (longer with good cable)	Usually up to ~5m for reliable signal

Summary

SPDIF = the format/protocol
TOSLINK = one type of SPDIF connector using optical fiber

TOSLINK

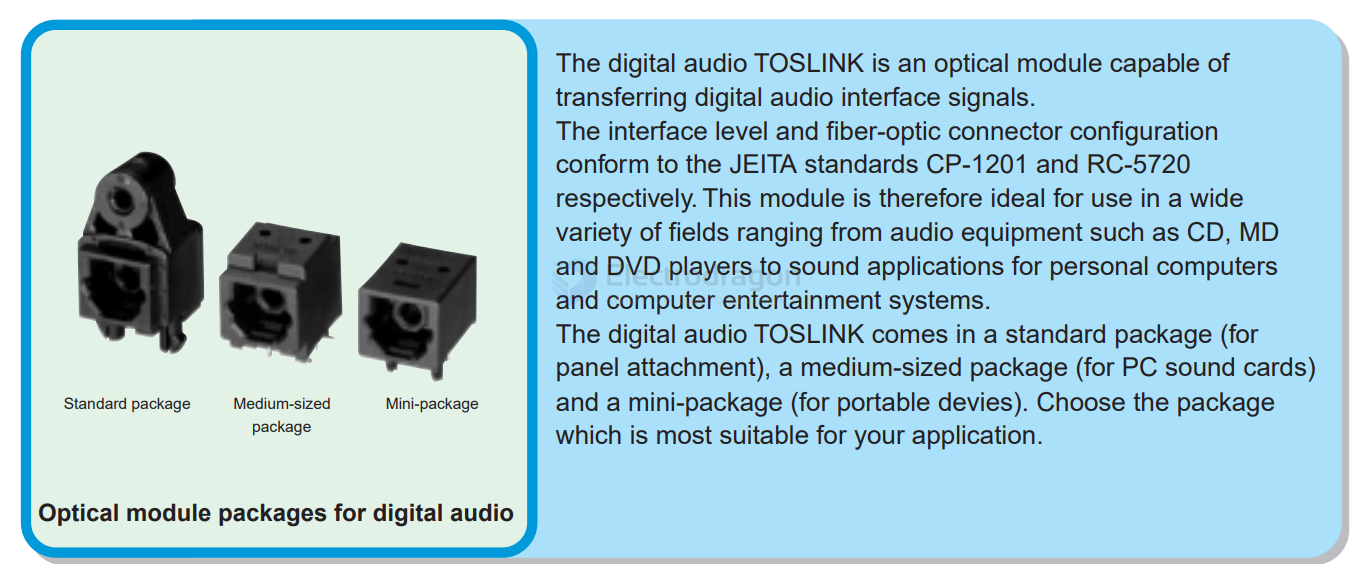

TOSLINK is a standardized optical fiber connection system for transmitting digital audio signals between devices.
It uses a fiber optic cable with a plastic or glass core to carry the light signal, which represents the audio data.

https://en.wikipedia.org/wiki/TOSLINK

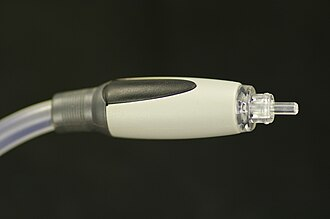

TOSLINK Cable and connectors

== SPDIF-dat

These cables and connectors are TOSLINK optical digital audio cables with Mini-TOSLINK adapters or plugs on the end.

Explanation:

TOSLINK (Toshiba Link) is a standardized optical fiber connection system used for transmitting digital audio signals.

The black rectangular connector with a square end is the standard TOSLINK connector.

The gold-tipped center pin is actually a Mini-TOSLINK plug, which is an optical connector in the shape and size of a standard 3.5mm headphone jack, used in some laptops and portable devices (e.g., MacBooks, MiniDisc players).

These cables are often used to transmit high-quality audio (like Dolby Digital or DTS) from a source like a DVD player, gaming console, or PC to an AV receiver or soundbar.

OD: 2.2mm

This refers to the outer diameter of the cable (2.2mm), which is relatively thin, indicating it's a lightweight optical fiber cable.

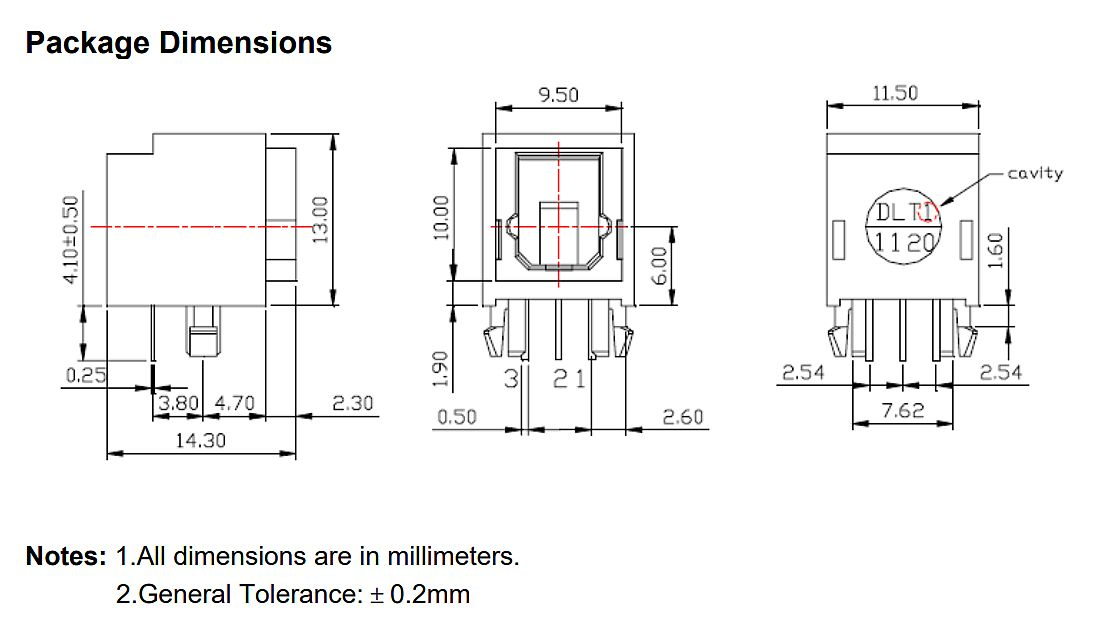

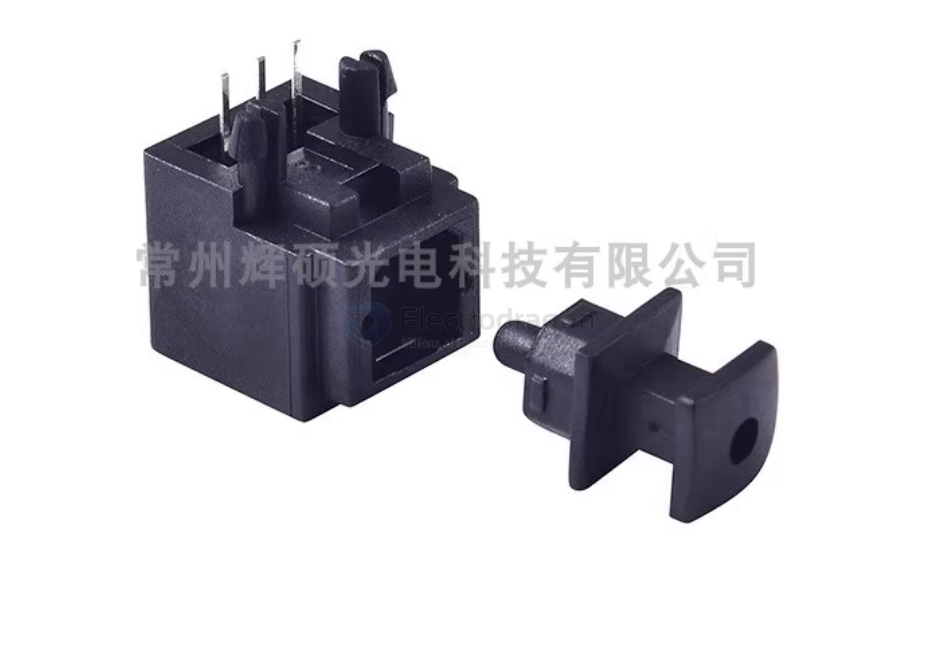

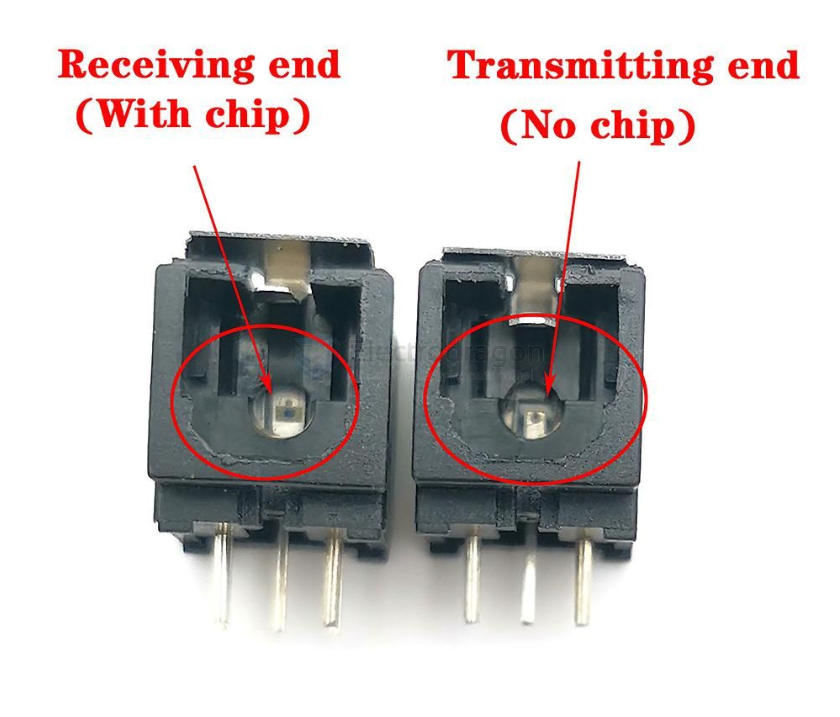

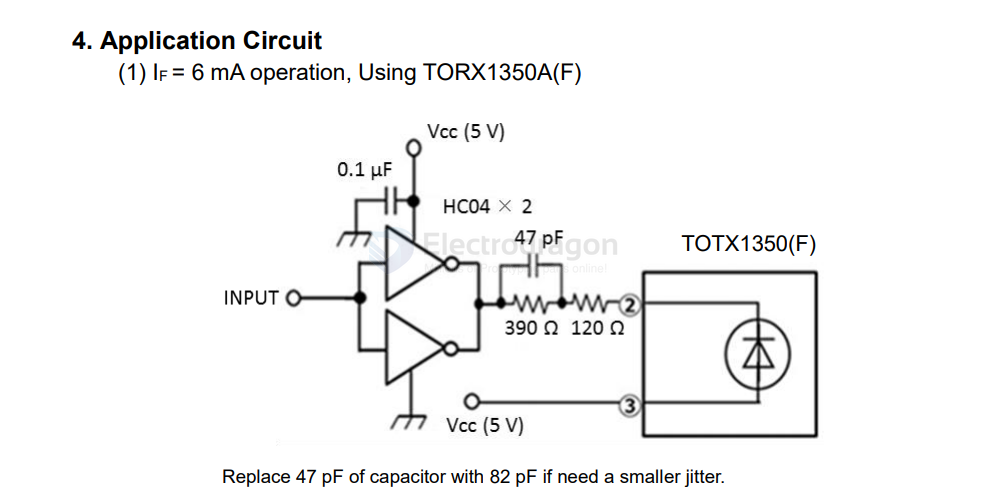

DLT1120 fiber optic transmitter

Toslink DLT1120 fiber optic transmitter The light-emitting unit is a standard packaging product with connectors and optoelectronic components, and is packaged with LEDs and driver ICs. The function of the unit converts electrical signals into optical signals and transmits.

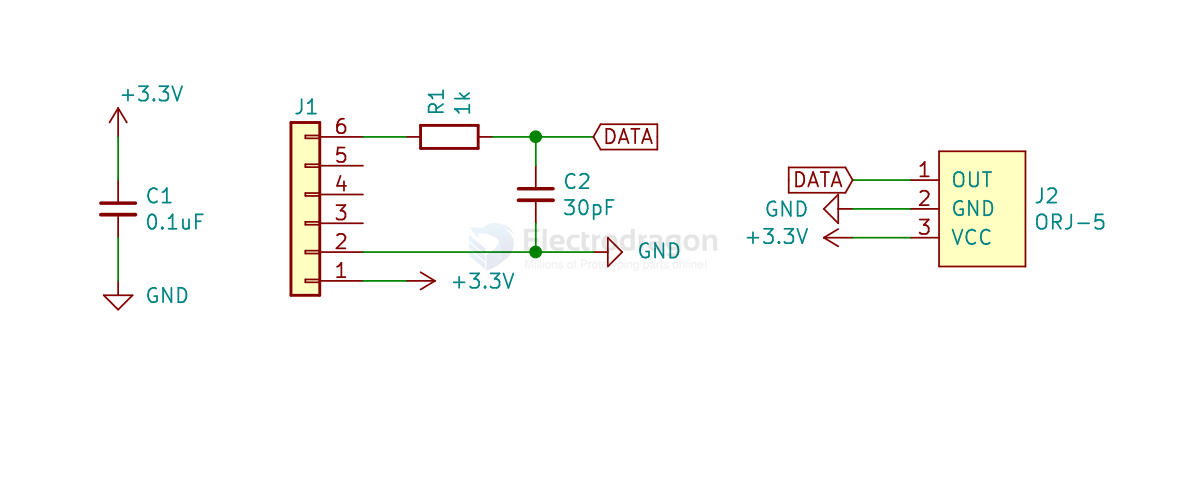

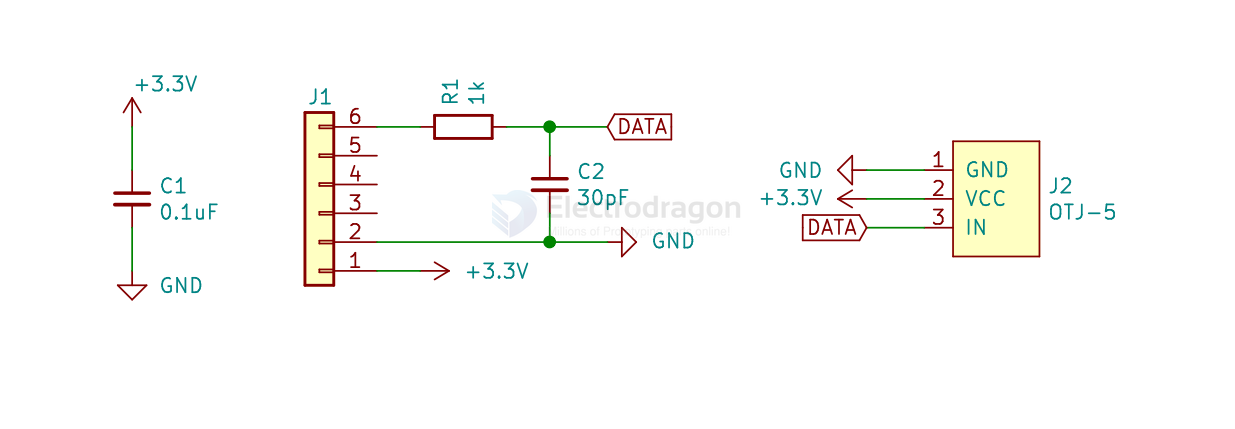

project SPDIF to TOSLink Adapter Hat for Quartz64

DLR 1121

DLR 2180

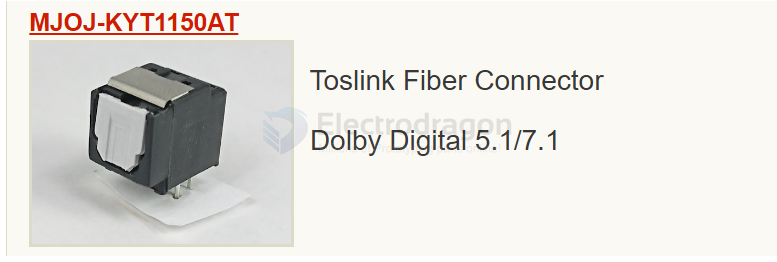

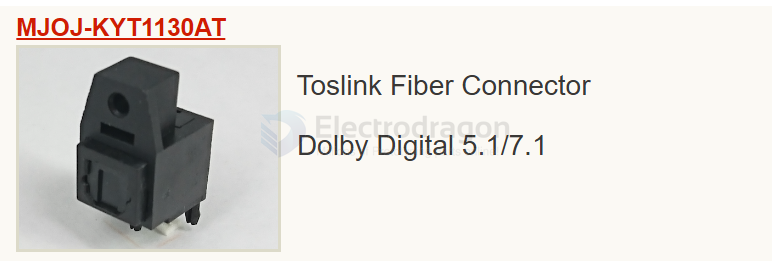

toslink-guide

Optical SPDIF (TOSLINK):

Uses optical fiber (plastic or glass).
Has a TOSLINK connector (square-ish plug).
Carries light-based digital signals.
Immune to electrical interference (a bonus in noisy environments).

Why Not Use TOSLINK for Transferring 5V TTL Serial Signals?

While TOSLINK (optical) is a popular and widely used optical standard, especially for consumer audio (like SPDIF), it's not ideally suited for directly transferring TTL serial signals like 5V logic. Here's why POF (Plastic Optical Fiber) is often a better choice for serial TTL communication over TOSLINK:

🔍 Key Differences:

1. Signal Type:

TOSLINK (SPDIF) carries digital audio data, which is encoded in a biphase-mark format (a specific way of encoding 1s and 0s for audio).
- It's not raw TTL, so you'd need a decoder or receiver chip to convert it back into useful serial data.
- It's designed for audio signals, not serial communication.
POF (Plastic Optical Fiber) with TTL transceivers is specifically designed to carry digital data signals such as serial UART, which is just raw bits (high and low voltages) transmitted directly over light.

2. Electrical Compatibility:

TOSLINK optical transmitters and receivers are designed for audio signals that operate at relatively lower frequencies (44.1kHz or 48kHz for audio sampling).
- TTL signals, on the other hand, are high-speed and require a continuous stream of binary data (e.g., 115200 baud rate or higher) without the need for extra encoding schemes.
POF with TTL transceivers directly handles 5V logic signals, making it simpler and more compatible with serial communication.
