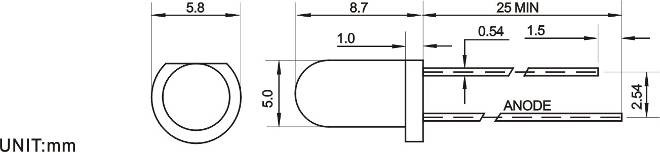

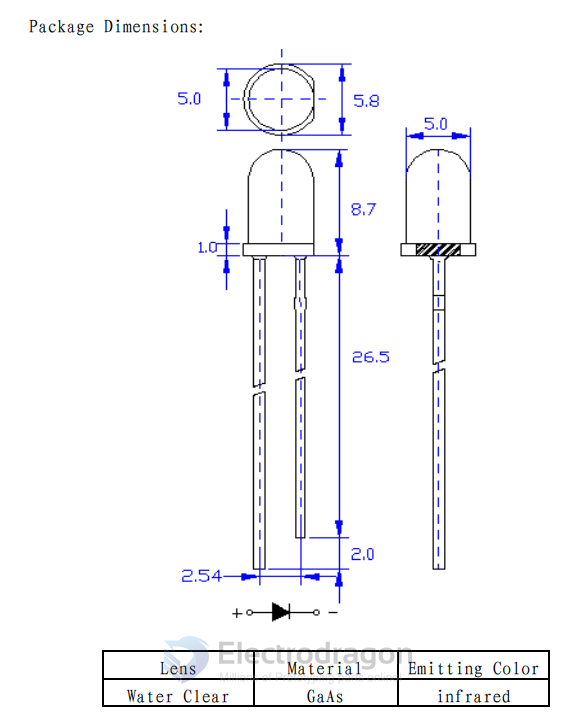

5mm 940nm common IR sender
Wavelength: 940nm
Transmission range: This component is an infrared emission tube.
The emission range is directly related to the sensitivity of the emission drive circuit and reception, so the emission range does not belong to its attributes.
The empirical value range of this emission tube installed on the remote control is 10m.
Features
- ◇Fast response time
- ◇High photo sensitivity
- ◇Small junction capacitance
- ◇Pb free
Descriptions
- 5003MDis a high speed and high sensitive PIN
- photodiode in a standard 5Φplastic package.
- The device is matched to infrared emitting diode.
Applications
- ◇ Infrared applied system.
- ◇ Counters and sorters
- ◇ Encoders
- ◇ Floppy disk drive.
- ◇ Optoelectronic switch
- ◇ Video camera, Tape and card readers
- ◇ Position sensors

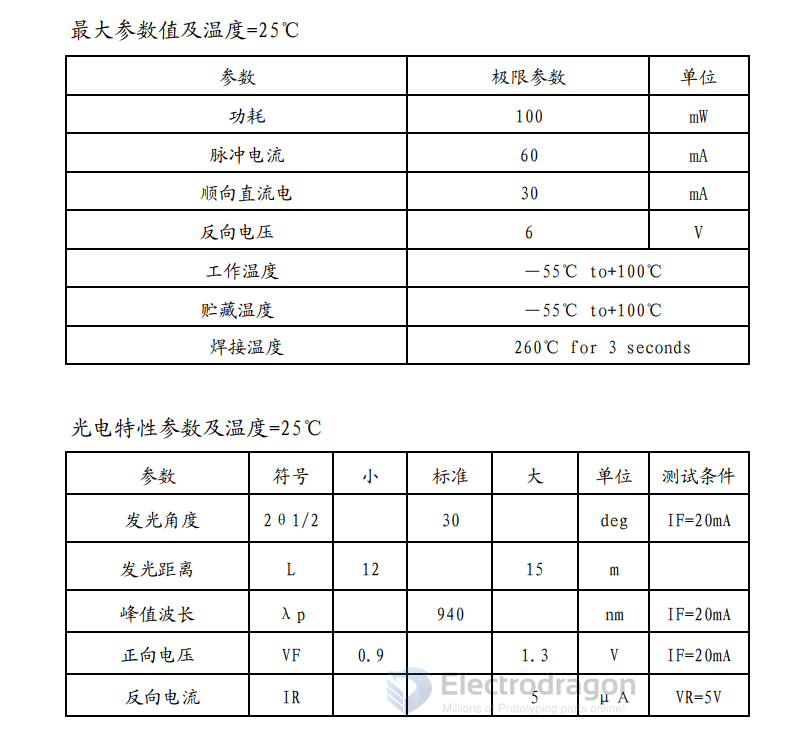

Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min. TYP. Max. Unit Condition
- Rang Of Spectral Bandwidth λ0.5 400 --- 1100 nm ---
- Wavelength Of Peak Sensitivity λP --- 940 --- V ---
- Open-Circuit Voltage VOC --- 0.39 --- V Ee=5mW/cm2, λp=940nm
- Short- Circuit Current ISC --- 35 --- μA Ee=1mW/cm2, λp=940nm
- Reverse Light Current IL 25 35 --- μA Ee=1mW/cm2, λp=940nm, VR=5V
- Reverse Dark Current ID --- 5 30 nA Ee=0mW/cm2, VR=10V
- Reverse Breakdown Voltage BVR 32 170 --- V Ee=0mW/cm2
- IR=100μA
- Total Capacitance Ct --- 18 --- pF Ee=0mW/cm2, VR=5V, f=1MHz
- Rise/Fall Time tr/tf --- 45/45 --- nS VR=10V, RL=1000Ω
unlisted
SMD

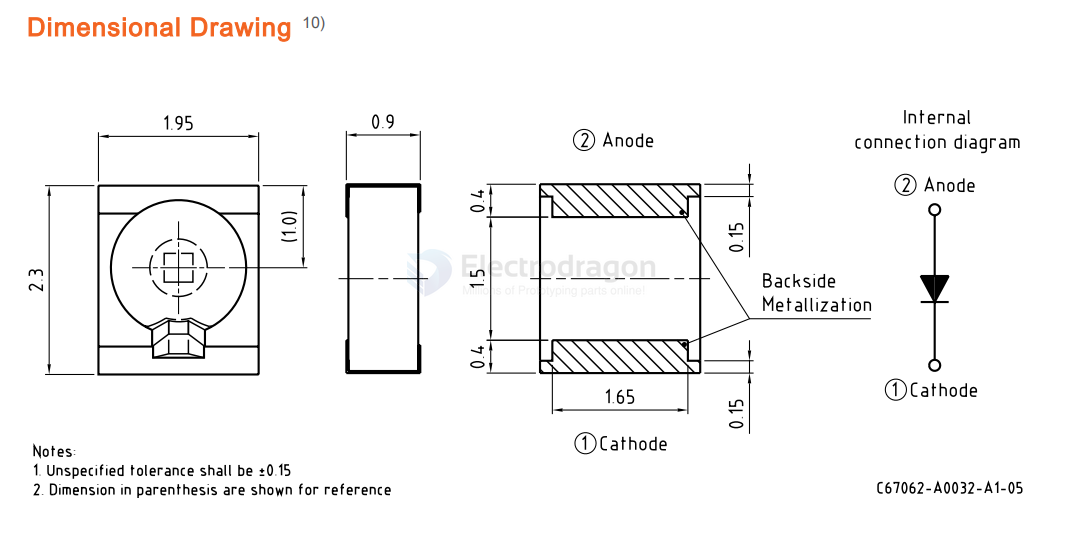

SFH 4441 == Infrared Emitters Infrared 940nm
