Inverters
SN54HC14, SN74HC14 == SNx4HC14 Hex Inverters with Schmitt-Trigger Inputs
implementation
74AHC1G125 = SINGLE BUFFER GATE WITH 3-STATE OUTPUT
The 74AHC1G125 is a single non-inverting buffer/bus driver with a 3-state output. The output enters a high impedance state when a HIGH-level is applied to the output enable (OE) pin. The device is designed for operation with a power supply range of 2.0V to 5.5V.
https://www.diodes.com/assets/Datasheets/74AHC1G125.pdf
| OE | A | Y |
|---|---|---|
| L | H | H |
| L | L | L |
| H | X | Z |
The output enters a high impedance state when a HIGH-level is applied to the output enable (OE) pin.

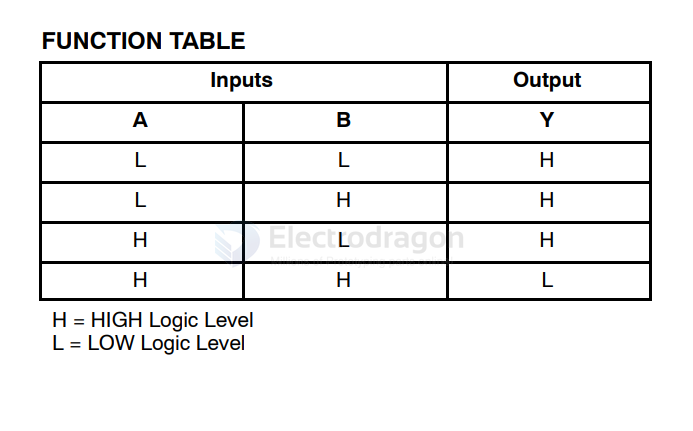

NAND
SN74HC00N == 'NAND' GATE QUAD, 2 -INPUT
SN74HCS30DR - SN74HCS30 Single 8-Input NAND Gate with Schmitt-Trigger Inputs
MC14093BCP - Quad 2-Input “NAND" Schmitt Trigger
NC7SZ00
The NC7SZ00 is a single two−input NAND gate from onsemi’s Ultra−High Speed (UHS) series of TinyLogic.
AND
SN74HC11N == 'AND' GATE TRIPLE, 3-INPUT
SN74AHC1G08
SN74AHC1G08 Single 2-Input Positive-AND Gate
The SN74AHC1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function
Y = A ● B
or Y = A + B
in positive logic.
| A | B | Y |
|---|---|---|
| H | H | H |
| L | X | L |
| X | L | L |
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
| Term | Meaning |
|---|---|
| AND gate | Basic logic gate: output is 1 only if both inputs are 1 |
| Positive-AND gate | Same thing — "positive" means using standard logic levels (high = 1) |
| Negative logic | Less common, where high voltage = logic 0 |
OR gate
74HCT32D - Quad 2-Input OR Gate
NC7SZ32 - TinyLogic UHS Two-Input OR Gate
more gate chips
CDx4HC11 == Triple 3-Input AND Gates
CD4001B, CD4002B, CD4025B == CMOS NOR Gates
dual
DS75451/2/3 Series Dual Peripheral Drivers
The DS75451, DS75452 and DS75453 are dual peripheral AND, NAND and NOR drivers, respectively, (positive logic) with the output of the logic gates internally connected to the bases of the NPN output transistors.
