General Description
The Realtek RTL8211FD-CG/RTL8211FDI-CG is a highly integrated Ethernet transceiver that is compatible with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5 UTP cable. The RTL8211FDI-CG is manufactured to industrial grade standards.
The RTL8211FD(I)-CG uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented in the RTL8211FD(I)-CG to provide robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps.
Data transfer between MAC and PHY is via the Reduced Gigabit Media Independent Interface (RGMII) for 1000Base-T, 10Base-T, and 100Base-TX. The RTL8211FD(I)-CG supports various RGMII signaling voltages, including 3.3, 2.5, 1.8, and 1.5V.
- 1000Base-T
- 10Base-T
- 100Base-TX
The RTL8211FD(I)-CG incorporates a linear Low-Dropout Regulator (LDO) that features high power supply ripple rejection and low output noise. The built-in LDO means a power inductor is not required for the RTL8211FD(I)-CG; only an output capacitor is required between the 1.0V output and the analog ground for phase compensation, which saves cost and PCB real estate.

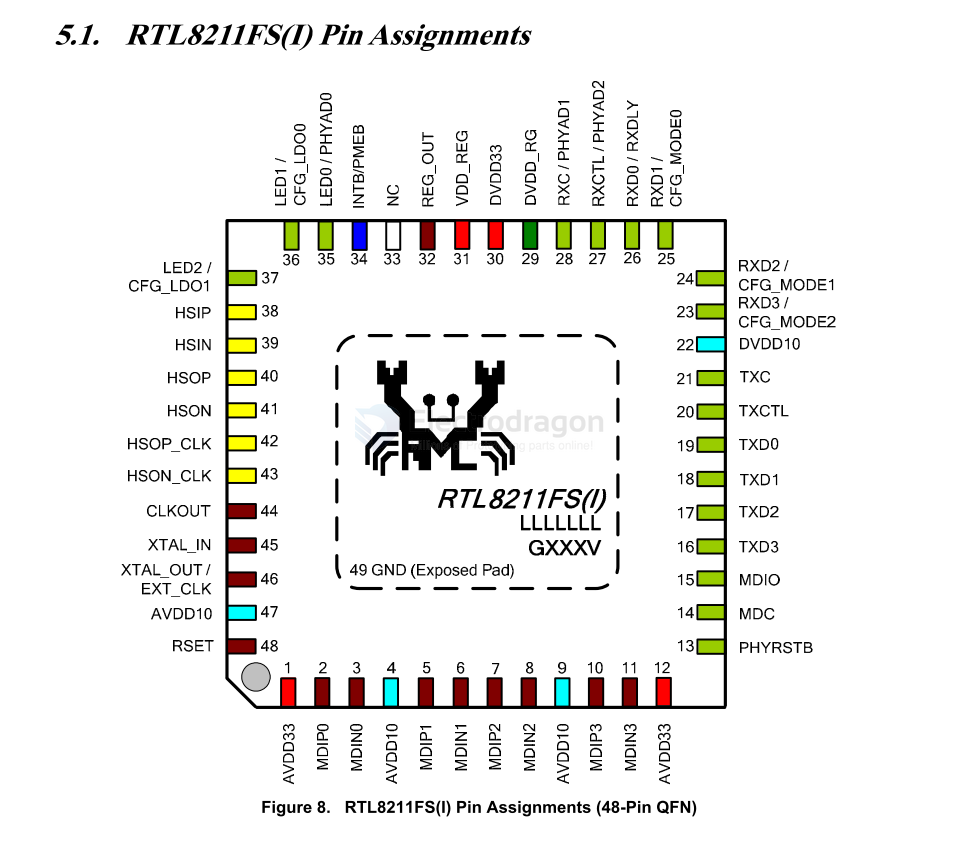

Pin Assignments
Apps

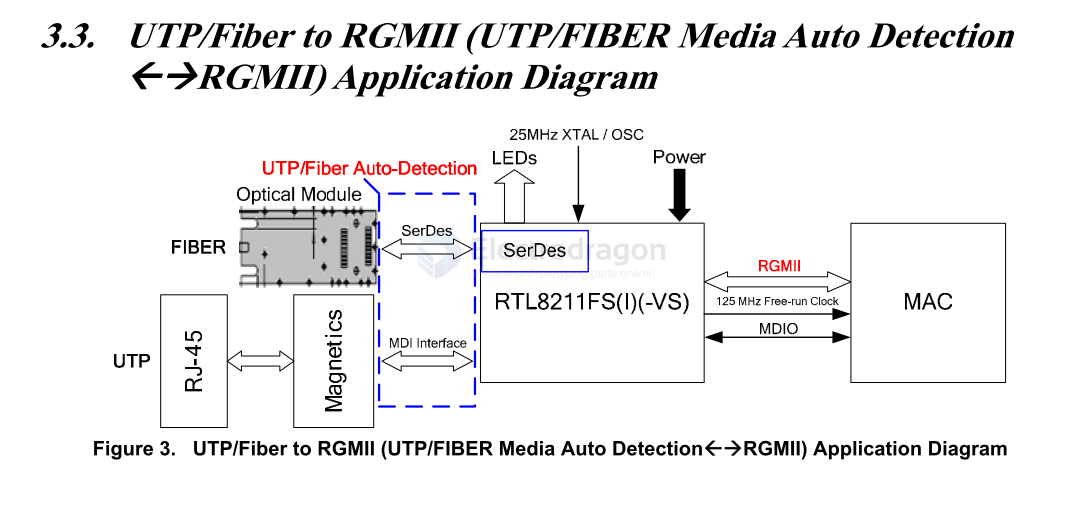

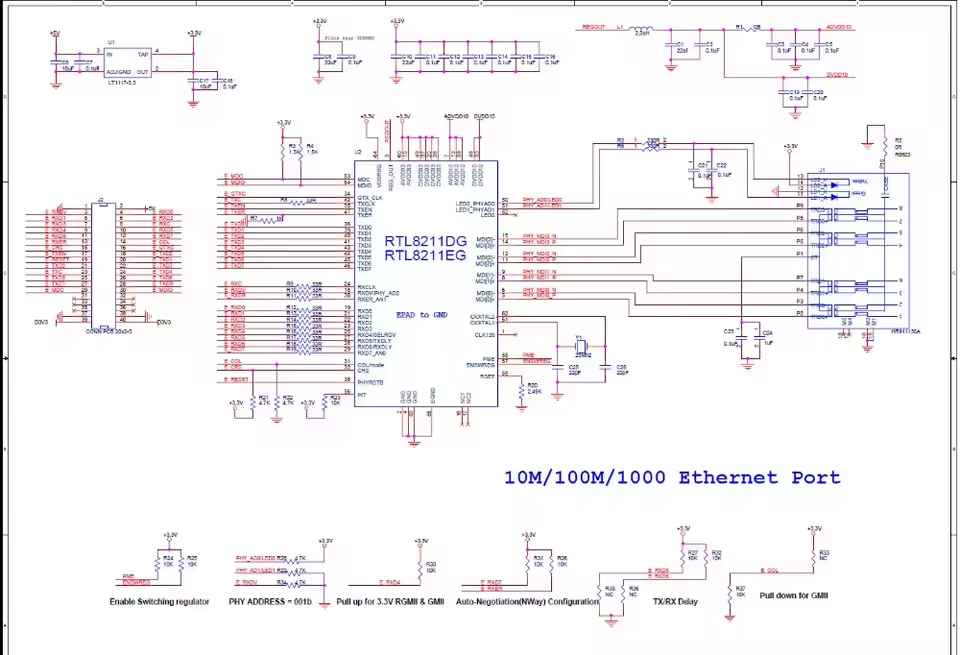

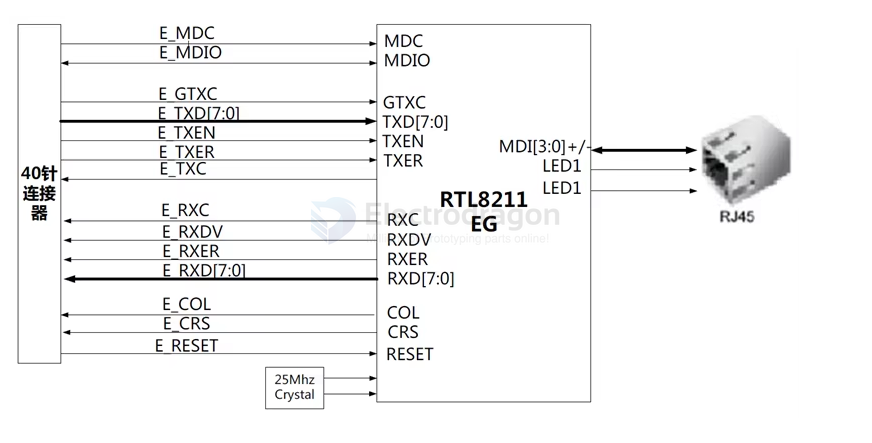

Demo Board

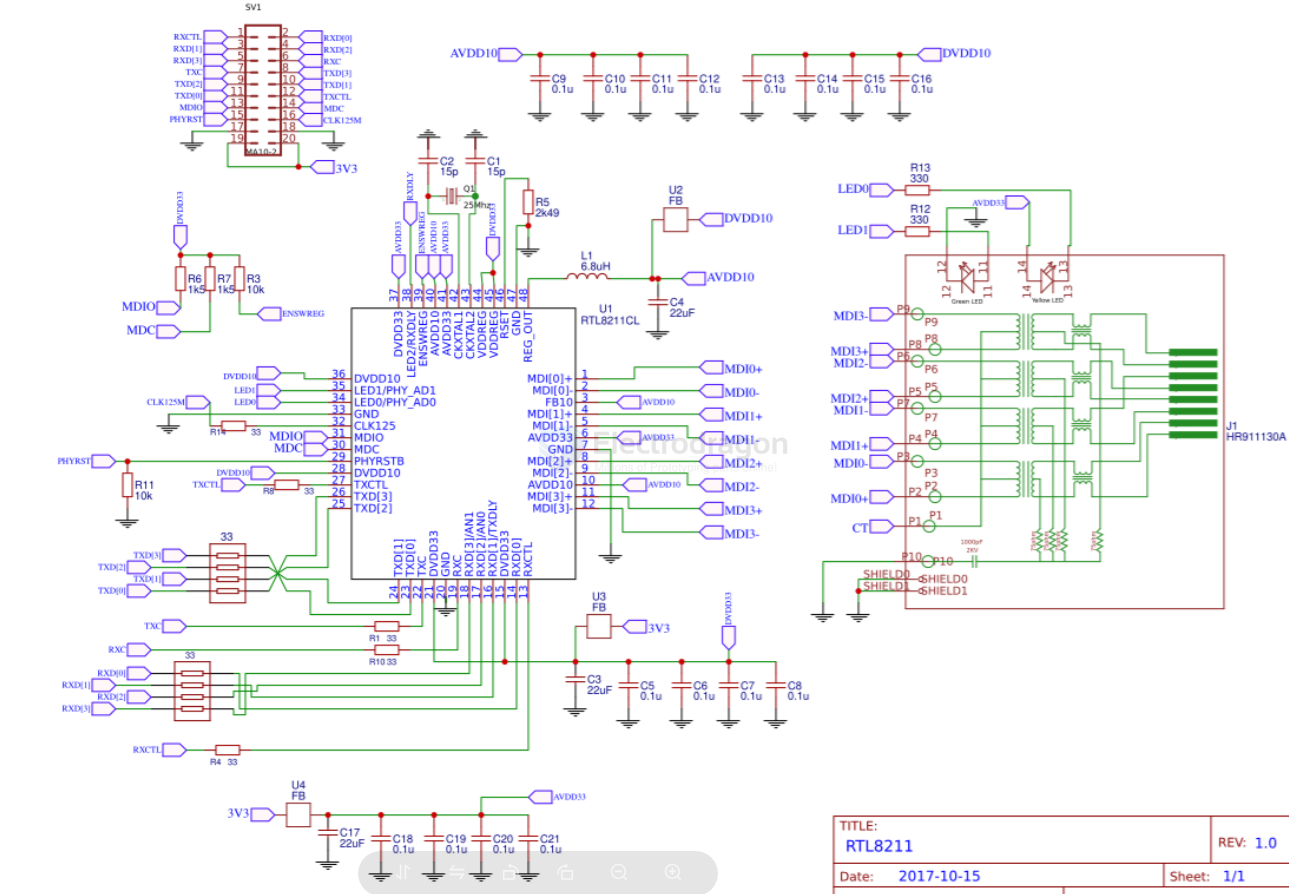

Gigabit ethernet phy 1000base-tx RTL8211CL

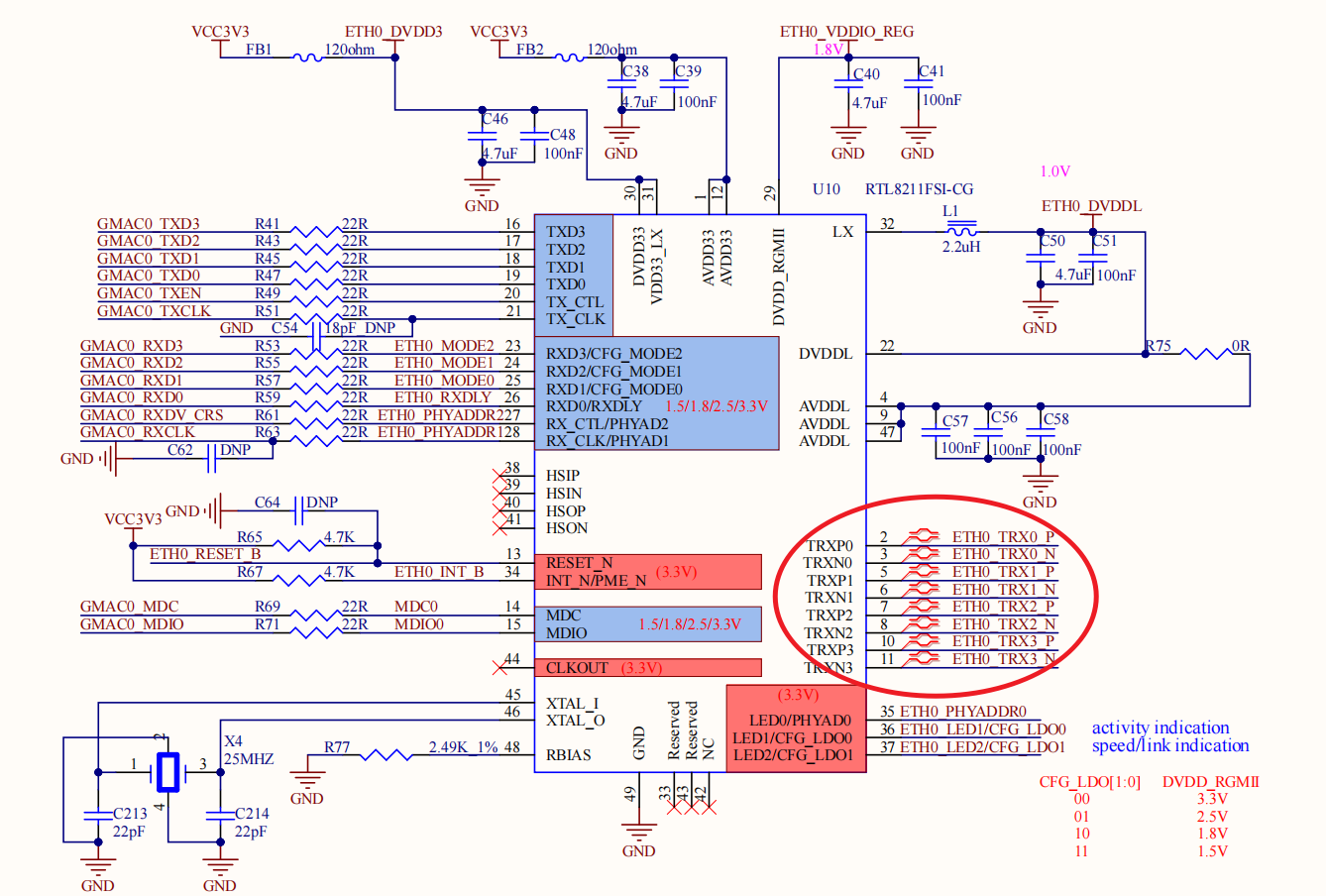

RTL8211 with RK356x
