RTL8189ES
Single-Chip IEEE 802.11b/g/n 1T1R WLAN Controller with SDIO Interface
General Description
The Realtek RTL8189ES-VB-CG is a highly integrated single-chip 802.11n Wireless LAN (WLAN) network SDIO interface (SDIO 1.1/ 2.0/ 3.0 compatible) controller. It is a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip. The RTL8189ES-VB provides a complete solution for a high-throughput performance integrated wireless LAN device.
https://www.realtek.com/Product/Index?id=594&cate_id=194

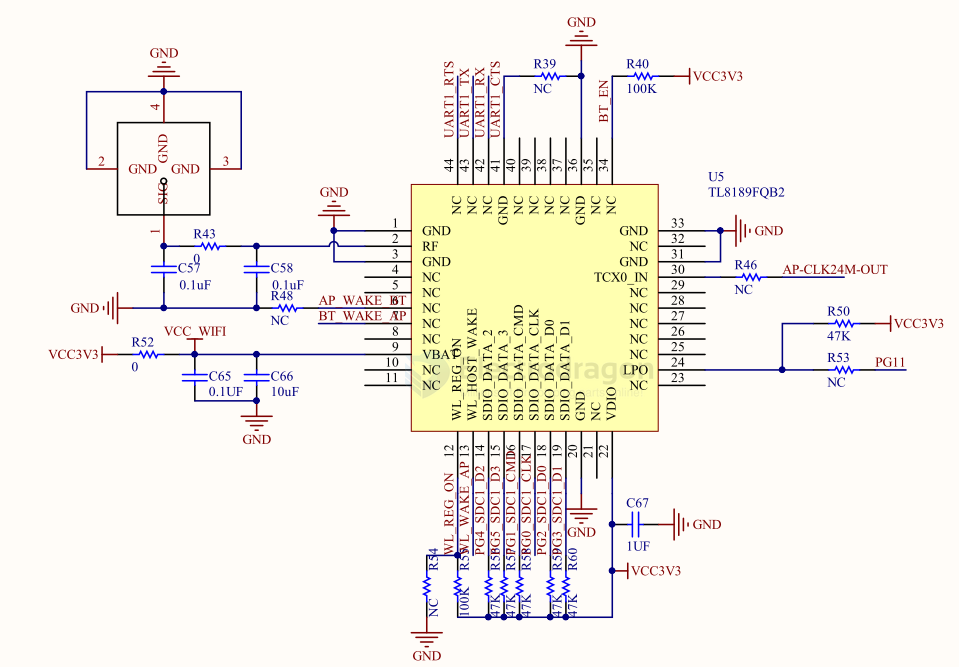

TL8189 SCH to F133-dat
