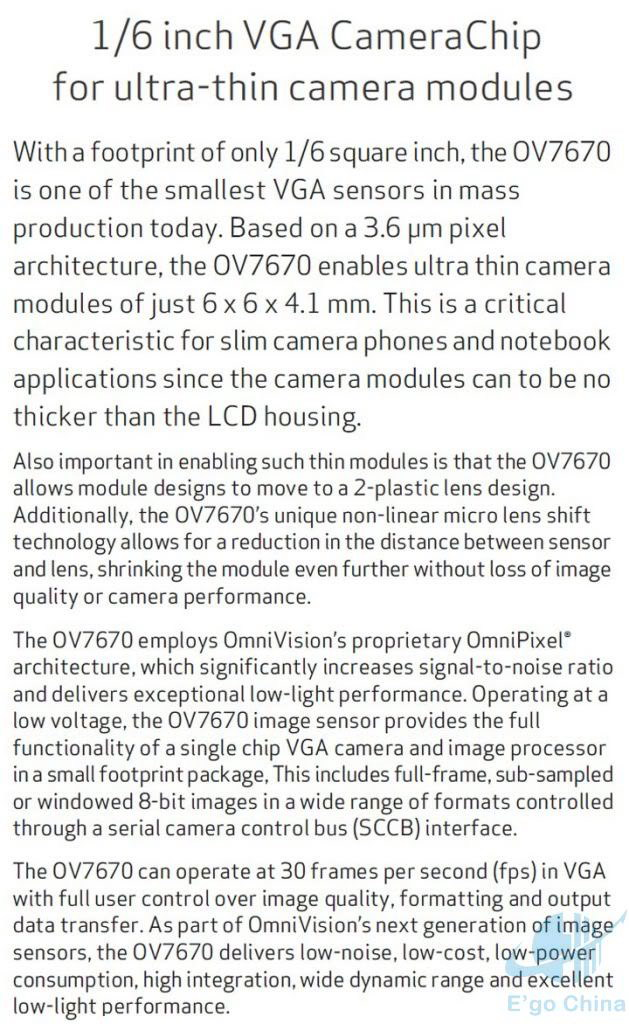

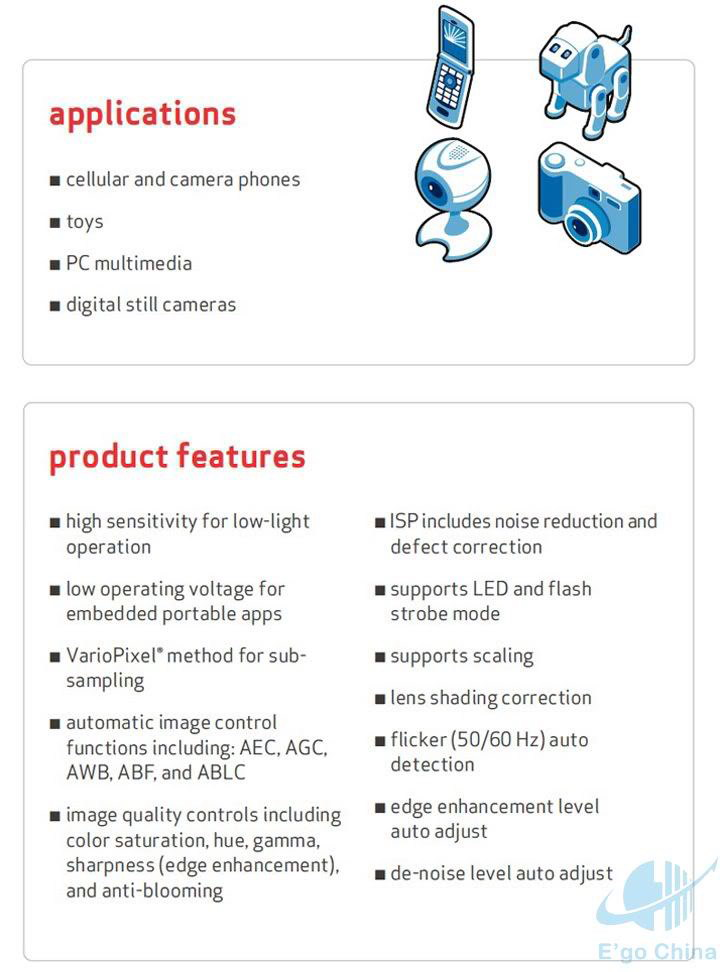

Features
- The Ov7670 image sensor is small in size, low in operating voltage, and provides all the functions of a single-chip VGA camera and image processor.
- Through SCCB bus control, various resolution 8-bit impact data can be output in the form of full frame, sub-sampling, windowing, etc.
- The VGA image of this product reaches a maximum of 30 frames/second.
- Users have complete control over image quality, data format and transfer method.
- All image processing functions including gamma curve, white balance, saturation, color, etc. can be programmed through the SCCB interface.

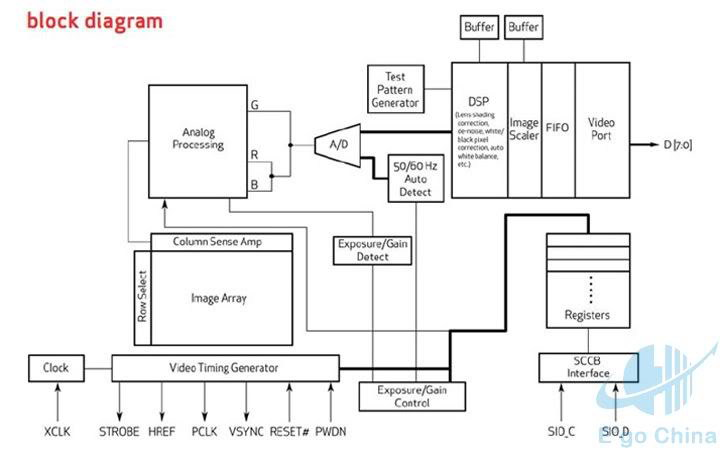

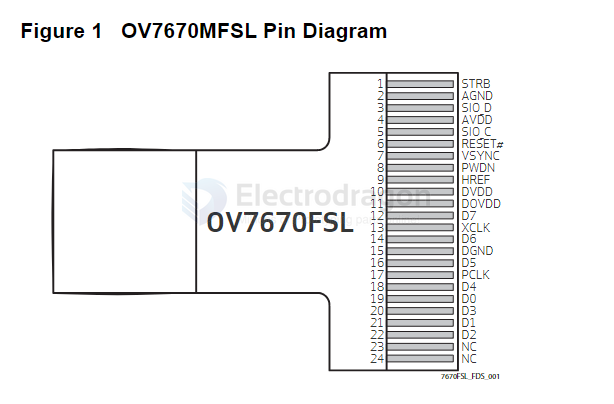

interface
Serial Camera Control Bus (SCCB) interface
SCH

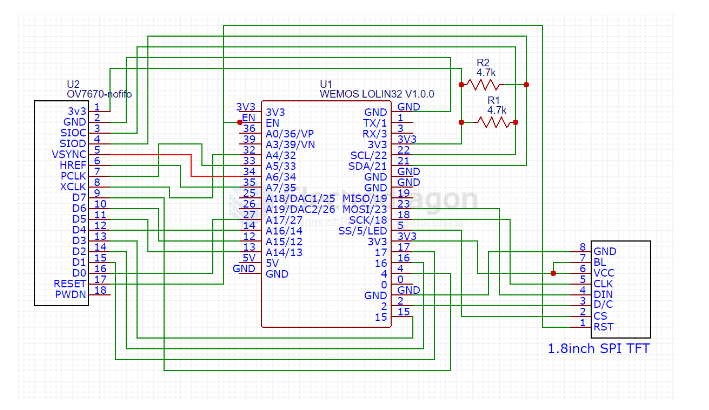

w/ESP32
demo code repo
- https://github.com/bitluni/ESP32CameraI2S
- https://github.com/igrr/esp32-cam-demo (archieved, merge into main esp32 repo)
- https://github.com/LilyGO/ESP32-Camera-OV7725/blob/master/ESP32_Camera/ESP32_I2S_Camera.ino
- Chip-dat/OmniVision-dat/OV7670-dat/C8051F330_OV7670-V3.0-controlkeil.rar
setup
#include <WiFi.h>
#include <WiFiMulti.h>
#include <WiFiClient.h>
#include "BMP.h"
const int SIOD = 21; //SDA
const int SIOC = 22; //SCL
const int VSYNC = 34;
const int HREF = 35;
const int XCLK = 32;
const int PCLK = 33;
const int D0 = 27;
const int D1 = 17;
const int D2 = 16;
const int D3 = 15;
const int D4 = 14;
const int D5 = 13;
const int D6 = 12;
const int D7 = 4;
const int TFT_DC = 2;
const int TFT_CS = 5;
//DIN <- MOSI 23
//CLK <- SCK 18
#define ssid1 "TP-LINK_888" //Your wiff id
#define password1 "Zhang520521" //Your wiff password
