main specs
- 温度：-40~+80°℃
- 湿度：0~99.9%RH
- 精度：±0.3C/±3%RH

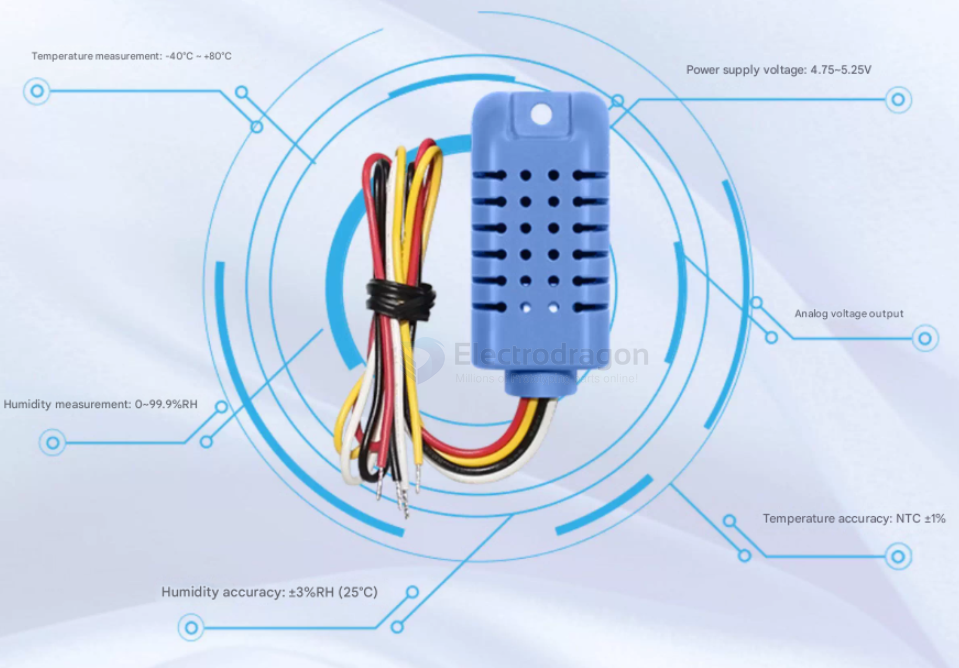

AM1011A — Upgraded Humidity & Temperature Sensor
AM1011A is an upgraded sensor module that includes a dedicated ASIC, a high-performance silicon-based capacitive humidity sensor and an on-chip temperature sensor. It provides an analog voltage output (0–3 V). Compared with the previous generation, AM1011A offers improved stability in high-temperature/high-humidity environments, better accuracy, faster response, and a wider measurement range. Each unit is factory calibrated and tested for reliable mass deployment.
Key specifications
| Item | Specification |
|---|---|
| Model | AM1011A |
| Supply voltage | DC 4.75–5.25 V |

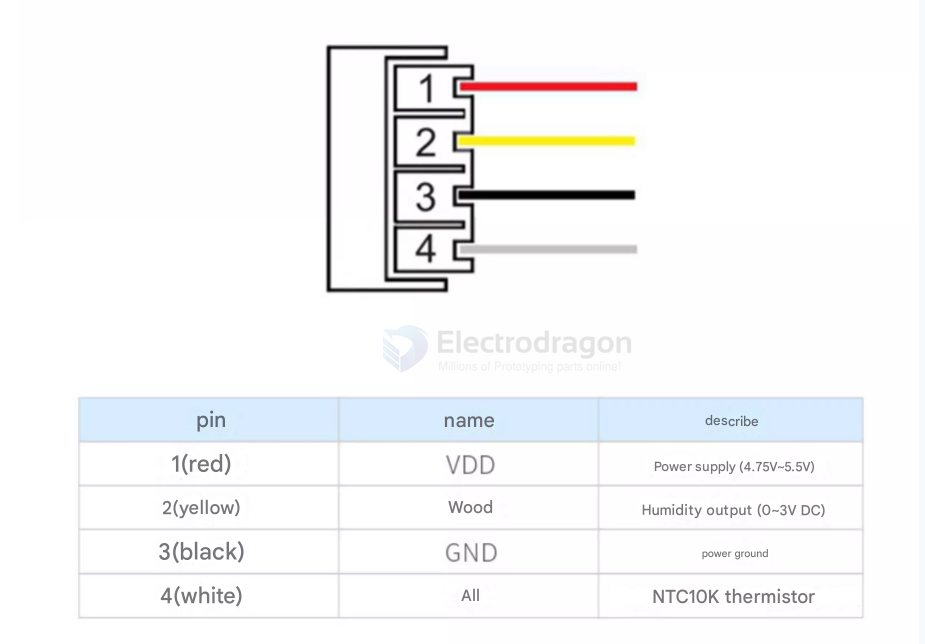

| Output signal | 0–3 V analog voltage; Temperature: 10 kΩ NTC output |
| Sensing elements | Silicon-based capacitive humidity sensor + on-chip temperature sensor (NTC) |
| Temperature range | -40 to +80 °C |
| Humidity range | 0 to 99.9 %RH |
| Temperature accuracy | Typical: ±0.3 °C (documentation also shows NTC tolerance ~±1%) |
| Humidity accuracy | ±3 %RH (typical) |
| Temperature resolution | 1 °C |
| Humidity repeatability | ±1 %RH |
| Humidity hysteresis | ±1 %RH |
| Long-term stability | Humidity drift < ±0.5 %RH / year; Temperature drift < 0.1 °C / year |
| Response time | Temperature: ~6 s; Humidity: <8 s (to 63% step) |
| Housing material | ABS + PC plastic |
| Power consumption | ~1.5 mA |
| Weight | ~9.2 g |
Notes:
- Some sources show slightly different temperature accuracy (NTC tolerance). Consult the official datasheet for final tolerances.
- AM1011A provides analog outputs; if you need digital interfaces, consider AMT1001 / AM232x family modules.
