XL7005 - 0.4A 150KHz 100V Buck DC to DC Converter
https://www.xlsemi.com/datasheet/XL7005A-EN.pdf
Features
- Operating Voltage: 5V~80V
- Output Adjustable from 1.25V to 20V
- Maximum Duty Cycle 90%
- Minimum Drop Out 2V
- Fixed 150KHz Switching Frequency
- Maximum 0.4A Output Current
- Recommend output power less than 5W
- Internal Optimize HV Power Transistor
- High efficiency up to 85%
- Excellent line and load regulation
- TTL shutdown capability
- Built in thermal shutdown function
- Built in output short Protection Function
- Built in current limit function
- SOP8-EP (Exposed PAD) package

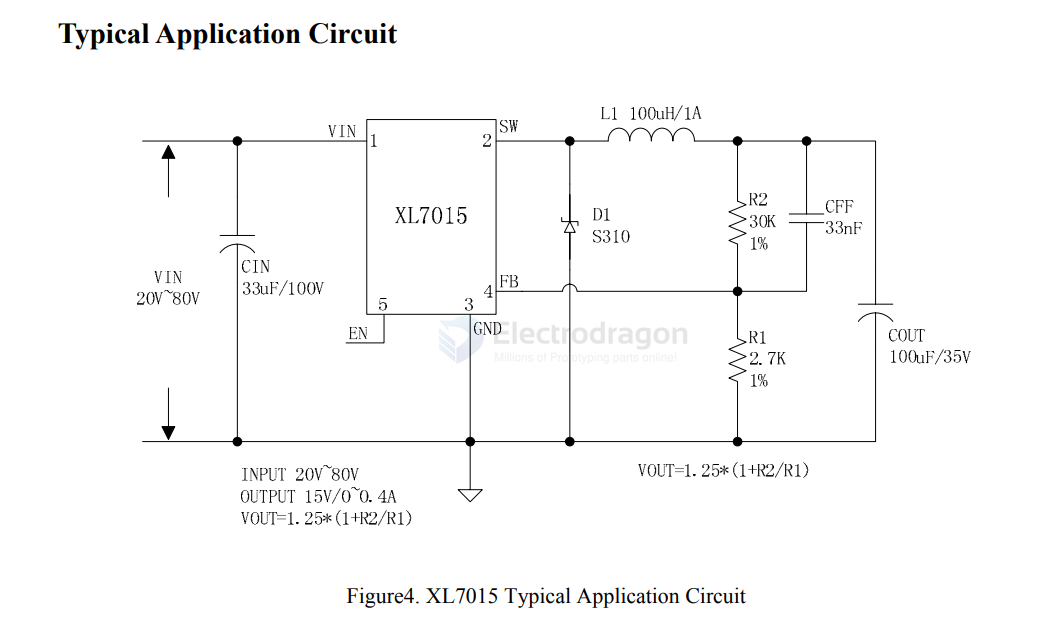

- 47UH or 100UH 1A
- 33UF/100V
- 100UF/35V
- S310
- 30K / 2.7K
33NF
