The XL6009 regulator is fixed frequency PWM Boost (step-up) DC/DC converter, capable of driving 5A switching current with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work.
Features
- Wide 3.6V to 36V Input Voltage Range
- 1.25V reference adjustable version
- Fixed 400KHz Switching Frequency
- Maximum 5A Switching Current
- SW PIN Built in Over Voltage Protection
- Excellent line and load regulation
- EN PIN TTL shutdown capability
- Internal Optimize Power MOSFET
- High efficiency
- Built in Frequency Compensation
- Built in Thermal Shutdown Function
- Built in Current Limit Function
- Available in SOP8 package

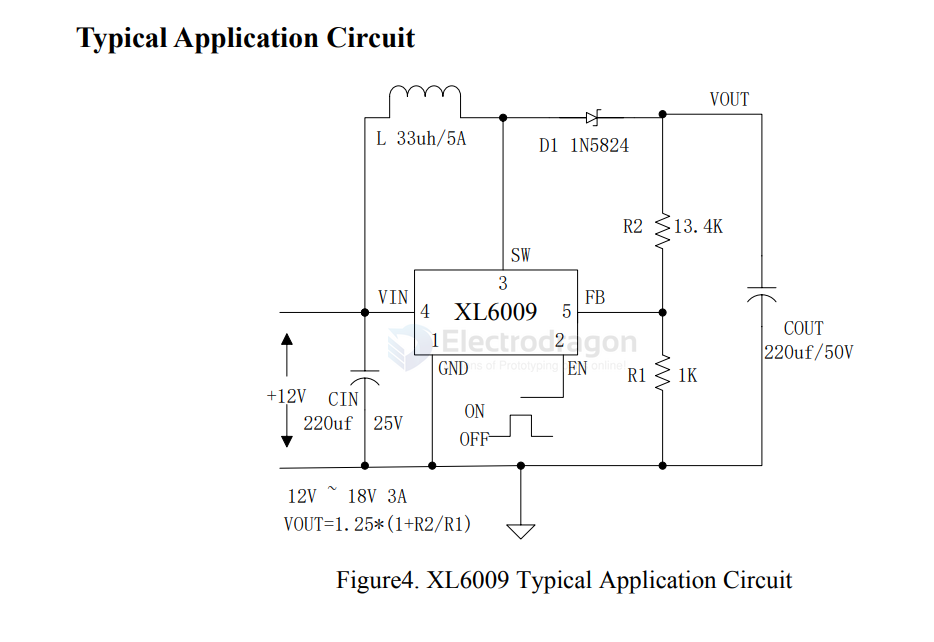

SCH
